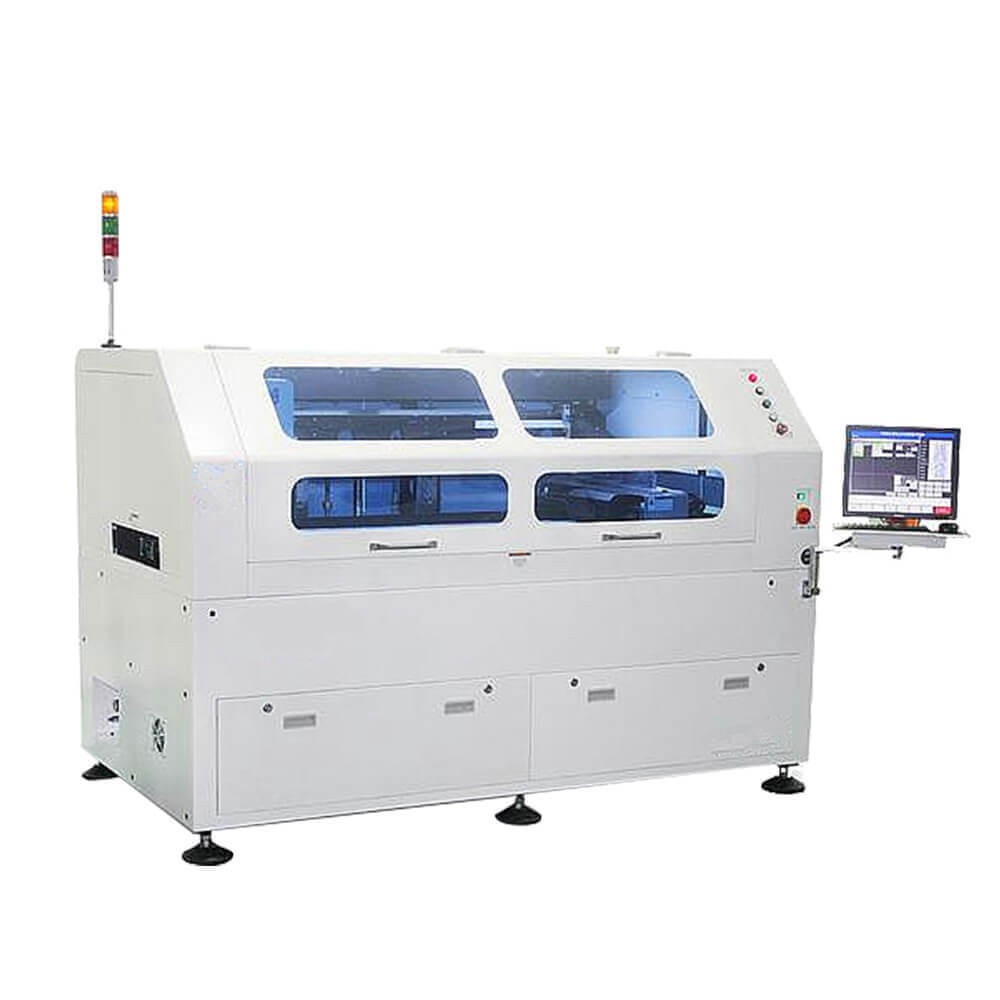

Automatic 1200mm SMT Solder paste printer

Power Supply: AC:220±10%,50/60HZ
Control Method: PC Control
PCB Size/Max:1200*340mm
Weight Approx:1500Kg
Product description: Automatic 1200mm SMT Solder paste printer

Automatic 1200mm SMT Solder paste printer

1. Product Functions
F-1200 a high accuracy lengthen printing robot designed for screen printing or stencil printing in SMT industry.
2. Product Features
a) Support wide spectrums of PCB size from 50mm x 50mm to 1200mm x 340mm and PCB thickness from 0.6mm to 6mm.
b) High printing resolution:
1. High positioning accuracy, repeat positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing
c) Automatic control improves production efficiency, controls quality and saves production cost:
1. Automatic stencil positioning;
2. Automatic PCB position calibrating.
3. Automatic adjustment of squeegee pressure;
4. Automatic printing;
5. Automatic stencil cleaning (dry-type, wet-type);
d) Adopt company independently developed suspended print head with programmable pressure adjustment. Support on-line real time pressure feedback and automatic squeegee pressure balancing.
e) Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
f) Multi-functional PCB positioning and clamping system, for convenient fast and accurate PCB positioning.
g) Upward and downward visual positioning.
h) Built-in image processing system;
i) Support 2D, SPC functions.
3. Applicable pitches of Components
a) SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
b) IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball 0.2 mm.
c) Printing size?80mm x 50mm ~1200 mm x 340 mm;
d) PCB thickness: 0.6 mm ~ 6 mm
e) FPC thickness: less than 0.6 mm (excluding jig)
4. Applicable PCB Types
Applicable to PCB types of LED, mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, space flight and aviation, as well as production and processing of general electronics products

Specification

* The following data is measured under environment temperature of 25 ? and humidity of 60%.

Items		Parameters
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Printing Speed/Cycle Time		<15s (Exclude Printing & Cleaning)
Products Changeover		<5Min
Screen Stencil Size/Min		1100mm300(Standard)?730mm300mm(Optional, pressing plate on guide rail shall be replaced)
Screen Stencil Size/Max		1500mm*750mm
Screen Stencil Thickness		20mm ~ 40mm
PCB Size/Min		80*50mm
PCB Size/Max		1200*340mm
PCB Thickness		0.8~6mm
PCB Warpage Ratio		1%Based on diagonal length?
Bottom of Board Size		15mm (distance from pins to PCB)
Edge of Board Size		3mm (distance before PCB clamping)
Transport High		900±40mm
Transport Direction		Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed		50-1200mm/sec programmable control
Board Location	Support System	Magnetic pin/Side support block/Flexible automatic pin?optional?
	Clamping System	Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting
Print head		Programmable motor driven print head (pneumatic control print head: optional)
Squeegee Speed		10~200mm/sec
Squeegee Pressure		0-15kg programmable control
Squeegee Angle		60°(Standard )/55°/45°
Squeegee Type		Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee .
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning Method		Dry-type, wet-type, optional vacuum-type
Table Adjustment Range		X:±10mm;Y:±10mm;?:±2°
Type of Fiducial Mark		Standard geometry shape of fiducial point, bonding pad / stencil hole
Camera System		Single digital camera with upward/downward vision system
Air Pressure		4~6Kg/cm2
Air Consumption		About 0.07m³/min
Control Method		PC Control
Power Supply		AC:220±10%,50/60HZ 1? 1.5KW
Machine Dimensions		2220(W) 1220(D) 1500(H)mm (excluding the height of indicating lighthouse)
Weight		Approx:1500Kg
Operation Temperature		-20°C ~ +45°C
Operation Humidity		30%~60%
