Max PCB size (X x Y) 450mm x 350mm
Voltage: 220V
Dimension L（1140mm）x W（1400mm）xH（1480mm)
Weight:1000Kg
Product description: Automatic Solder paste printer GD450+, Max PCB size (X x Y) 450mm x 350mm, Voltage: 220V, Dimension L（1140mm）x W（1400mm）xH（1480mm), Weight:1000Kg

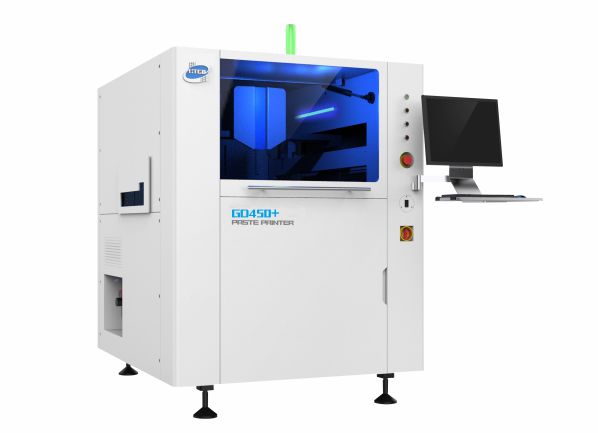

Automatic Solder paste printer GD450+
Automatic Solder paste printer GD450+
Full Automatic Online SMT solder paste Stencil printer GD450+,Sold big amount in the Market, Good quality is already certificated.
GD450+™ Specificataion | |
PCB Parameter | |
Max PCB size (X x Y) | 450mm x 350mm |
Min PCB size (Y x X) | 50mm x 50mm |
PCB Thickness | 0.4mm~14mm |
Warpage | Max. PCB Diagonal 1% |
Max PCB weight | 10Kg |
PCB margin gap | 3 mm(conveyor belt PCB/frame touching width) |
Max bottom gap | 15mm |
Conveyor Speed | 1500mm/s(Max) |
Converyor height | 900±40mm |
Conveyor direction | L – R、R – L、L – L、R – R |
Conveyor method | Single rail |
PCB fixing method | Software adjustable pressure elastic side pressure (options: 1, bottom holistic suction vacuum;2, bottom multi-point area vacuum; 3, edge locking substrate clamping) |
PCB support Method | Magnetic thimble,equal high block,vacuum suction cavity（option：Grid-Lok） |
Printing Parameter | |
Printing head | Linear motor type close loop printing head |
Stencil frame size | 370mm x 470mm~737 mm x 737 mm |
Max printing area (X x Y) | 450mm x 350mm |
scraper type | steel scraper/rubber scraper(45°/55°/60) |
scraper length | 220mm~500mm |
scraper height | 65±1mm |
scraper thickness | 0.25mm Diamond-like carbon coating |
Printing method | Single or dual scraper |
Mould release length | 0.02 mm 至 12 mm |
Printing | 0 ~ 200 mm/s |
Printing Pressure | 0.5kg -10Kg |
Printing length | ±250 mm(from center) |
Cleaning system | |
Cleaning method Vacuum Dry Cleaning-Vacuum Wet Cleaning-Dry Cleaning (Programming Control) | |
Cleaning direction forth-back,Back and forth cleaning (programmed control) | |
Camera Parameter | |
Imaging area (FOV) | 6.4mm x 4.8mm |
Platform adjustment range | X,Y:±7.0mm,θ:±2.0°. |
Datum point type | Standard shape reference point (see SMEMA standard), pad/hole |
Camera System | Single camera, up/down single imaging vision system, geometric matching positioning |
Function Parameter | |
Repetitive accuracy of image calibration | ±10.0um @6 σ，Cp more than 2.0 |
Printing Repetition Accuracy | ±20.0um @6 σ，Cp more than 2.0 |
Cycle time | Less than 7s |
Product changing time | Less than 5 mins |
Equipment | |
Power Supply | AC220V±10%,50/60HZ,15A |
Air supply | 4~6Kg/cm2, 10.0mm tube |
Operation System | Windows XP |
Dimension | L（1140mm）x W（1400mm）xH（1480mm） |
Weight | 1000Kg |
Temperature humidity control system（Option） | |
Temperature Control Range | 23±3℃ |
Humidity Control Range | 45～70%RH4 |
Keyword:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.<br data-filtered="filtered" style="box-sizing: border-box; font
