8 heating zones
dual rail conveyor
Weight Approx:2760kg
Dimension 5520*1680*1530mm
Product description: China 8 zones Dual Rail SMT Reflow Oven KTR-800D, 8 heating zones, dual rail conveyor, Weight Approx:2760kg, Dimension 5520*1680*1530mm

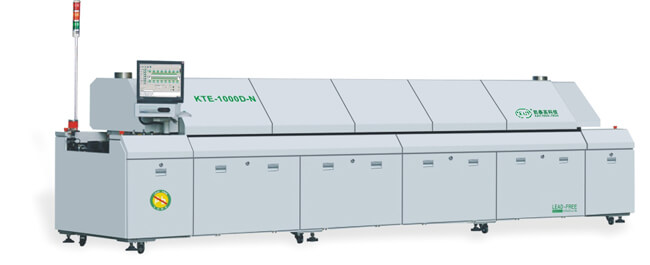

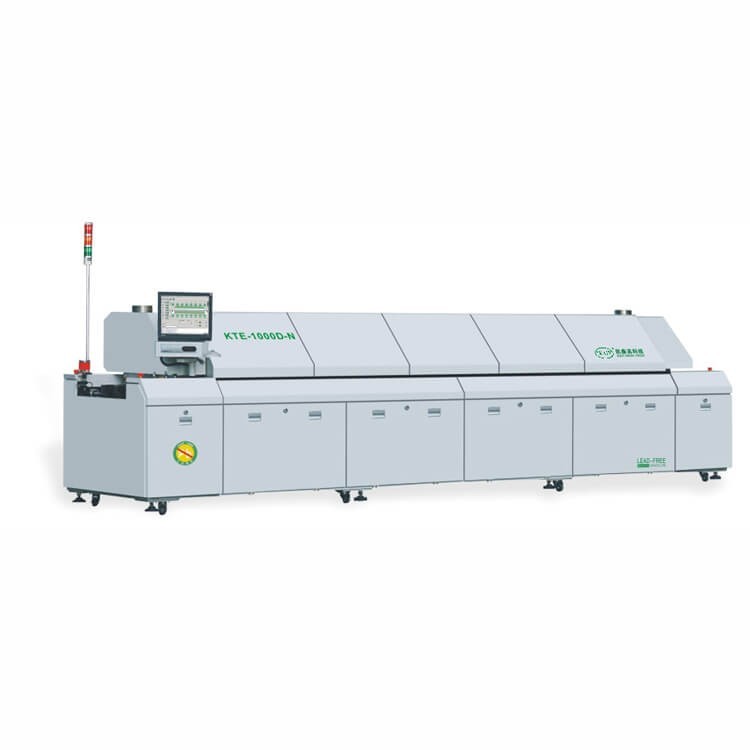

China 8 zones Dual Rail SMT Reflow Oven KTR-800D
China 8 zones Dual Rail SMT Reflow Oven KTR-800D
Features:

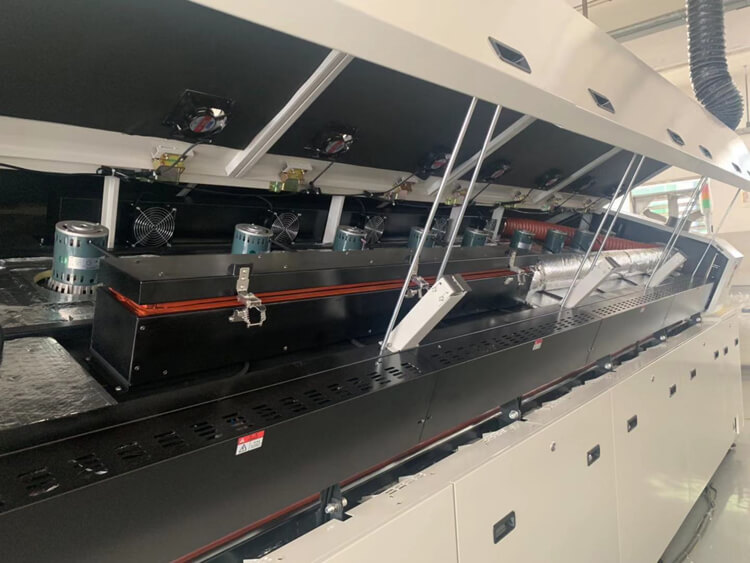

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be
reached to 150 PPM.
6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.
KTR-800D | Control | Industrial computer | Industrial computer |
Heating zones qty. | Top 8, bottom 8 | Cooling zones qty. | Top 3, bottom 3 |
Heating zone length | 3110mm | Rectifying plate | Thick copper plate |
Weight | Approx:2760kg | Dimension | 5520*1680*1530mm |
Exhaust capacity | 11㎡/min×2 | Color | Grey |
Control system | |||
Electricity supply | 3P 380V/220V 50/60HZ | Temp. control range | Room temp.～300℃ |
Total power | 67KW | Temp. control accuracy | ±1℃（static state） |
Start power | 32KW | Temp. control method | PID +SSR drive+ PLC |
Consumption power | 10KW | PCB temperature deviation | ±1.5℃ |
Speed control | 3 Inverters adjust | Data save | All profiles can be saved |
Warm up time | Apprx.30minute | Abnormal alarm | High, low temp. alarm |
Conveying system | |||
Rail structure | 2 sectional rails | Rail fixed method | Front fix |
Chain structure | Stainless steel, stuck-free type | Conveying height | 900±20mm |
PCB Max. width | 50-400mm | Conveying method | Mesh+ chain+ rail |
Component height | Top/bottom 30mm | Conveying speed | 300-2000mm |
Conveying direction | Left to right | Lubrication | Automatic |
Cooling system | |||
Cooling method | Forced air cooling | ||
Heating features | |||
Heating zones | Top 8,bottom 8（3110mm）can meet the need of the peak lead-free technique. | ||
Cooling zones | After cool down by forced air, PCB temp. is ≤70℃ at the exit. | ||
Warm up time | From the normal temp. to set temp, approximate 30 minutes. | ||
Warm up sequence | Warm up from two side, save the power and time | ||
Profile transfer time | ＜15min | ||
Heating zone temp. control accuracy | ±1℃ | ||
PCB temp. deviation | ±1℃ | ||
Empty to full load heat balance respond time | ≤20 s | ||
Keyword:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
