Classic Navigator SMT Stencil Printer

Max PCB：510*510mm
PCB weight ≤3kg
1320mm(L)*1690mm(W)*1510mm(H)
Weight:1000Kg
Product description: Classic Navigator SMT Stencil Printer Fully Automatic, Max PCB：510*510mm, PCB weight ≤3kg, size:1320mm*1690mm*1510mm(H), Weight:1000Kg

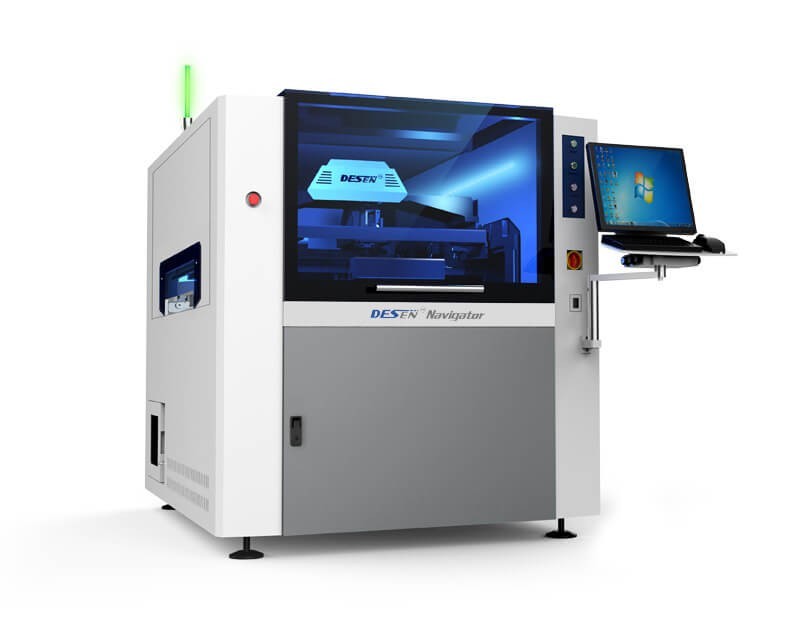

Classic Navigator SMT Stencil Printer

Automatic visible screen printer Navigator

●A pioneer in printing industry

Product features：

▲The whole machine is fully controlled by servo system；

▲Automatic pressure feedback system；

▲Multifunctional image processing system；

▲High precision UVW closed loop platform；

▲Intelligent PCB holding device；

▲Automatic steel mesh positioning module；

▲Excellent expansibility；

▲User-friendly operation interface；

Specification ：
High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~510mm x 510mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Precision	printing precision	≥2 Cpk@±25μm@,6σ
	Repeat printing	≥2 Cpk@±10μm@,6σ
	Cycling time	7s
Screen frame	screen frame dimension	470370mm-900900mm
	Screen frame fixation	air cylinder
	Screen frame adjustment	automatic
Platform	platform adjustment range	X:±4mm Y:±6mm
Platform	Platform adjustment angle	Z:±2°
PCB	PCB printing size	Min5050mm Max510510mm
	PCB thickness	0.4mm-5mm
	PCB weight	≤3kg
	PCB warping	maximum warping 7mm (including base plate )
Transmission	transmission direction	L→R,L→L，R→L，R→R
	Transmission speed	100-1500mm/s programmable adjustment
	Transmission width	50-340mm
Demould	Demould method	First use scraper, then demould, demould then use scraper, maintain pre-pressure for demould (surface demould, line demould)
	Demould speed	0.1-20mm/s
	Speed distance	0mm-3mm
Work condition	voltage	220V，±10%，single phase 50/60Hz
	Power	3kw
	Air pressure	0.45-0.6MPa
	Gas consumption	0.5ml/s
Safety performance	insulation resistance	1KV/3MΩ
	Ground resistance	≤0.1Ω
	Operation noise	≤87dB
External dimension	1320mm(L)1690mm(W)1510mm(H)
