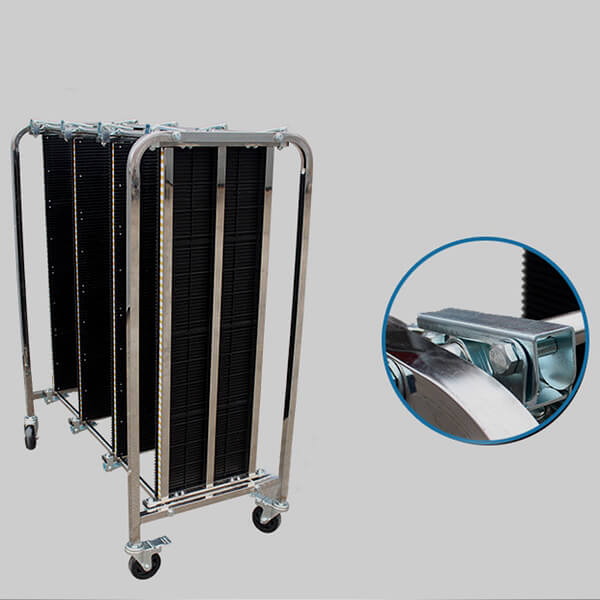

Customized PCB Storage Trolley

Customized PCB Storage Trolley

Customized PCB Storage Trolley

Product Specifications:
1. External dimensions: Customized
2. number of columns available: 3 columns
3. Each column can be stored PCB plate: 100-200PCS
4. guide groove: Vertically insert
A. groove depth: 5mm
B. Width: 5mm
C. slot length: 630mm
D: layer distance: 10mm
5. Surface resistance: 106-109Ω

6. Main Material: 201 stainless steel pipe and PP conductive plate
7. Material Specifications: 25 * 25,25 * 13, O 22
8. Bearing weight: 150KG
9. each bearing weight: 50KG
10. Casters Dimensions: 4 inches of rubber conductive wheels

11. anti-static measures: conductive castors and conductive chain
12. Tube Thickness: 0.9mm ± 8c
13.PP Thickness: 10mm
14. average length of each column can be put: 280mm ± 10mm
15. flapper practice: injection
16. Affordable temperature: 60 ℃

Anti-static SMT rack, electrostatic frame, anti-static PCB storage turnover, PCB turnover box

SMT rack is also called PCB collection box. It is widely used in automatic loading and unloading machines.

It is resistant to acids and alkalis. It is resistant to oil, high temperature, non-toxic and odorless.

It can be used to hold PCB boards. It is easy to clean and the circuit board is easy to turn. Stacking Neat,

easy to manage. Its reasonable design, excellent quality, applicable to the factory in the transport.

Distribution. Storage. Circulation processing and other links. SMT rack can be with a variety of logistics

Containers and workstations for all types of Warehouse, production site and other occasions

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;

Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
