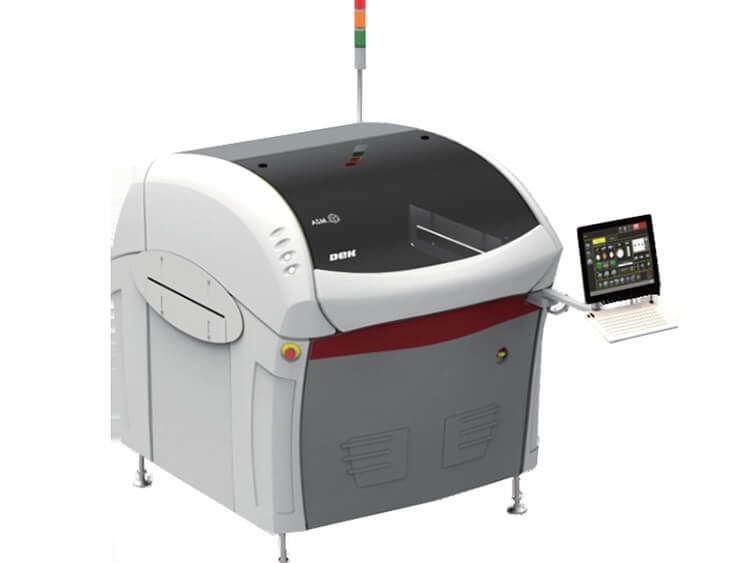

DEK Galaxy SMT Stencil Printer

Maximum printing surface： 510 mm* (X) x 508.5 mm (Y)
Printing speed: 2 mm/sec to 300 mm/sec
Weight: Approx. 680 kg
Product description: DEK Galaxy SMT Stencil Printer, Maximum printing surface： 510 mm* (X) x 508.5 mm (Y), Printing speed: 2 mm/sec to 300 mm/sec, Weight: Approx. 680 kg

DEK Galaxy SMT Stencil Printer

DEK Galaxy:
The ideal solution for semiconductor, hybrid and high-end SMT applications
The DEK Galaxy platform brings the efficiency and precision of modern printing methods to the world of semiconductor production and hybrid-packaging applications. It sets new industry standards in advanced semiconductor packaging with regard to yield, repeat accuracy and efficiency.
High-precision linear drives and powerful camera systems provide the basis for the extremely fast and accurate performance of the
DEK Galaxy. With transport options for highly precise wafer pallets and the printing of substrates with innovative tooling technologieslike DEK Virtual Panel Tooling (VPT), the DEK Galaxy satisfies even the most demanding requirements. And with the DirEKt Ball Placement option, you can realize higly precise wafer printing and screen printing processes, from very precise wafer bumping to the direct setting of solder balls down two diameters of 0.2 mm.

Get in touch with us. Our semiconductor process experts will gladly put together a DEK Galaxy configuration that is optimized for your specific needs. Thanks to the machine’s modular design, you will always be flexible and able to find the right solution as your requirements change.
If you need a highly precise and exceptionally powerful printer platform for high-end SMT applications in the ultra-fine-pitch range, the DEK Galaxy is the solution of choice.

Options:

Dual-speed conveyor motor

Semi-automatic stencil loading

Adjustable Width Stencil Mount

New all purpose clamping system

Vacuum support pins

Vacuum substrate support

DEK Grid-Lok

Lateral clamping (snuggers)

Camera-independent substrate stop

Temperature Control Solution

Conv. for heavy substrates (up to 6 kg)

USC Vacuum pump VF25/35

Interchangeable Under Stencil Cleaner

Sqeegee Pressure Feedback

High Throughput Conveyor (HTC)

Paste roll height monitor & APD

Siplace Pro

Setup Center

Line Monitor

DEK Stinger (Glue dispenser)

Cyclone Duo – Ultra High Speed USC

DEK Topside Reference System TRS

Technical Data:

Machine Features	DEK Galaxy
Repeat accuracy	± 12.5 μm @ 2.0 Cpk (± 6 sigma)#
Printing accuracy	± 12.5 μm @ 2.0 Cpk (±6 sigma)#
Standard cycle time	7 sec
Maximum printing surface	510 mm* (X) x 508.5 mm (Y)
Maximum substrate size	620 mm (X)* x 508,5 mm (Y)#
Frame variants	305 mm to 736 mm (12″** to 29″), max. frame thickness: 38 mm
User interface	Touchscreen, keyboard and trackball, DEK Instinctiv V9TM software
Camera	HawkEye® 1700
Squeegee adjustment	Software controlled, motorised with closed loop feedback
Stencil positioning	Automatic loading incorporating squeegee drip tray
Stencil alignment	Motorised via actuators X, Y, and Theta
Printing speed	2 mm/sec to 300 mm/sec
Fiducial recognition	Automatic fiducial recognition, programmable from 0.1 mm to 3 mm
Understencil Cleaning	Cyclone high speed cleaner, fully programmable with wet/dry/vacuum wipe with external solvent tank
Compressed air supply	5-8 bar at 5 liters/minute
Power supply	110 V to 240 V ±10 %, 50/60 Hz
Weight	Approx. 680 kg
# DEK’s machine accuracy and repeatability qualification is certified by 3rd party and undertaken using production environment process variables. Print Speeds, Print Pressures, Rising Table and Camera Movements are included in the process capability figure.* For print area up to 600 mm long please contact the Product Manager.
