Nitrogen soldering process
dual rail conveyor
Weight Appx.:3060Kg
Dimension 6300*1680*1530mm

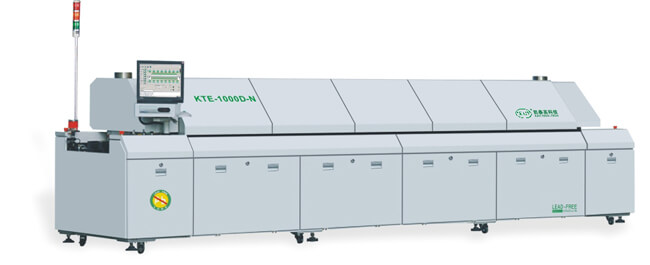

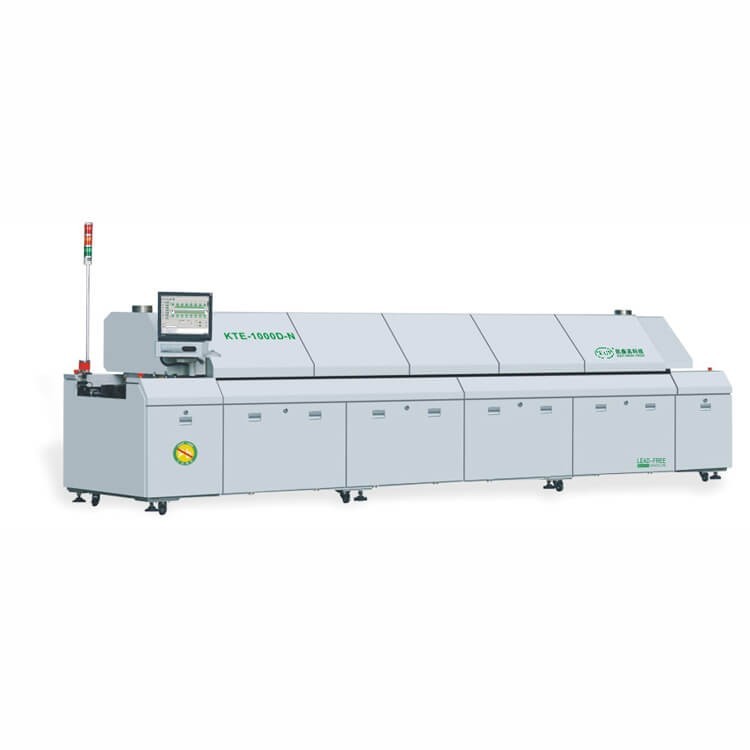

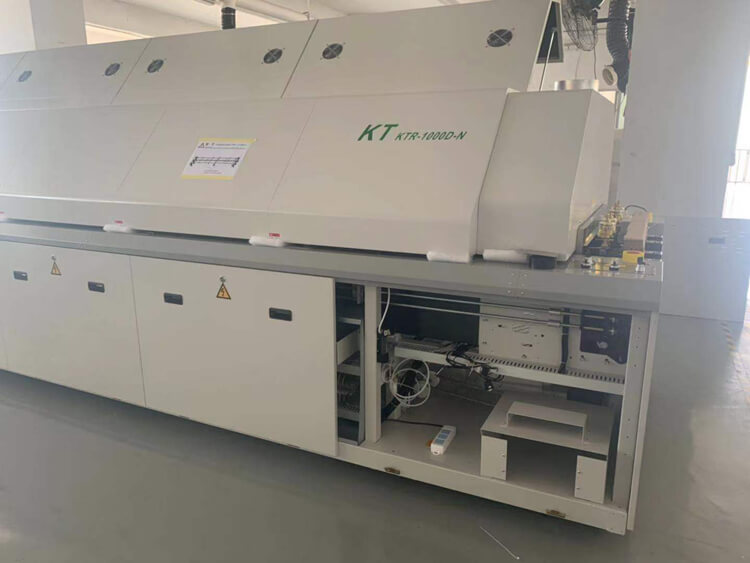

Product description: 10 Zones Dual Rail Nitrogen SMT Reflow Oven KTR-1000D-N Manufacturer, Nitrogen soldering process, dual rail conveyor, Weight Appx.:3060Kg, Dimension 6300*1680*1530mm
Dual Lane SMT Reflow Oven
Dual Lane SMT Reflow Oven
Features:
1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be
reached to 150 PPM.
6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.
8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can
make the nitrogen concentration range from 5-200ppm.
9. The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency
for customers.
Machine Specification | |||
Model | KTE-1200 | Control | Industrial computer |
Heating zones qty. | Top 12, bottom 12 | Cooling zones qty. | Top 2 |
Heating zone length | 4675mm | Current plate structure | Galvanized plate |
Weight | Apprx.:2930KG | Dimension | 6960*1360*1490mm |
Exhaust capacity | 12㎡/min×2 | Color | Grey |
Control system | |||
Electricity supply | 3P 380V/220V 50/60HZ | Temp. control range | Room temp.～300℃ |
Total power | 99KW | Temp. control accuracy | ±1℃（static state） |
Start power | 44KW | Temp. control method | PID +SSR drive |
Consumption power | 12KW | PCB temperature deviation | ±1.5℃ |
Speed control | Inverter adjust | Data save | All profiles can be saved |
Warm up time | Apprx.30minute | Abnormal alarm | High, low temp. alarm |
Conveying system | |||
Rail structure | 2 Sectional structure | Rail fixed method | Front fix |
Chain | Stuck-free type | Conveying height | 900±20mm |
PCB Max. width | 50-400mm | Conveying method | Mesh+ chain |
Component height | Top/bottom 25mm | Conveying speed | 300-2000mm |
Conveying direction | Left to right | Lubrication | Automatic |
Cooling system | |||
Cooling method | Forced air cooling | ||
Heating features | |||
Heating zones | Top 12,bottom 12（4675mm）can meet the need of the peak lead-free technique. | ||
Cooling zones | After cool down by air, PCB temp. is ≤70℃ at the exit. | ||
Warm up time | From the normal temp. to set temp, approximate 30 minutes. | ||
Warm up sequence | Warm up from two side, save the power and time | ||
Profile transfer time | ＜15min | ||
Heating zone temp. control accuracy | ±1℃ | ||
PCB temp. deviation | ±1.5℃ | ||
Empty to full load heat balance respond time | ≤20 s | ||
