ERSA POWERFLOW N2 Wave Soldeirng Machine

ERSA POWERFLOW N2 Wave Soldeirng Machine

ERSA POWERFLOW N2 Wave Soldeirng Machine

Superior process stability even at maximum throughput
Precise and economical flux deposition through ability to program areas to be fluxed
Modular preheat configuration for flexible and reproducible heat transfer
Ideal solder nozzle combinations for all application requirements
Prolonged cleanliness on account of the continuous cleaning of the process gas
Energy and cost efficiency through intelligent heating and nitrogen control algorithms
Ease of maintenance because of excellent accessibility to all areas of the system
Robust, heavy duty, durable and automatically lubricated chain conveyor system
Individual trace interface for transparent production processes
Universal integration into existing peripheral equipment

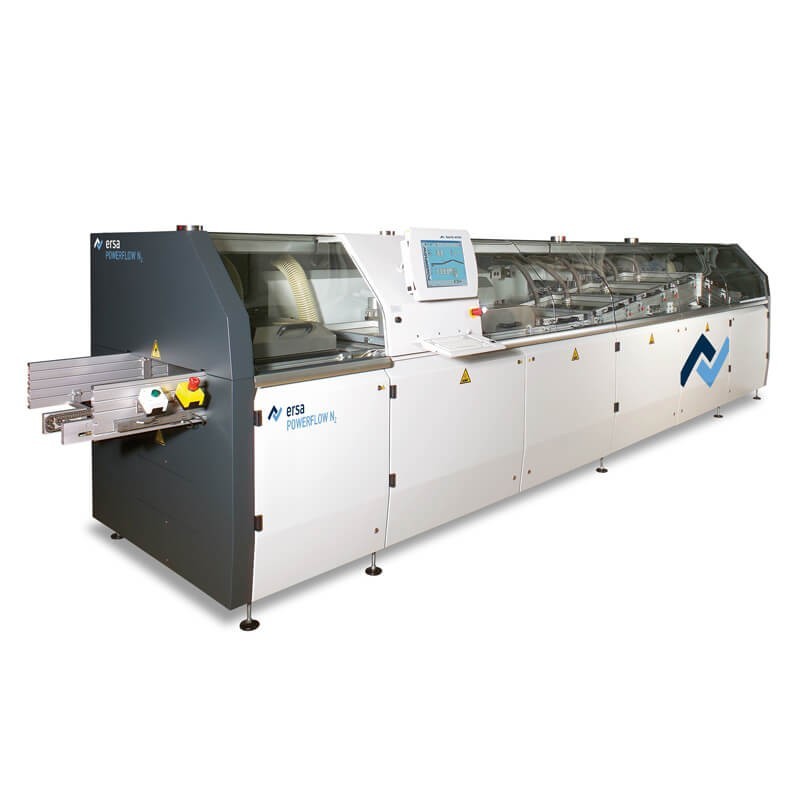

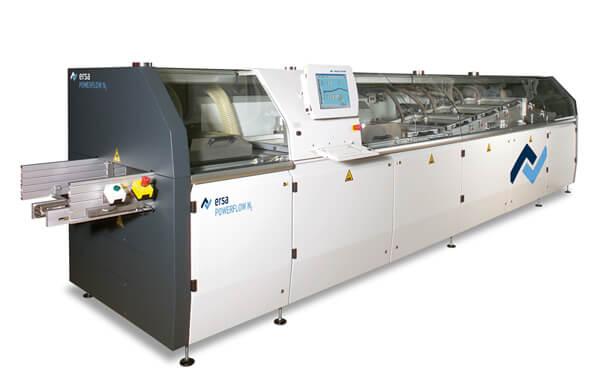

ERSA POWERFLOW N2 Wave Soldeirng Machine

With the POWERFLOW N2 Wave Soldering System, Ersa presents the ultimate solution for demanding lead-free wave soldering

processes. This high-end product is based on a system concept with numerous future oriented and intelligent solutions, which will

provide substantial added value to its users.

With its intelligent controls, the motor-driven fluxer is able to selectively flux specific portions of the printed circuit board. The modular, individually

configurable preheat concept ensures a high rate of heat transfer. A multitude of wave formers guarantee excellent solder result regardless of the

application. The robust tunnel design and the stable, welded frame underline the durability and the ease of access to the system for service.

Dimensions

Length from 5,700 to 7,900 mm
Width approx. 1,500 mm
Height approx. 1,500 mm

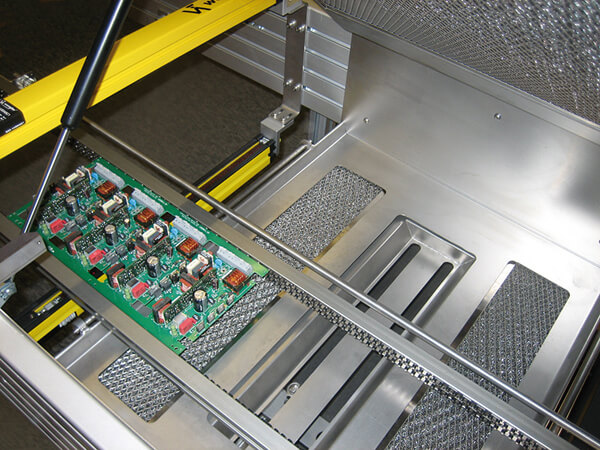

Conveyor systems
Type: finger conveyor, pallet conveyor
Maximum conveyor speed 3 m/min
Maximum working width up to 508 mm
Maximum PCB top side clearance up to 150 mm
Media supply
Nitrogen
Compressed air
Electrical power
Exhaust

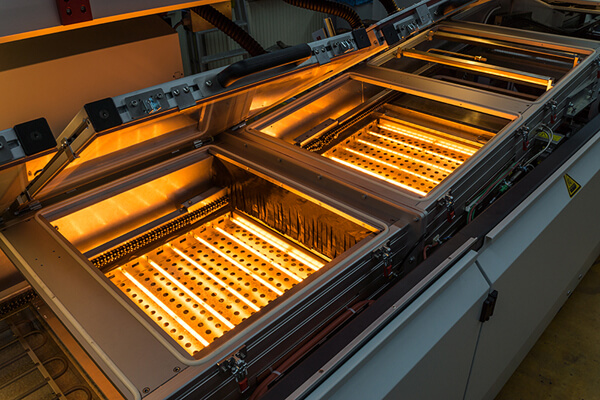

Preheating
Heat transfer by convection, medium wave radiation and short wave radiation
Individually configurable up to a preheat length of 3.2 m

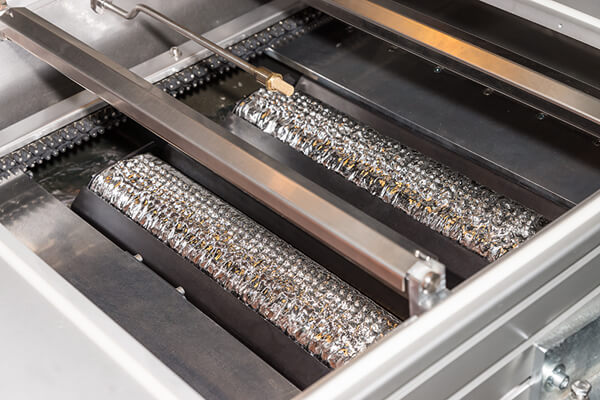

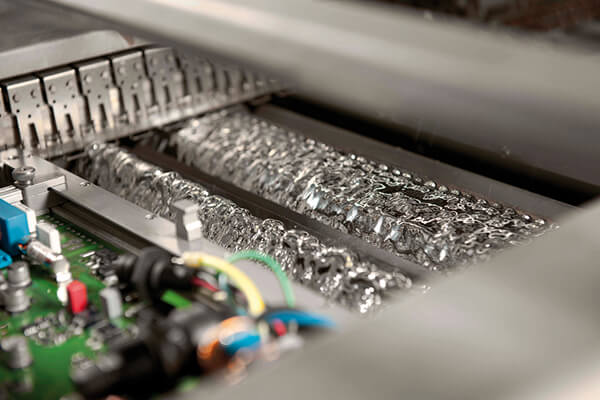

Solder module
Subject to the configuration, solder content is between 525 to 725 kg

Options:

Finger conveyor
Working width: either 330 / 400 / 508 mm
Maximum height of components, top of board 80 / 120 / 150 mm
Split conveyor
Programmable center support
Spray monitoring of the fluxer
Pyrometer control
Dual solder module for different alloys
Process gas cleaning
Traceability
