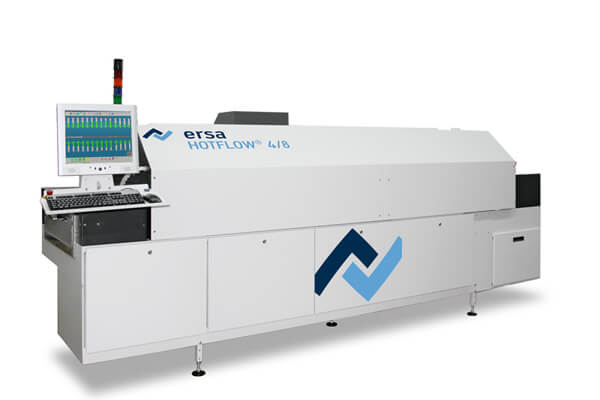

Ersa HOTFLOW 4/8 Reflow Oven

Ersa HOTFLOW 4/8 Reflow Oven

Ersa HOTFLOW 4/8 Reflow Oven

• High performing compact reflow system

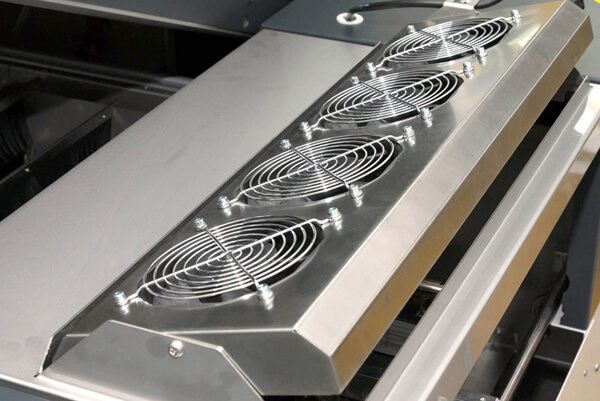

  Multi-stage cooling, both internal and external
  Efficient process gas cleaning system
  Low N2 consumption
  Auto Profiler for quick profile generation

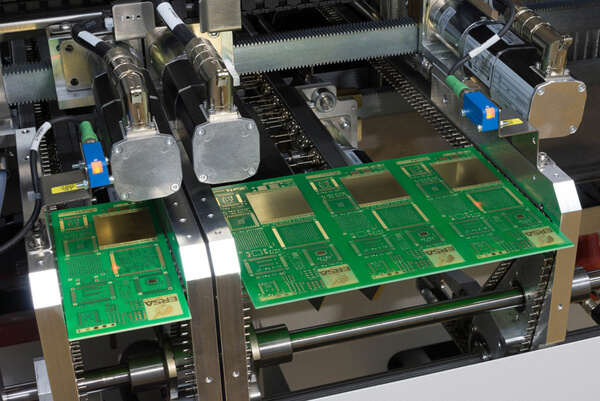

  Multi-track conveyor system available

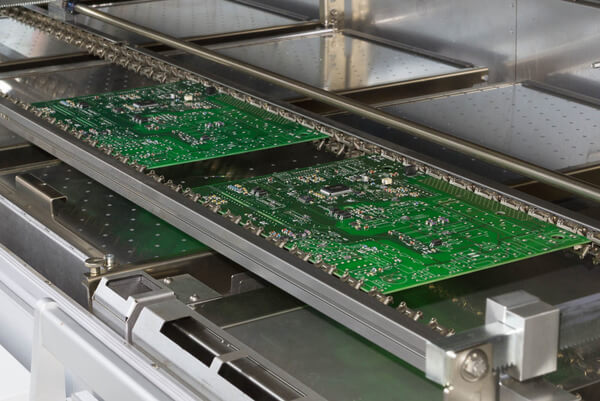

  Thermally invisible center supports
  Low energy consumption in continuous operation
  Process control software Ersa Process Control (EPC)
  Patented grip-conveyor system for flex circuits
  Energy-usage optimized fan motors with integrated frequency converters

Ersa HOTFLOW 4/8 Reflow Oven

The Ersa HOTFLOW 4/08 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated

and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater

 cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 3,905 mm
Width: 1,410 mm
Height: 1,350 mm
Weight app. 1,100 kg
Conveyor system
Working width: 45-560 mm, infinitely, automatically adjustable
Clear passage height: +32/-40 mm
Center support, infinitely, automatically adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with 3 / 4 / 5 mm pin length
Process zone
Process Length: 3,260 mm
Length Heated: 1,525 mm
Length Cooled: 1,735 mm
Heating system
Convection heating modules, 8 units in total
(Preheating up to 6 units, reflow zone 2 units)
Volumetric flow rate each module adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Cooling
3 level cooling zone with water back cooling
Electrical data
400 V, 3 Phasen, N, P, 50/60 Hz
Continuous output during operation: appr. 6-8 kW
Exhaust
Extraction capacity 2 stacks each 300-600 m3/h, monitored

Options:

• Pin-and-chain conveyors 3 / 4 / 5 mm pin length

• Pin-and-chain conveyors  with low-mass center supports

• Automatic width adjustment of conveyors and low-mass center supports

• Up to 2 tracks with low-mass center supports in system

• Patented grip conveyor system for flex boards

• For an oven with single track, low-mass tubular supports are available

• Operation possible with either ambient air or with nitrogen atmosphere

• Cooling available with either integrated or external cooling unit

• Cooling with either cooling unit or with local cold water connectio
