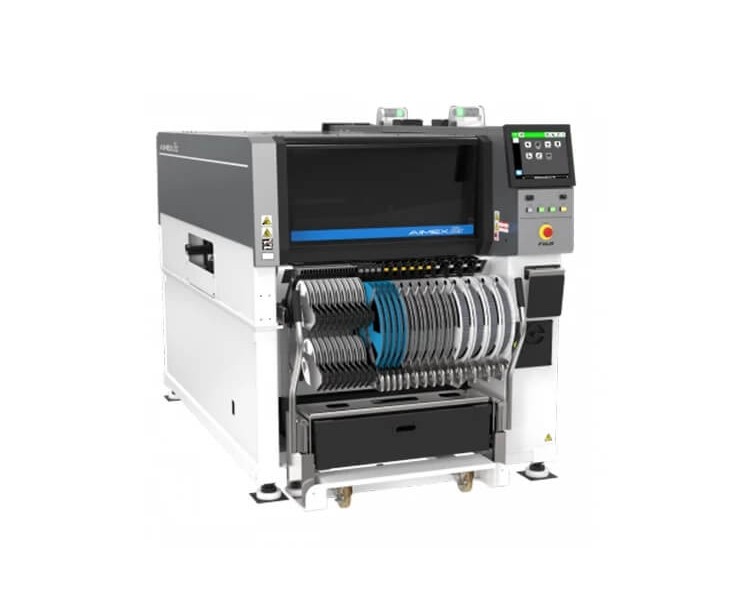

FUJI AIMEX III Pick and Place Machine

Place Accuracy:+/-0.025 mm
Board size:774 x 610 mm
Feeder inputs:max.130 8mm
Dimension: L: 1280mm, W: 2656mm, H: 1556mm
Product description: FUJI AIMEX III Pick and Place Machine, Place Accuracy:+/-0.025 mm, Board size:774 x 610 mm, Feeder inputs:max.130 8mm, Dimension: L: 1280mm, W: 2656mm, H: 1556mm

FUJI AIMEX III Pick and Place Machine

High speed FUJI SMT machine, FUJI pick and place machine, FUJI placement, better price welcome for details.

The AIMEX III is designed for component flexibility, PCB flexibility and production flexibility.
1. Production for Large Panels or Simultaneous Production of Two Models
The AIMEX III can support large panels up to 774 (L) x 710 (W) mm in size.
Simultaneous production of two different products is possible using our dual conveyor configuration machine. The AIMEX III also enables various production methods and supports a wide range of panel sizes.
2. Supporting 0402 (01005") to 74 x 74 mm with one head
Our DX head exchanges the dedicated tool in one action depending on the part size, from small chips to large odd-form parts. Also, using wide range nozzles together provides further efficient placement.
3. DynaHead Dynamic Exchange
The AIMEX III offers dynamic exchange during production to the best tool for the job. Borderless production is made possible using the DynaHead to dynamically exchange between 12-nozzle, 4-nozzle and single nozzle tools.
4. Minimizing the changeover count
Changeover time can be reduced by performing MFU batch changeover and by the machine having up to 130 slots for feeders which makes it possible to load all of the required parts.
5. Ramping up production smoothly
Automatic data creation and on-machine editing using a large touchscreen panel work to support ramping up new production and quick response to sudden changes to programs.

Specification of FUJI Placement Machine

Basic Specifications
PCB size(LXW)	48 x 48 mm to 774 x 610 mm (double conveyor)*
	48 x 48 mm to 774 x 710 mm (single conveyor)
	*Double conveyors can handle PCBs up to 330 (W) mm. PCBs larger than 330 (W) mm must be produced by changing the double conveyor to single lane production mode.
Feeder capacity	Up to 130 (8 mm tape)
Placing accuracy (Fiducial mark based referencing)	H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00
	H08M: +/-0.040 mm (3σ) cpk≥1.00
	OF: +/-0.050 mm (3σ) cpk≥1.00
	H02F: +/-0.025 mm (3σ) cpk≥1.00
	H01: +/-0.030 mm (3σ) cpk≥1.00
Machine dimensions	L: 1280mm, W: 2656mm, H: 1556mm
Placing heads
	H24G	H08M	H02F	H01	OF
Nozzle quantity	24	8	2	1	1
Throughput(cph)	37,000 cph (Productivity priority mode, under development)	13000	7300	4200	3000
	35,000 cph (Standard mode)
Part size (mm)	03015 mm to 5 x 5	0603 (0201")to45 x 45	1608 (0603")to 74 x 74 (32 x 180)		1608 (0603")to 74 x 74 (32 x 180)
	Height:Up to 2.0 mm	Height:Up to 13.0 mm	Height:Up to 25.4 mm		Height:Up to 38.1 mm
Part presence check	○	○ (H08MQ)	○		x
Parts supply	○	○	○		○
Tape
Stick	x	○	○		○
Tray	x	○	○		○
DynaHead(DX)
Nozzle quantity	12	4		1
Throughput(cph)	27,000 Parts presence function ON: 26,000	12000		5800
Part size (mm)	0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less	1608 (0603")to 15 x 15		1608 (0603")to 74 x 74 (32 x 100)
	Height: Up to 3.0 mm	Height:Up to 6.5 mm		Height:Up to 25.4 mm
Placing accuracy	+/-0.038 (+/-0.050) mm (3σ) cpk≥1.00	+/-0.040 mm (3σ) cpk≥1.00		+/-0.030 mm (3σ) cpk≥1.00
(Fiducial mark based referencing)
Part presence check	o	x		o
Tape	o	o		o
Parts supply Stick	x	o		o
Tray	x	o		o
