Name: SMT Reflow Oven
Heating zones: 6,8,10,12
Heating method: Hot Air
Usage: SMT Assembly line
Product description: JT Reflow Oven JTR series JTR-600/JTR-600-N, JTR-800/JTR-800-N, JTR-1000/JTR-1000-N, JTR-1200/JTR-1200-N

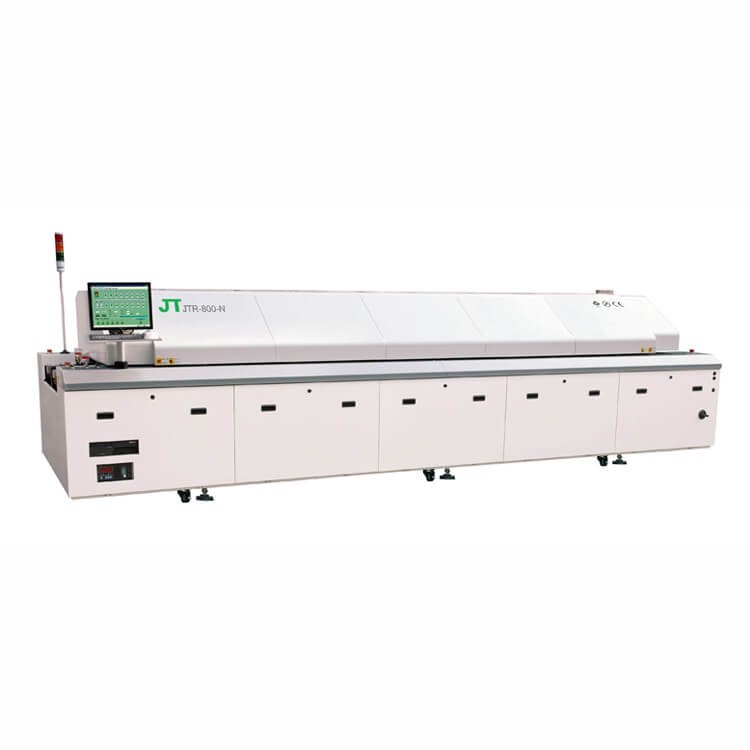

JT Reflow Oven JTR series

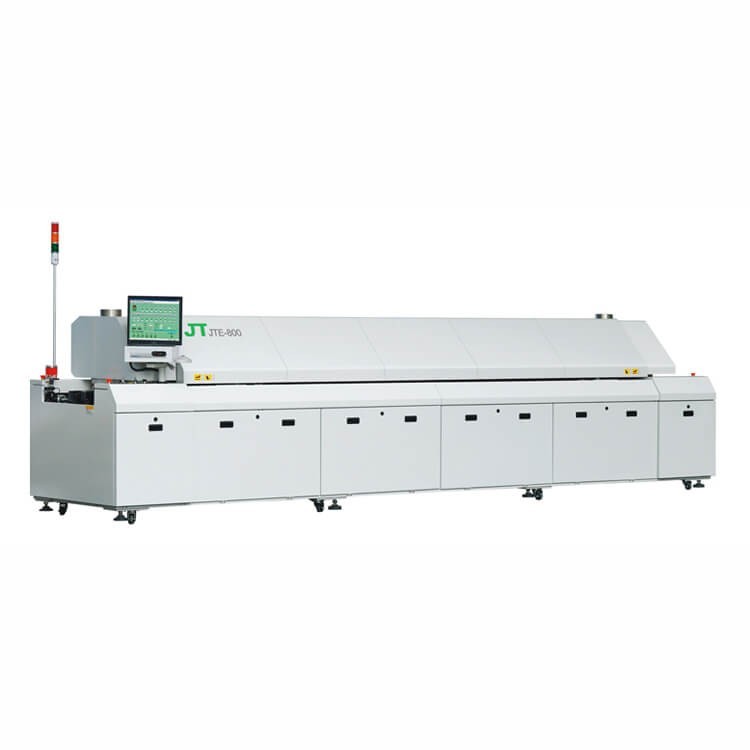

JT Reflow Oven JTR series

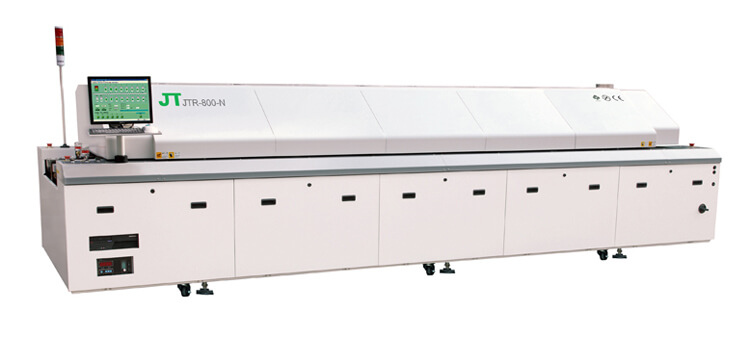

JT Reflow Oven JTR series JTR-600/JTR-600-N, JTR-800/JTR-800-N, JTR-1000/JTR-1000-N, JTR-1200/JTR-1200-N
Longer heating area makes higher production efficiency and throughput.
15% improvement of heat transfer efficient resolved more complicated and larger PCB lead-free technology.
Strengthened main sweep keep rail no transverse deformation, no board stuck and dropped.
Chamber designed for fully protecting and closing to keep no leaving of N2, the lowest content of O2 can be 150ppm.
Low consumption of N2, 20-22 m³/H of N2 reflow in O2 content is 300-800PPM condition.
MODEL | JTR-600/JTR-600-N | JTR-800/JTR-800-N | JTR-1000/JTR-1000-N | JTR-1200/JTR-1200-N |
Outside Dimension（L*W*H） | 4190 x1430 x1530 | 5520 x1430 x1530 | 6300 x 1430 x 1530 | 7050 x 1430 x 1530 |
Weight | 1850KG | 2400KG / 2500KG | 2700KG / 2800KG | 3000KG / 3100KG |
Number Of Heating Zones | Up /Bottom 6 | Up /Bottom 8 | Up /Bottom 10 | Up /Bottom 12 |
Length Of Heating Zones | 2295mm | 3110mm | 3890mm | 4640mm |
Number Of Cooling Zones | 1(Cool Air Conversion) | Up 3 / Bottom 3 (Cool Air Conversion) | ||
Exhaust Volume | 10 M3 / min x 2 ( Exhausts) | |||
Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz ) | |||
Electric Power Required | 48KW / 51KW | 64KW / 67KW | 80KW / 83KW | 93KW / 97KW |
Power For Warm Up | 24KW / 26KW | 30KW / 32KW | 36KW / 38KW | 40KW / 42KW |
Power Consumption | 6.5KW / 7KW | 9KW / 10KW | 10KW / 11KW | 11KW / 12KW |
Warming Time | Approx. 20 minu | Approx.25 minu | ||
Keyword:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
