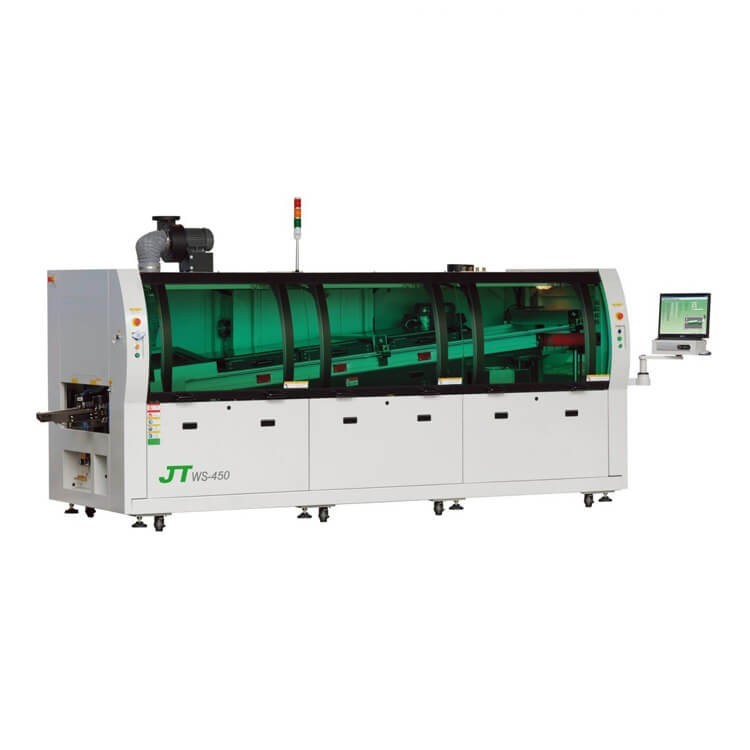

JT Wave Soldering Machine WS-450

No. of preheating zones:4
Preheating length: 2480 mm
Control system: PC + PLC
Dimensions 4350(L) x 1600(W) x 1730(H) mm
Product description: JT Wave Soldering Machine WS-450, No. of preheating zones:4, Preheating length: 2480 mm, Control system: PC + PLC, Dimensions 4350(L) x 1600(W) x 1730(H) mm

JT Wave Soldering Machine WS-450

DESCRIPTION
Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio
Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs
Low tin slag amount of oxidation, new wave nozzle design, tin furnace has automatic access lifting function
Regional selective spray flux can save more than 70%
Free combination of preheating module can be arbitrarily chosen hot air and infrared preheating preheat diverse portfolio
Segmented transport rail design, 60 kg rail transport capacity, the maximum width of products through increased to 610 mm

SPECIFICATIONS

Dimensions	4350(L) x 1600(W) x 1730(H) mm
Power supply	3P 5 W, 380 VAC, 50/60 Hz, 63 A
Power	80 kW
Total power	45 kW
Working power	Approx. 12.5 kW
Control system	PC + PLC
No. of preheating zones	4
Preheating length	2480 mm
Preheating temp.	Room temp - 250°C
PCB size	50 - 450 mm
Height	Top: 120 mm; Bottom: 25 ± 5 mm
Speed	300 - 1800 mm/min
Entry height	750 ± 20 mm (Option: 900 ± 20 mm)
Conveyor angle	4 - 7°
Conveyor motor power	90 W 3P 220 VAC

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
