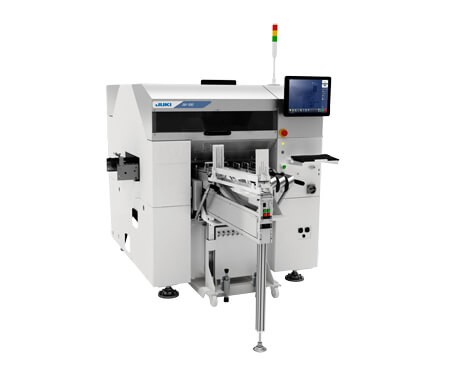

JUKI JM-100 Hybrid Placement Machine

Board size 410×360mm
Component Size: 0603～50mm
Placement Speed:16,000CPH
PCB Weight max.4kg
Product description: JUKI JM-100 Multi Task Platform Hybrid Placement Machine, Board size 410×360mm, Component Size: 0603～50mm, Placement Speed:16,000CPH, PCB Weight max.4kg

JUKI JM-100 Hybrid Placement Machine

Advancing versatility, quality and speed

Best in class speed.
Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
New "Takumi head" with multiple recognition heights
Component Feeding
Line control using JaNets software

Multi Task Platform JM-100
		L size board
Board size		410×360mm
PCB Weight		max.4kg
Component height		max30mm
Component Size	Laser recognition	0603～50mm
Component Size	Vision recognition	3mm～50mm
Insertion Speed（Insertion components）	Vacuum*2	0.6sec/part13*4
Insertion Speed（Insertion components）	grip	0.8sec/part23*4
Placement Speed(SMT）	Chip ( Optimum）	16,000CPH34
Placement Accuracy(SMT）	Laser recognition	±0.05mm（3σ）
Placement Accuracy(SMT）	Vision recognition*1	±0.04mm

* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.
