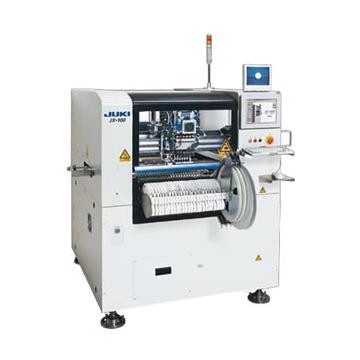

JUKI JX-100 Pick and Place Machine

Board size:Min. 50 × 50 ～ Max. 330 × 250 mm
Component size Min. 0603mm(0201 Inch) ～ Max. 33.5mm
Feeder inputs:Max. 30 8mm tape feeders, 60 with optional rear bank.
Placement speed:15,300CPH
Product description: JUKI JX-100 Pick and Place Machine,Board size:Min. 50 × 50 ～ Max. 330 × 250 mm,Component size Min. 0603mm(0201 Inch) ～ Max. 33.5mm,Feeder inputs:Max. 30 8mm tape feeders, 60 with optional rear bank.

JUKI JX-100 Pick and Place Machine

The machine combines high production capacity with its versatility at a reasonable cost. This system is best suited for a company starting out in surface mount. It is both easy to operate and compact, resulting in a smooth installation.

■ Superior Cost Performance
19,300CPH (Laser centering/Optimum) (0.187 sec/chip)
15,300CPH (Laser centering/IPC9850)
■ Superior Versatility
■ Reliable Quality
■ Easy Operation

Board size			Min. 50 × 50 ～ Max. 330 × 250 mm
Component size			Min. 0603mm(0201 Inch) ～ Max. □33.5mm
Component centering device			Laser centering (LNC60)
Placement speed (chip)	Chip	Optimum	0.187Sec./chip(19,300CPH)
		IPC9850	15,300CP

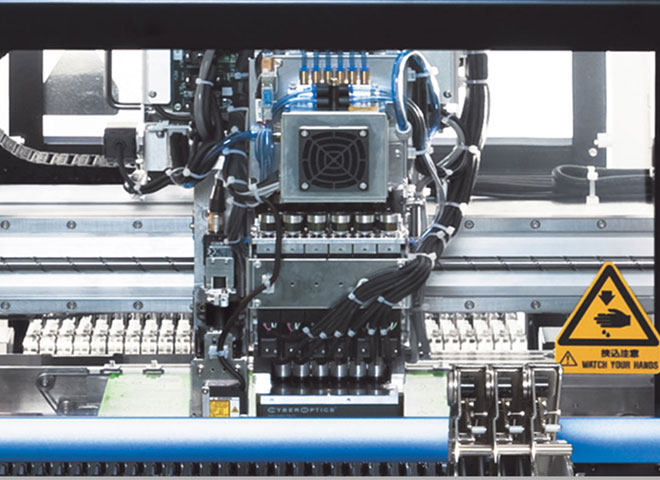

Single Gantry; 1 Head Per Gantry
Achieves high productivity while still being light and compact.

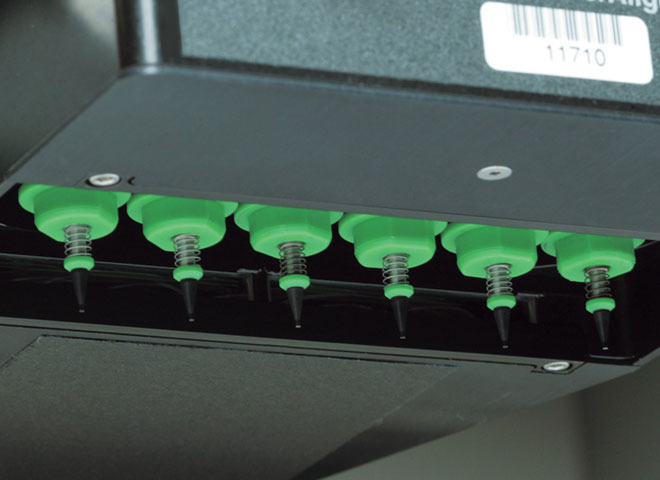

6 Nozzles per Gantry
Able to place chips from 0603 mm (0201 inch) to 33.5 mm.

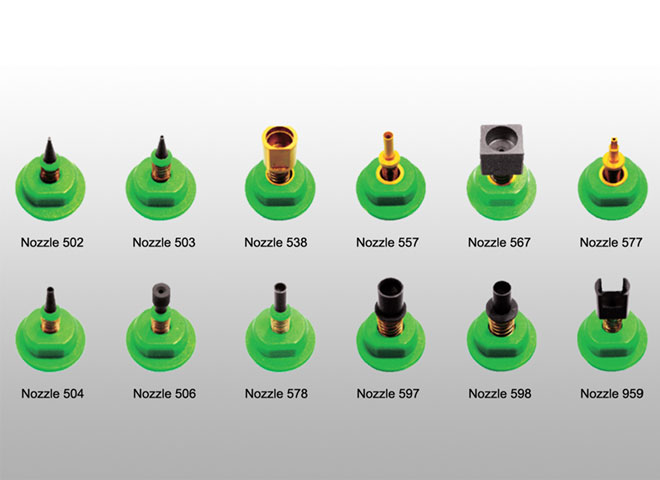

Nozzles for LED Components
Low cost placement solution for notebook PCs, LCD monitors and wide variety of lighting equipment.

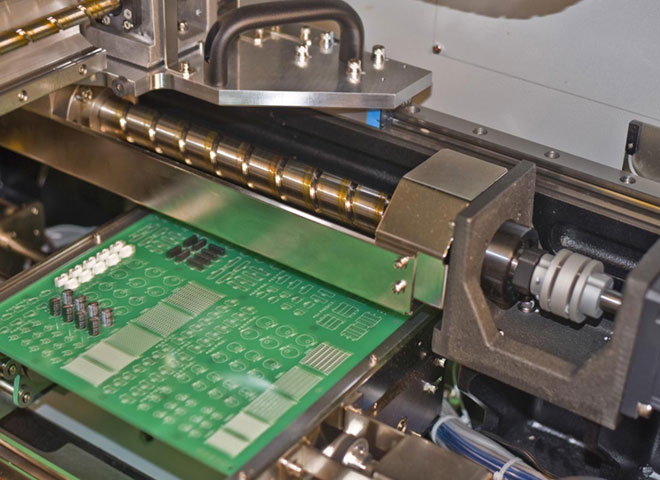

High Accuracy Low Noise Ball Screw Drive

High Accuracy Laser Align Component Centering

LNC60 laser centering
