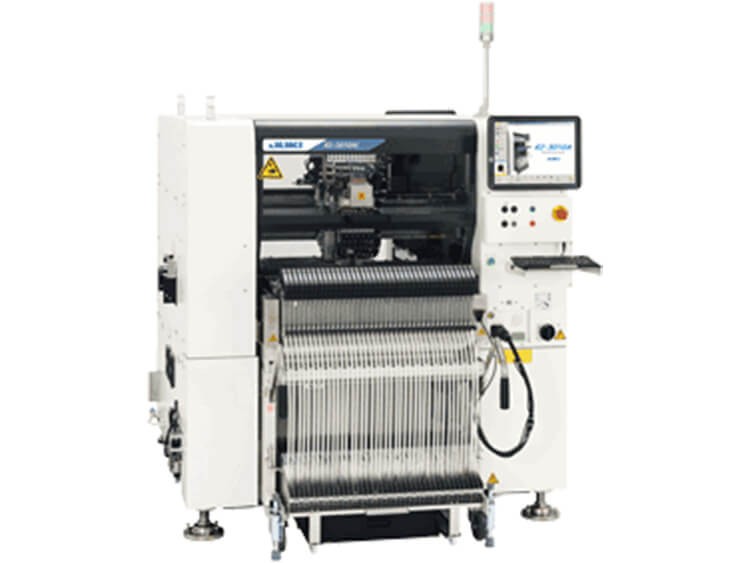

JUKI KE-3010A Pick and Place Machine

Applicable Components: 0402（01005）
Board size:330×250mm
Feeder inputs:160
placement capacity:23,500CPH
Product description: JUKI KE-3010A Pick and Place Machine,Applicable Components: 0402(01005),Feeder inputs:160,placement capacity:23,500CPH.

JUKI KE-3010A Pick and Place Machine

From 0402(01005) to 33.5mm square components

One multi-nozzle laser head (6 nozzles)

The use of electronic double tape feeders enables mounting of a maximum of 160 component types.

High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC. (option))

Longer sized PWB in X axis (option)

Board size	M size (330×250mm)		yes
	L size (4FFF10×360mm)		yes
	L-Wide size (510×360mm) *1		yes
	XL size (610×560mm)		yes
	Applicability to long PWB (M size)*2		650×250mm
	Applicability to long PWB (L size)*2		800×360mm
	Applicability to long PWB (L-Wide size)*2		1,010×360mm
	Applicability to long PWB (XL size)*2		1,210×560mm
Component height	6mm		yes
	12mm		yes
Component size	Laser recognition		0402(01005) ~ □33.5mm
	Vision recognition	Standard camera	3mm*3 ~ □33.5mm
		High-resolution camera	1.0×0.5mm*4 ~ □20mm
Placement speed	Chip	Optimum	23,500CPH
		IPC9850	18,500CPH
	IC *5		9,000CPH *6
Placement accuracy	Laser recognition		±0.05 mm (±3σ)
	Vision recognition		±0.04mm
Feeder inputs			Max.160 in case of 8mm tape (on a Electric double tape feeder)*7

*1 L-Wide size is optional
*2 Applicability to long PWB is optional.
*3 When using MNVC. (option)
*4 KE-3010A ： When using both high-resolution camera and MNVC. (option)
*5 Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*6 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010A.
*7 When using Electric double tape feeder EF08HD.
* PWB size XL will be KE-3010
