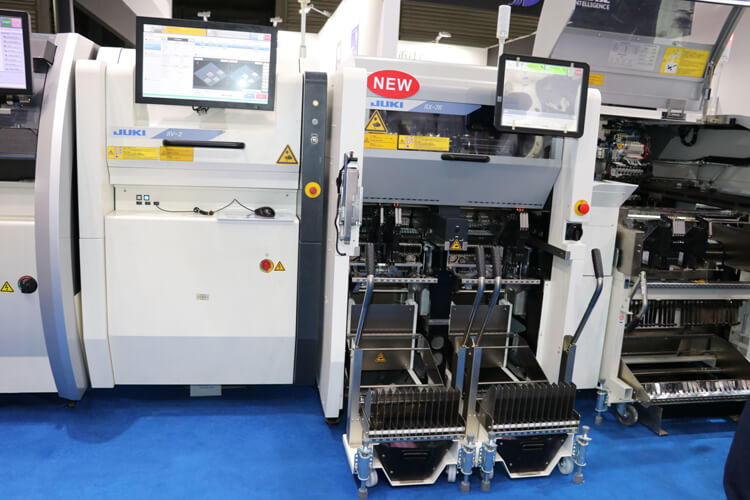

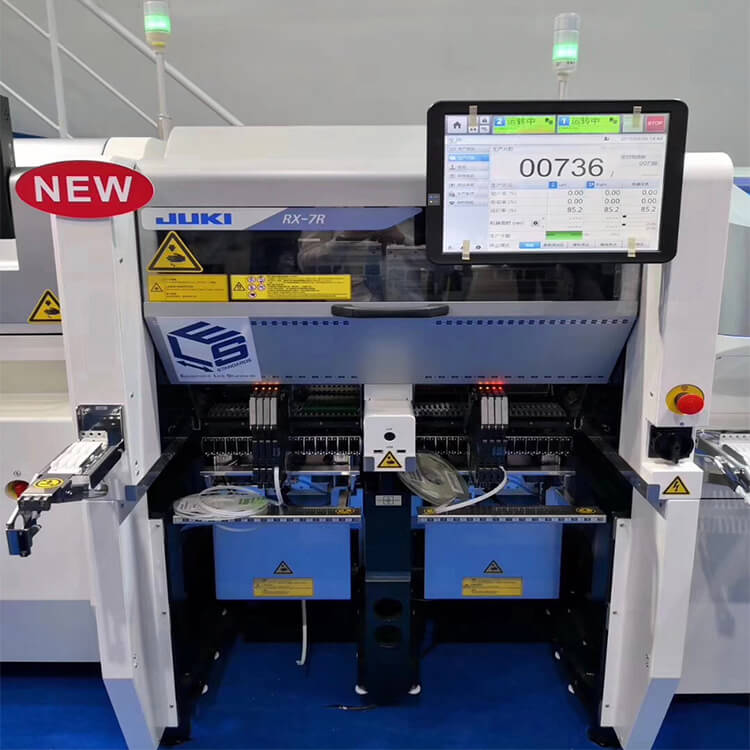

JUKI RX-7R Pick and Place Machine

Applicable Components: 03015 chip ~ 25mm square element
Board size:510mm×450mm
Feeder inputs:max 76
placement capacity:75,000CPH
Product description: JUKI RX-7R Modular Pick and Place Machine,Applicable Components: 03015 chip ~ 25mm square element,Board size:50 X 50 ～ 510mm×450mm, Feeder inputs:max 76,placement capacity:75,000CPH

JUKI RX-7R Pick and Place Machine

Component placement speed (optimal conditions): Chip components 75,000 CPH
Element size: 03015 chip ~ 25mm square element
P16 Rotary head enables high-speed, high-density placement of extremely small components
P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components
Space-saving design with a width of 998mm
Supports dual-track production
By combining the placement head, the optimal production line can be constructed according to the production variety.
High production performance achieved by the unique planetary placement head and parallel dual placement head structure
Compatible with small IC components with 03015 chip to 25mm

High -Speed Compact Modular Mounter RX-7R
		(P16S×P16S head)	(P16S×P8 head)	(P8×P8 head)
Board size	Single lane conveyer	50×50~510mm×450mm
	Single lane conveyer Single lane mode	50×50~510mm×450mm
	Single lane conveyer Dual lane mode	50×50~510mm×250mm
Component height		3mm	3mm(P16S head)	10.5mm
			10.5mm(P8 head)
Component size		03015~5mm	03015~5mm(P16S head)	0603~25mm
			0603~25mm(P8 head)
Placement speed(Optimum)	Chip	75,000 CPH	54,900 CPH	34,800 CPH
	IC	-	6,400 CPH	12,800 CPH
Placement accuracy	Chip	±0.04mm(Cpk≥1)
	IC	-	±0.04mm
Feeder capacity		Up to 56
Power supply		3 phase AC200V,220V-430V
Apparent power		2.3kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		20L/ANR(during normal operation)
Machine dimensions (W x D x H)		998×1,895×1,530mm	998×1,895×1,530mm
Mass (approximately)		about 1,820kg
