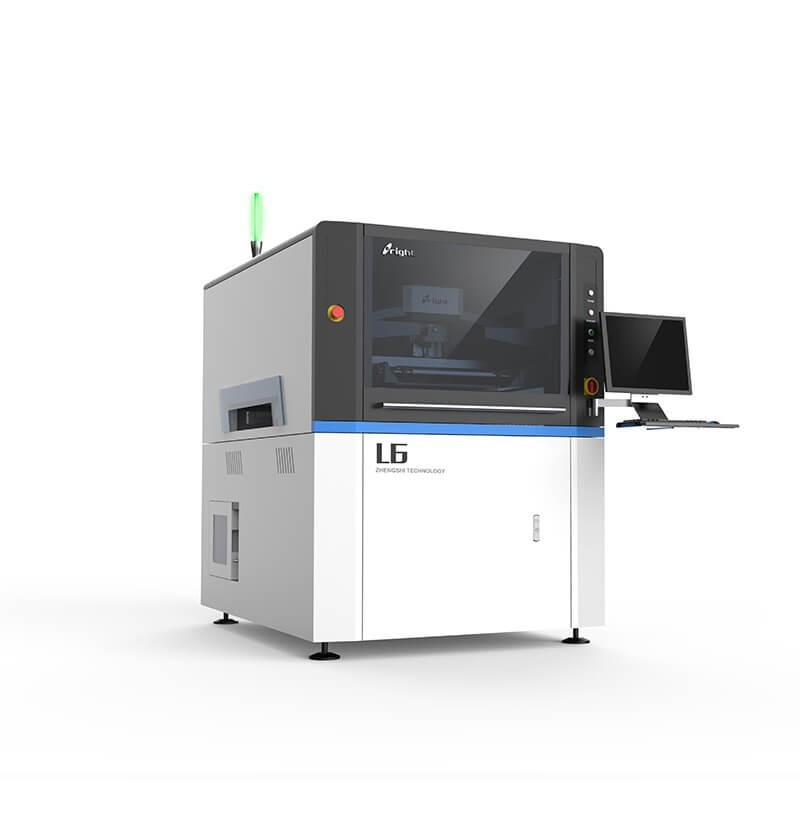

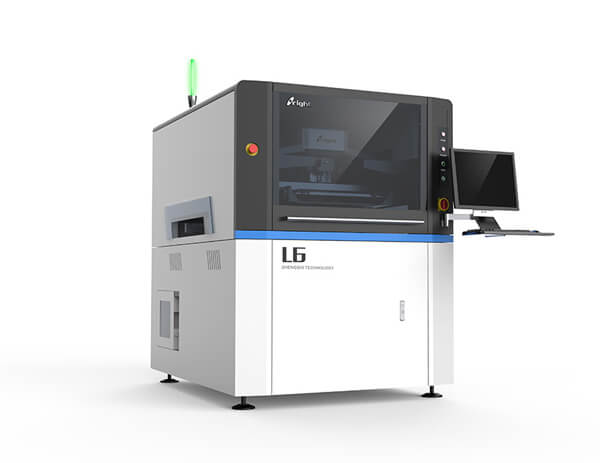

L6 SMT Stencil Printer Fully Automatic

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification ：
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~650mm x 340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Specification parameters
