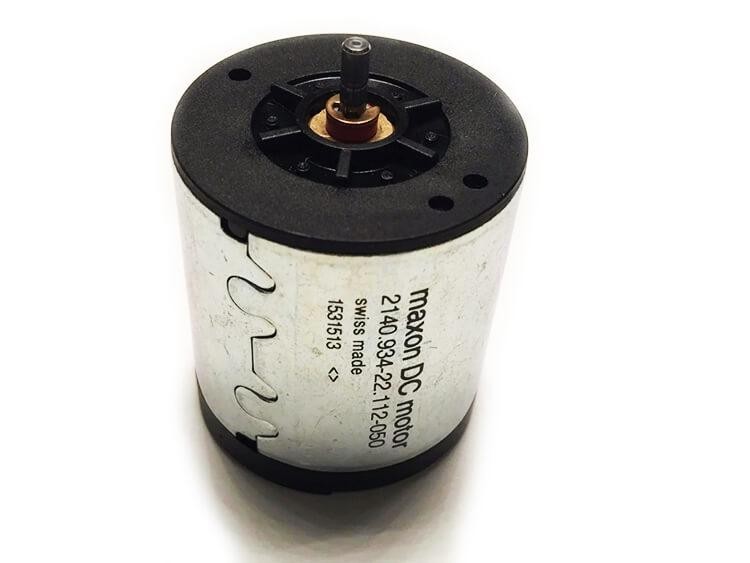

Mydata Conveyor Motor Maxon DC 2140.934-22.112-050 (1531513)

Mydata Conveyor Motor Maxon DC 2140.934-22.112-050 (1531513)
SMT Spare Parts
Mycronic Spare Parts
Delivery time: 1-3 days
Product description: Mydata Conveyor Motor Maxon DC 2140.934-22.112-050 (1531513)

Mydata Conveyor Motor Maxon DC 2140.934-22.112-050 (1531513)

Values at nominal voltage
Nominal voltage	12 V
No load speed	4080 rpm
No load current	12.3 mA
Nominal speed	2390 rpm
Nominal torque (max. continuous torque)	13.6 mNm
Nominal current (max. continuous current)	0.499 A
Stall torque	32.9 mNm
Stall current	1.19 A
Max. efficiency	81 %
Characteristics
Terminal resistance	10.1 ¢„¦
Terminal inductance	1.27 mH
Torque constant	27.8 mNm/A
Speed constant	344 rpm/V
Speed / torque gradient	125 rpm/mNm
Mechanical time constant	33.3 ms
Rotor inertia	25.4 gcm ‚²
Thermal data
Thermal resistance housing-ambient	10.4 K/W
Thermal resistance winding-housing	8.8 K/W
Thermal time constant winding	45.8 s
Thermal time constant motor	988 s
Ambient temperature	-20...+65 ‚°C
Max. winding temperature	+85 ‚°C
Mechanical data
Bearing type	sleeve bearing
Max. speed	6400 rpm
Axial play	0.3 - 0.2 mm
Radial play	0.025 mm
Max. axial load (dynamic)	0.5 N
Max. force for press fits (static)	50 N
(static, shaft supported)	700 N
Max. radial load	2.5 N, 5 mm from flange
Other specifications
Number of pole pairs	1
Number of commutator segments	7
Number of autoclave cycles	0
Product
Weight	190 g
