Weight: 1300KG
Dimensions: 4300(L)*1400(W)*1560(H)
spray fashion: step motor+ST 8 nozzle
Heating zone Length: 2000mm
Product description: Nitrogen wave soldering machine Manufacturer Supplier China factory,we produce real nitrogen wave soldering machine oxygen level less than 1000PPM.

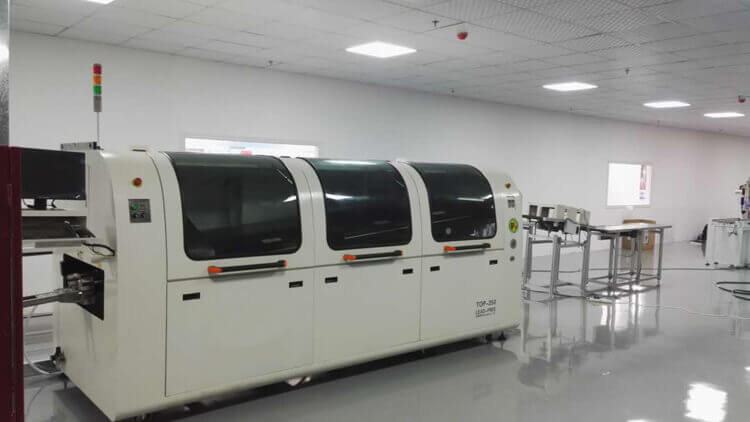

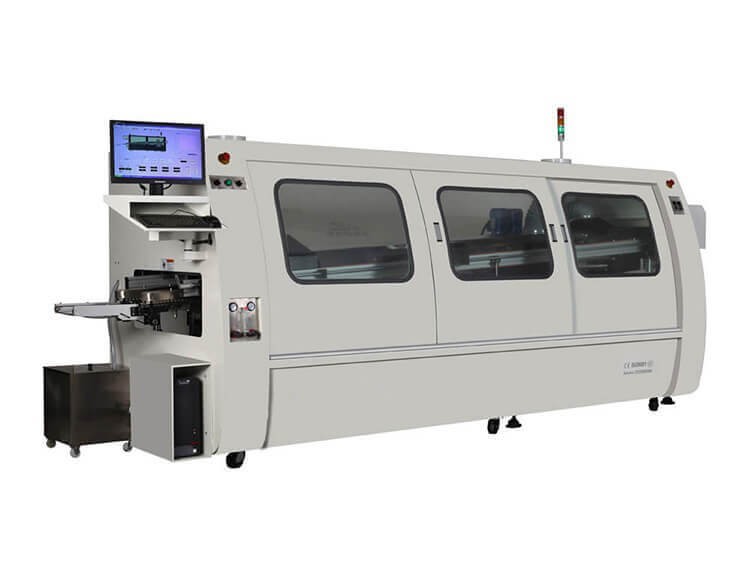

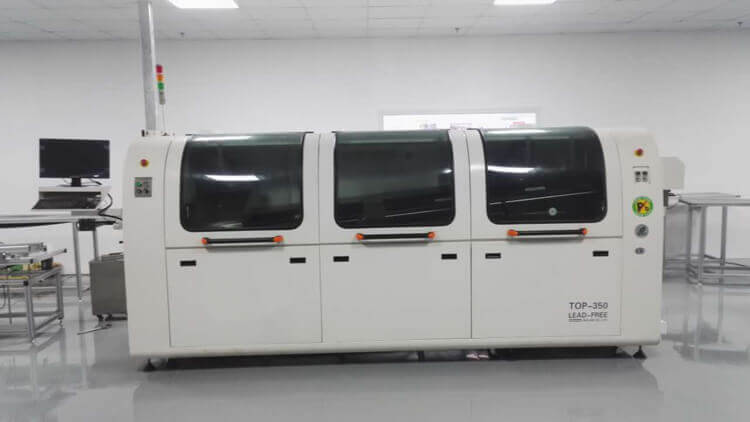

Nitrogen wave soldering machine Manufacturer Supplier China factory Top350
Nitrogen wave soldering machine Manufacturer Supplier China factory Top350
We produce the real nitrogen wave soldering machine that sealed the solder pot in the whole heating passage, that can really leave the nitrogen in the wave soldering machine heating and soldering passage, and leave the nitrogen level around 1000ppm. Other Supplier's whose nitrogen wave soldering machine that solder pot didn't in the soldering passage can't reach this level and that kind nitrogen wave soldering machine is really no use.
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by step motor. PLC controlled, accurate and reliable.
4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled infrare pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
13. Nitrogen Structure (optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 1000ppm.
Model No. | Top-350 |
Number of heating zones | 4 |
Length of heating zones | 2000mm |
Total/steady consumption | 30KW/8-11KW |
Air supply | 0.5MPa |
Preheating style | Infrare heater |
Preheating consumption | 220V 8KW |
Control method | PC +PLC |
Range of temp. set-point | Room temperature---300ºC |
Preheating time | About 10-15mins for setting 150ºC |
Solder Application | Lead-free |
Solder pot capacity | 400KG |
Solder pot temperature | 300ºC |
Solder pot material | Cast Iron Ceramic Coating |
Heater consumption | 380V 8KW |
Solder temp. control method | PID+SSR |
Wave motor consumption | 1KW 220V |
Wave height Control | Inverter |
Solder melting time | About 180mins for setting 250ºC |
PCB width | 60-450mm |
Product clearance | Top 120mm(option 160mm) Bottom 15mm |
Conveyor speed | 0-2000mm/min |
Process height | 750+/-20mm |
Conveyor direction | L- R (R - L optional) |
Conveyor Inclination | 4-7 º |
Process width adjustment | Auto |
UPS | Option |
Nitrogen structure | Option |
Flux pressure/capacity | 3-5 bar/6.5L |
Weight | 1300KG |
