max solder temperature 350℃
solder pot capacity 15 KG
dimension L1280mm X W1400mm X H1650mm
Net weight 380KG

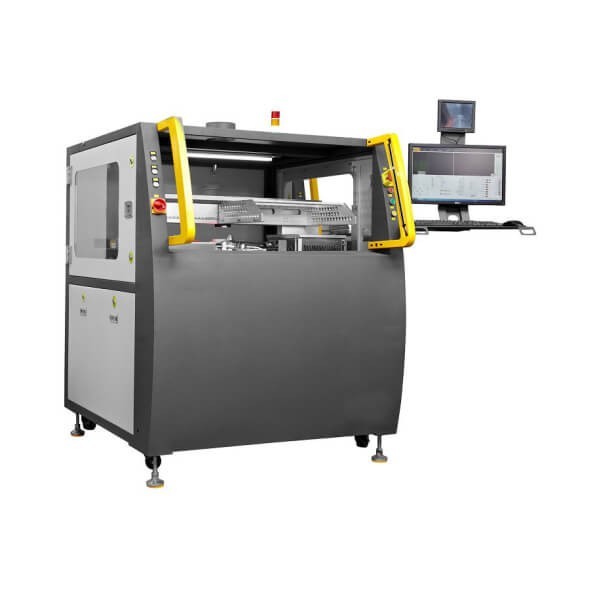

Product description: Offline Selective Soldering Machine max solder temperature 350℃ solder pot capacity 15 KG dimension L1280mm X W1400mm X H1650mm Net weight 380KG
Offline Selective Soldering Machine
Offline Selective Soldering Machine
Offline Selective wave soldering machine is on economic solutions for the selective soldering process, Cheap price:30000USD and you can got an idea
machine dealing with the small quantity selective soldering PCB. The producing speed around 1minites/PCB.
selective wave soldering machine with automatic system and easy wave soldering process for led outdoor display
we not only have the standard wave soldering machine, but also have the selective wave solder machine which include online and offline!
Introduce:
1.More and more competition in the electronics market, to the electronic product manufacturing enterprises bring huge quality and cost pressures.Electronic
products production process of high density, miniaturization trend driving the rapid development of SMT technology, the traditional wave soldering process have
been unable to meet the needs of the few remaining perforation components of welding, and manual mode is difficult to for large heat capacity or fine pitch
components to realize high quality, high efficiency welding, the machinery, equipment and labor cost advantage is gradually lost.Mini selective wave soldering
technology to the development of electronic product manufacturing engineers provide a new choice, at the same time, choose welding low running cost and high
applicability to quickly get the welcome of electronic products manufacturers.
2.Selective wave soldering system is a kind of controlled by the program, the installation will help flux nozzle and tin furnace of multi-axis control platform.PCB
online via rail transportation after positioning, will first spray flux accurately on the PCB for welding on site, and then through a small nozzle (usually 2 ~ 4 mm) in
diameter and solder pump to create an accurate circular mini solder wave, after multi-axis control platform, from the bottom of the PCB welding.Due to welding
components usually surrounded by SMT components, and high density, small spacing, in order to avoid damage to the bottom of the adjacent components and
welding plate, selecting welding process must be very precise.
3.Selective wave soldering system of process control, no matter from movement, process speed, or unlimited direction control (X, Y, Z), temperature and heat
control, its function is very powerful.Selective wave soldering during welding, welding parameters of each solder joint can be "tailored", enough process adjustment
space to each spot welding conditions (such as: flux spraying quantity, welding time, welding height, wave height) transferred to the best, the defect rate reduce.All
the control parameters settings can be saved to the program, at any time during production, can bring up the related data from the program.Therefore, if the system
is properly maintained, a few years later, the quality of welding is still the same.
machine parameters
Machine name | JT-450 |
General Function: | |
dimension | L1280mm X W1400mm X H1650mm |
general power | 5kw |
consumption power | 1--3kw |
power supply | 1 PH 220V 50HZ |
net weight | 380KG |
reuiqred air source | 3-5 Bars |
required air flow | 8-12L/min |
required N2 pressure | 3-4 Bars |
required N2 flow | ≥2m³/Hour |
required N2 purity | ≥99.998% |
required exhausting | 500--800CMB/H |
carrier or PCB | |
carrier | Customized |
max carrier size | L450 X W300MM |
max solder area | L400 X W300MM |
PCB thickness | 0.2mm-----6mm |
pcb edge | 3mm above |
controlling & conveyor | |
Controlling System | Industrial PC |
PCB Loading board method | Manual |
PCB Unloading board method | Manual |
Operating height | 900+/-30mm |
PCB conveyor up clearance | 50MM |
PCB conveyor bottom clearance | 30MM |
Motion table | |
motion axis | X, Y, Z |
motion control | Servo control |
position accuracy | + / - 0.1 mm |
chassis | Steel Constructure |
Flux management | |
flux nozzle | jet valve |
flux tank capacity | 1L |
flux tank | |
Preheat | |
preheating method | Bottom Infrared preheating |
heater’s power | 3kw |
temperature range | 25--240c degree |
solder pot | |
standard pot number | 1 |
solder pot capacity | 15 kgs /oven |
solder temperature range | PID |
melting time | 20--30 Minutes |
max solder temperature | 350℃ |
solder heater | 1.2kw |
solder nozzle | |
nozzle dim | Customized |
Nozzle material |
