Panasonic CM402 SMT Feeder calibration jig

Panasonic CM402 SMT Feeder calibration jig

Panasonic CM402 SMT Feeder calibration jig

Product Information

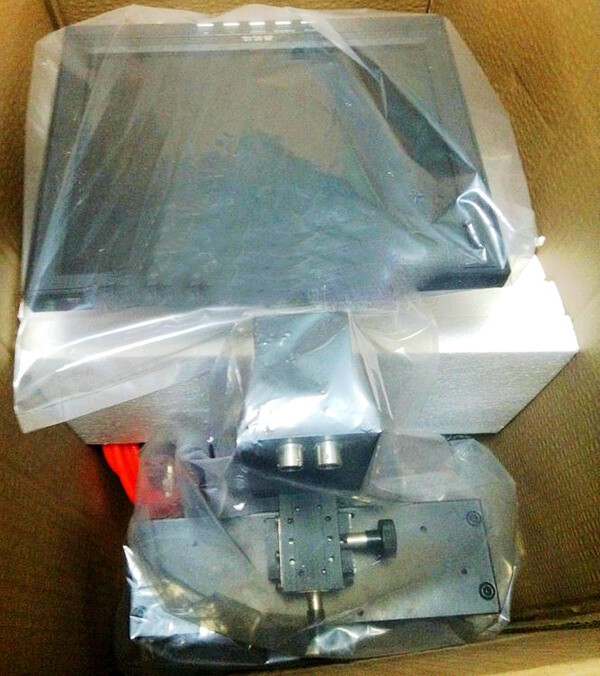

Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
The lens part: using professional high-definition magnified 50 times CCD
Front of the lens: equipped with infrared LED light, can be more clearly detected suction position
Slider: X, Y, Z axes are used imported sliders, hardness, easy to wear, adjustable stroke 15MM
Display: 7 inch special LCD display, or black and white display, large and small customers optional
Part of the circuit: solenoid valve used Japan SMC components, buttons used  Fuji brand
Base: used 45 # steel imported carved from, and other heat-treated to enhance its hardness, ensure its accuracy
Calibrator base:  using imported 16MM thick aluminum processing

Display CCD Monitor
Correction Inner cross line
Master Jig Depend on feeder model
Operation Adjustable speed control
Air pressure 5 Kg/cm2
Power AC 110V / 220V
Weight 35Kg

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven,  Wave Soldering Machine,  Pick and Place Machine,  SMT Stencil Printer,  SMT AOI SPI Machine,  SMT Peripheral Equipment,  SMT Assembly line,  SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433,  Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
