Panasonic MSR HT L Nozzles
Usage:Panasonic pick and place machine

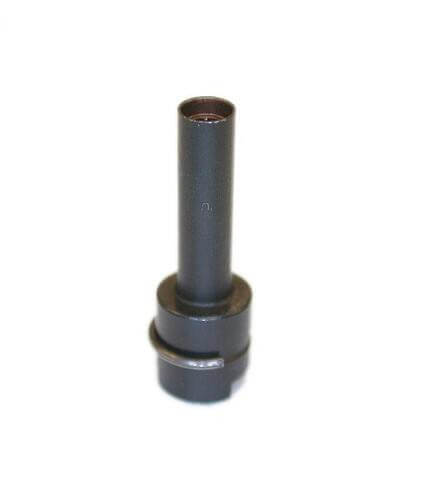

Product description: Panasonic MSR HT L Nozzles
Panasonic MSR HT L Nozzles
Panasonic MSR HT L Nozzles
MSR SMT NOZZLE
Part Number Description
10468S0002 MSR - SMT NOZZLE - VVS (0.84 X 0.60)
10468S0003 - NZ. - VS (1.0 X 0.64)
10468S0004 -NZ. - S (1.6 X 1.06)
1046710134 -NZ. - M (1.60mm)
10467S0001 -NZ. - L (3.00mm)
10467S0002 -NZ. - LL (5.50mm)
10467S0003 -NZ. - LLL (8.00mm)
10467101181 2 HOLDER/SLIDE SHAFT
MV2F MV2C MV2 SMT NOZZLE
Part Number Description
102247818103 MV2F PANASONIC SMT NOZZLE - SS (1.4X0.8) (DIAMOND COATING)
102247848603 MV2F - MA (1.8X1.2) (DIAMOND COATING)
1022478181 MV2C PANASONIC SMT NOZZLE - SS 'X' (1.4X0.8) (DIAMOND COATING)
1022478186 MV2C - RSS (1.2X0.7) (DIAMOND COATING)
1042875151 MV2C - SA (1.0X0.8) (DIAMOND COATING)
0175015K05M CY SMT NOZZLE MV2 # 1 NZ. - Ø 0.5 (TAPERED TIP)
0175015K09 MV2 # 1NZ. - Ø 0.8 (TAPERED TIP)
10201530000 MV2 # 2NZ. - Ø 1.2
1020179561 MV2 # 2NZ. - Ø 1.6
1020106016 MV2 # 3 (L)NZ. - Ø 2.0
1020179490 MV2 # 3 (L)NZ. - Ø 2.5
1020179500 MV2 # 3 (L)NZ. - Ø 3.0
1020175011 MV2 # 4 (LL)NZ. - Ø 4.0
102017501101 MV2 # 4 (LL)NZ. - Ø 5.5
1020247902201 MV2 # 5 (LLL)NZ. - Ø 8.0
MV MQ MK SMT NOZZLE
Part Number Description
1020179380 K SMT NOZZLE MV # 1NZ. A - Ø 0.8 (WITH REFLECTOR)
1020179381 MV # 2N . B - Ø 1.2
1020179381 K MV # 2NZ. B - Ø 1.2 (WITH REFLECTOR)
1020179561 MV # 2NZ. B - Ø 1.6
1020106016 MV # 3NZ. C - Ø 2.0
1020179490 MV # 3NZ. C - Ø 2.5
1020179500 MV # 3NZ. C - Ø 3.0
1020153051 MV # 3NZ. C - Ø 3.5
1020179065 MV # 4NZ. D - Ø 4.0
1020153061 MV # 4NZ. D - Ø 5.5
1020106023 04 MV # 5NZ. E - Ø 8.0
X70513010 MQ - Ø5.0
X70513011 MQ NZ. - Ø7.0
X70513012 MQ NZ. - 5 HOLES (SMALL)
X70513013 MQ NZ. - 5 HOLES (BIG)
6188021 MK NZ. - 1 HOLE
6188593 MK NZ. - 3 HOLE
6189336 MK NZ. - L
MPA MPAG3 MPAV SMT NOZZLE
Part Number Description
1015679101 MPA SMT NOZZLE CENTRALING CHUCK - S (3 HOLES)
1015679201 MPA SMT NOZZLE CENTRALING CHUCK - M (SINGLE HOLE)
1015689214 MPA NZ. CENTRALING CHUCK - L
1018520412 MPA NZ. - S (SPECIFY:4X4/5X5/6X6)
1015660021 MPA NZ. - M (10X10)
1018520310 MPA NZ. - L (12x12)
104590801403 MPAG3 NZ. (1.7 X 1.2)
104700867002 MPAG3 NZ. (1.7 X 1.5)
109700860-02 MPAG3 NZ. M (16 X 2.1
104590862403 MPAG3 NZ. (4.0 X 3.4)
104593840 MPAG3 NZ. (2.0 X 1.0)
1047008600AD MPAG3 NZ. (1.0 X 0.8) SA
04590801209 MPAG3 FLANGE/HOUSING
1040308610 MPAV NZ. - SS (1.5 X 1.0)
1040308620 MPAV NZ. - S (1.8 X 1.2)
1040308630 MPAV NZ. - M (4.0 X 3.4)
1040308670 MPAV NZ. - S (CONNECTOR)
1040308680 MPAV NZ. - M (CONNECTOR)
1040318750 MPAV NZ. - QFP-PAD NZ.
1040338340 MPAV NZ. - M (PERMEATION)
MSH II MCF MMC MSH III SMT NOZZLE
Part Number Description
101878181001 MSH 2 NZ. - S (DIAMOND COATING) (1.5X1.0)
102378926502 NZ. - S (DIAMOND COATING) (1.8X1.2)
101878181002C NZ. - S (CARBIDE TIP) (1.5X1.0)
1021206250AC NZ. - M
1021206240AD NZ. - L (ANGLE DISK)
1023810350 NZ. - L (FLAT DISK)
1020806005 01 HOOK
10443101004 MSH III- S (1.5 X 1.0)
10443101004M CY - S (1.8 X 1.2)
104431020002 - M (LARGE DISK)
1083408601 - S Ø5.5 / Ø3.9 (1.0 X 0.8)
1083498002 - M Ø3.0 / Ø2.4
1083498031 - L Ø5.5 / Ø4.5
108349CY76 CY - LLL Ø7.0 / Ø6.0
X01B40035 1.0 X 0.8
tem | Item Name | Type |
10807GH811AA | PANASERT MSF/BM SA-Nozzle | SA |
10807GH812AA | PANASERT MSF/BM S-Nozzle | S |
10807GH813AC | PANASERT MSF/BM M-Nozzle | M |
10807GH814AC | PANASERT MSF/BM ML-Nozzle | ML |
10807GH815AA | PANASERT MSF/BM LA-Nozzle | LA |
1045908001406 | PANASERT MSF/BM S-Tip only | S Tip |
KXFX03DSA00 | Pana sonic CM-202/CM-402 | 110 |
KXFX03DGA01 | Pana sonic CM-202/CM-402 | 115 |
KXFX03DHA01 | Pana sonic CM-202/CM-402 | 115A |
KXFX03DJA01 | Pana sonic CM-202/CM-402 | 120 |
KXFX03DKA01 | Pana sonic CM-202/CM-402 | 130 |
KXFX03DMA01 | Pana sonic CM-202/CM-402 | 140 |
KXFX04NAQ00 | Pana sonic CM-202/CM-402 | 205 |
KXFX05V2A00 | Pana sonic CM-202/CM-402 | 206 |
CM-207 | Pana sonic CM-202/CM-402 | 207 |
CM-208 | Pana sonic CM-202/CM-402 | 208 |
CM-209 | Pana sonic CM-202/CM-402 | 209 |
CM-210 | Pana sonic CM-202/CM-402 | 210 |
KXFX0387A00 | Pana sonic CM-202/CM-402 | 450 |
N610040782AA | Pana sonic CM-202/CM-402 | 225C |
N610040784AA | Pana sonic CM-202/CM-402 | 230C |
CM-205mod | Pana sonic CM-202/CM-402 | 205 |
CM-GRIPPER | Pana sonic CM-202/CM-402 | Gripper with Reflector |
N610017371AC | PANASONIC CM-602 | 110S |
N610017372AC | PANASONIC CM-602 | 115AS |
N610017373AC | PANASONIC CM-602 | 120S |
N610017375AC | PANASONIC CM-602 | 130S |
N610017370AC | PANASONIC CM-602 | 205S |
N610040786AA | PANASONIC CM-602 | 225CS |
N610040787AA | PANASONIC CM-602 | 226CS |
N610040788AA | PANASONIC CM-602 | 230CS |
N610043815AA | PANASONIC CM-602 | 235CS |
N610040853AA |
