Panasonic SMT Screen Printer SPV

Panasonic SMT Screen Printer SPV
Production range:350x300mm
Repeatability 2 Cpk ± 5.0 µm 6 σ The repeatability of same PCB
Equal to ± 5.0 µm ± 3 σ (or ±2.5 µm ±1.5 σ)
Weight:1550KG
Dimension:L1650 x W1517 x H1500mm

Panasonic SMT Screen Printer SPV

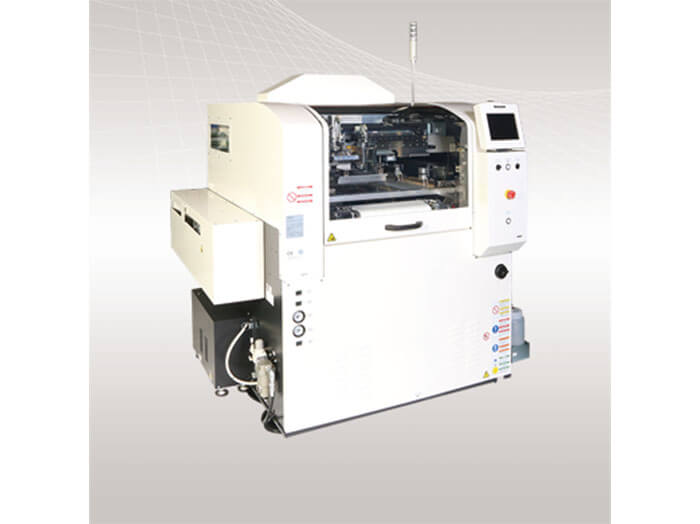

Panasonic SPV Screen Printer The revolutionary transforms the traditional production model by supporting a myriad of options to print multiple 350x300mm (M-size) boards simultaneously. Complementing the versatility is a feature set rich with changeover options and an inherent print-clean cycle of 10 seconds.

Lower WIP inventory and reduce changeover time by handling up to 4 unique products simultaneously
Minimize capital expenditures by reducing printer investment by 50%
Maximize floor space utilization with new hybrid board handling concept
Achieve 10 second Average Printing Cycle Time
Newly developed automated cleaning unit with Multi-stage board handling conveyors and a Hybrid dual-blade squeegee

Model ID	SPV (Single Spec) SPV (1 to 2 Spec) SPV (2 in 1 Spec) SPV (Dual Spec)
Model No.	NM-EJP7A
PCB Dimensions (mm)	L 50 × W 50 to L 350 × W 300（Max. dimensions of 2 in 1 Spec : L 350 × W 165)
PCB Exchange Time *	10.0 s Including transfer, positioning, recognition, each-time cleaning. Printing & cleaning conditions: Our recommended conditions (PCB dimensions L 250 × W 165) Except 2 in 1 Spec [*1]
Repeatability	2 Cpk ± 5.0 µm 6 σ The repeatability of same PCB Equal to ± 5.0 µm ± 3 σ (or ±2.5 µm ±1.5 σ)
Screen Frame Dimensions (mm) *	L 736 × W 736 L 650 × W 550 L 550 × W 650 L 750 × W 750 L 584 × W 584 [*2]
PCB Discrimination Function: Pre-process	SPV (Single Spec): Not SPV (1 to 2 Spec): Not SPV (2 in 1 Spec): Installed SPV (Dual Spec): Not
PCB Discrimination Function: Post-process	SPV (Single Spec): Not SPV (1 to 2 Spec): Installed SPV (2 in 1 Spec): Installed SPV (Dual Spec): Installed
Electric Source *	SPV (Single Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (1 to 2 Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (2 in 1 Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 2.0 kVA SPV (Dual Spec): 1-phase AC 200, 220, 230, 240 V ±10V, Max. 4.0 kVA [*3]
Pneumatic Source	0.5 MPa
Mask Cleaning Suction: Blower Spec *	SPV (Single Spec): 280 L/min (A.N.R.) SPV (1 to 2 Spec): 280 L/min (A.N.R.) SPV (2 in 1 Spec): 280 L/min (A.N.R.) SPV (Dual Spec): 560 L/min (A.N.R.) [*4]
Mask Cleaning Suction: Ejector Spec *	SPV (Single Spec): 380 L/min (A.N.R.) SPV (1 to 2 Spec): 380 L/min (A.N.R.) SPV (2 in 1 Spec): 380 L/min (A.N.R.) SPV (Dual Spec): 760 L/min (A.N.R.) [*4]
Dimensions (mm) *	SPV (Single Spec): W 1,650 × D 1,517 × H 1,500 SPV (1 to 2 Spec): W 1,650 × D 1,517 × H 1,500 SPV (2 in 1 Spec): W 1,650 × D 1,517 × H 1,500 SPV (Dual Spec): W 1,650 × D 3,044 × H 1,500 [*5]
Mass *	SPV (Single Spec): 1,550kg SPV (1 to 2 Spec): 1,550kg SPV (2 in 1 Spec): 1,550kg SPV (Dual Spec): 3,100kg [*6]

* Values such as maximum speed may vary depending on operating conditions.
* Please refer to the "Specification" booklet for details.
[*1]:PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth
[*2]: For mask specifications, please see the specification
[*3]: Including blower and vacuum pump "Option"
[*4]: When using the mask suction function
[*5]: Except for the signal tower and the touch panel
[*6]: With full options
