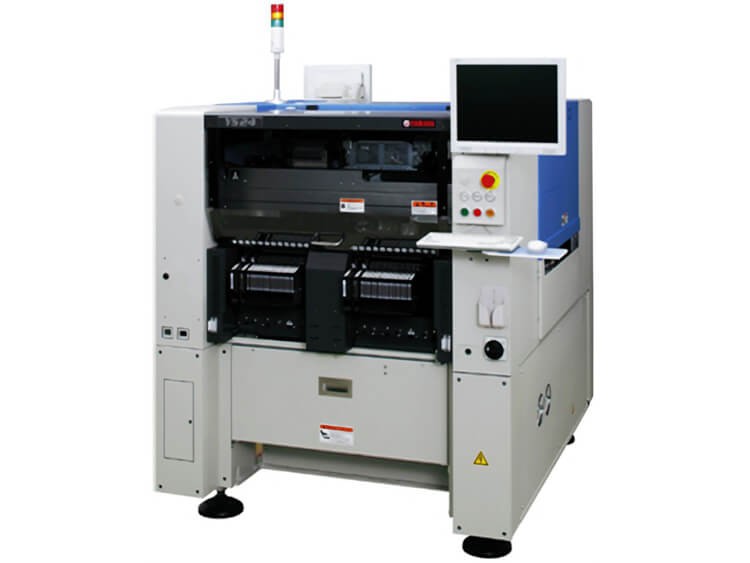

SMT Line Machines YAMAHA YS24

Mounting Capability: 72,000 CPH
Board size: L50xW50mm to L700xW460mm
Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
Weight: Approx. 1,700KG
Product description: SMT Line Machines YAMAHA YS24, Mounting Capability: 72,000 CPH, Board size: L50xW50mm to L700xW460mm, Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less), Weight: Approx. 1,700KG

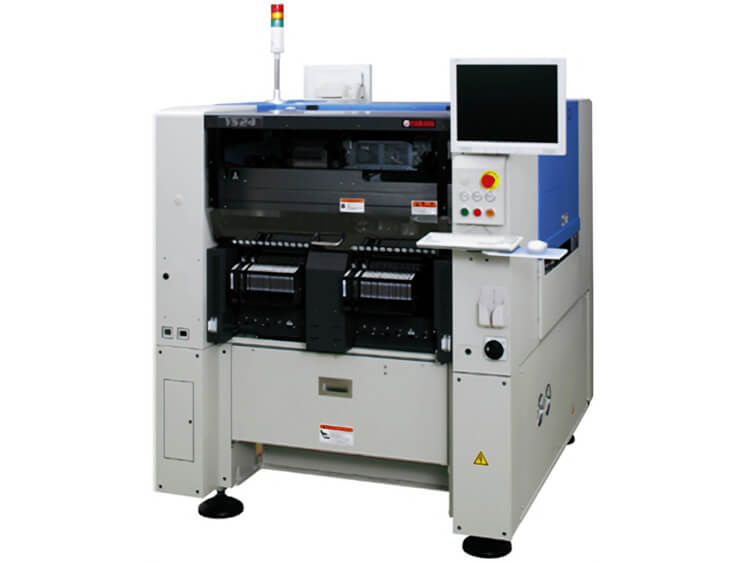

SMT Line Machines YAMAHA YS24

Compact -Super-High -Speed Modular

Features:

72,000CPH (0.05sec/CHIP)
34kCPH/?(Area-productivity, top class in the world)
L700 x W460mm (Super large PCB applicable)
YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm(Components applicable)

Specifications

Model	YAMAHA YS24
Applicable PCB	L50xW50mm –to L700xW460mm
Mounting accuracy	+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)
Speed	72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Applicable components	0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types	120 types (Max./8mm wide tape reel conversion)
Power supply	Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source	0.45MPa
External dimension	L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight	Approx. 1,700kg

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
