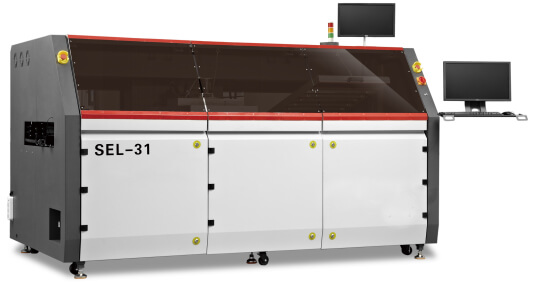

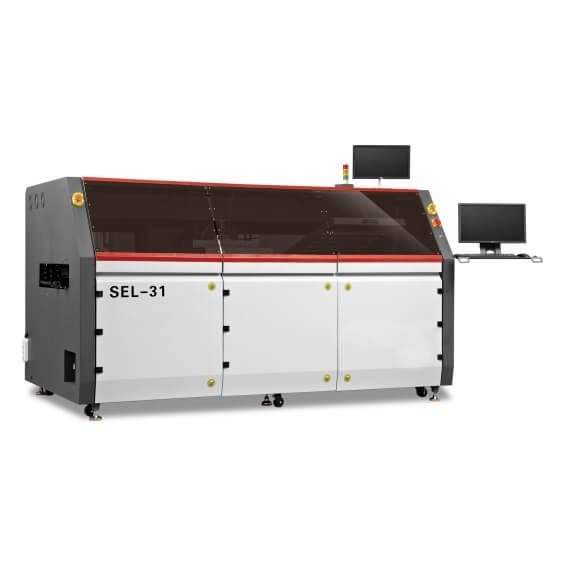

Selective Soldering Machine Manufacturer

max solder temperature 350℃
solder pot capacity 15 KG
dimension L1280mm X W1400mm X H1650mm
Net weight 380KG
Product description: Are you searching for an selective soldering machine? At Efficient SMT you are in the right place for buying automated selective soldering machine.

Selective Soldering Machine Manufacturer

Advantageous:

(1) Double head spray and welding, greatly improve production efficiency.

(2) PCB plate fixed, spray and welding platform moving.

(3) High welding quality, greatly improve the pass rate of welding.

(4) Modular design of SMEMA online transportation, support customers for flexible line formation.

(5) Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,

n2 temperature etc, best trace-ability and easy to get repeat soldering quality.

Standard machine include:

Serial	Item	content	Quantity
1	Controlling system	PC & monitor	1 set
		Live on monitor camera
		motion control
2	Platform motion system (Flux Spray）	xy motion table	1 set
		2 axis equipped with ball screw & linear guild rail
		2 axis equipped with servo motor & driver
3	Fluxing system	Imported fluxing jetting valve	1 set
		flux tank
		flux pneumatic system
		Nozzle automatic cleaning system
4	preheating system	Preheat the hot air,IR heater at bottom	1 set
5	Platform motion system (Solder pot）	xyz motion table	1 set
		3 axis equipped with ball screw & linear guild rail
		3 axis equipped with servo motor & driver
6	Soldering pot	15kg capacity solder pot, impeller, tunnel, servor motor	2 set
		solder temperature over heat alarm system
		solder temperature controlling system
		n2 inline heating system
		Standard equipped solder nozzle（inner 4mm x 3pcs, 5mm,6mm )
7	Conveyor system	Independent step drive of front and rear transport guide rail (spray preheating section)	1 set
		Front and rear chain transportation guide (spray preheating section)
		Spray section of PCB plate blocking device, preheating section
		Independent step drive of front and rear transport guide rail (tin soldering section)
		Front and rear roller transport guide (tin soldering section)
		PCB plate blocking device tin soldering section
		side clamping system
8	Machine chassis	machine frame/cover & painting	1 set
