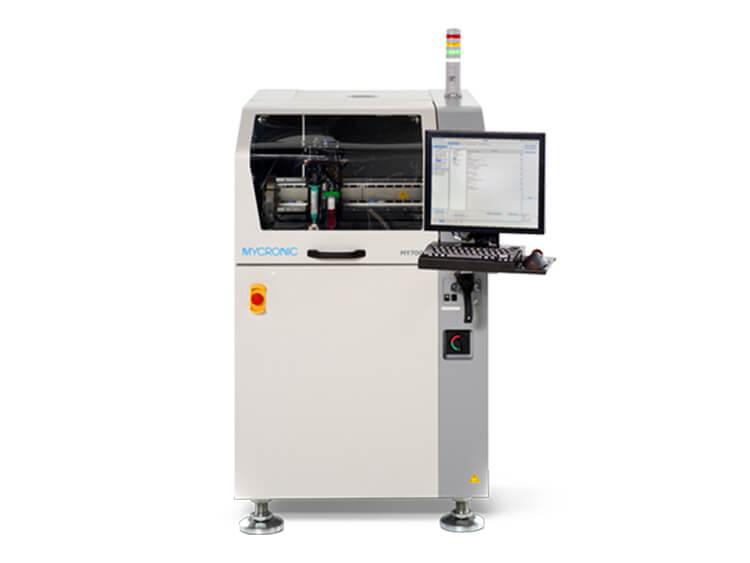

Solder Paste Jet Dispenser Mycronic MY700JD

Nozzle size: 50-400μm
Jet frequency: 720,000DPH
weight: 1,600kg
Dimension: 843 x 1,550 mm
Product description: Solder Paste Jet Dispenser Mycronic MY700JD, Nozzle size: 50-400μm, Jet frequency: 720,000DPH, weight: 1,600kg, Dimension: 843 x 1,550 mm

Solder Paste Jet Dispenser Mycronic MY700JD

Accurate: Maintains high positional accuracy at throughputs at least three times higher than general dispensers.
Simple: Replaces multi-head solutions with one machine. Applicator with low parts count simplifies service and maintenance.
Flexible: Dual-head option allows dispensing of two different assembly fluids in one process step.
Reliable: Well-proven design, compatible with a wide range of industry fluids.

The highest throughput in a range of dispensing applications
Low- and high-viscosity adhesives. Selective coating, capillary underfill and encapsulation. The MY700 Jet Dispenser handles it all at substantially higher speeds than any other dispensing system — no matter what type of board you are producing.
Maximum productivity
With a throughput rate vastly higher than traditional glue dispensers, the MY700JD is the market’s fastest dispensing platform. Its dual-head, dual-lane design with faster board loading and on-the-fly fiducials makes it ideally suited for operator-free, high-volume manufacturing where the absolute highest levels of speed and precision are a necessity. The platform’s advanced motion system makes quick work of complex SMA and random dot patterns as well as long travel distances.
Minimal maintenance
The non-contact jetting nozzles are robust and durable, and require minimal maintenance thanks to an integrated valve cleaning station. Applicator heads have few wetted parts, all of which are easily accessible, which means the unit can remain on the machine during maintenance to ensure low running costs and minimal stoppage time. Whenever machine cleaning is required, the MY700JD’s compact format and dual hoods allow easy access from either the front or back of the machine.
Intelligent guidance

To ensure error-free operations, each applicator includes an ID chip and barcode on the cartridge, which guarantees that the right applicator for the job is used. With a vast and expanding range of approved fluids, the MY700JD gives you enormous versatility for future applications, together with vastly improved throughput and minimal operator intervention.

MACHINE PLATFORM
Jet frequency	720,000DPH/1,080,000DPH(1)
Gantry type	X /Y linear motor
Servo	Advanced DSP motion control
Gantry acceleration, max	3g (30m/s2)
Active field of view	16 x 16 mm
PRODUCTION PERFORMANCE
Single dot repeatability, 3σ (X,Y)(2)	± 35μm
Single dot accuracy, Cpk = 1.0 (X,Y)(2)	± 40μm
CAPABILITY	MY700JX
	MY700JP	MY700JD
Media	Solder paste	SMA and other adhesives
Applicator type	Piezo ejector	Pneumatic valve/Piezo valv
Droplet size	1 .9 –35nl(3)	5 –1,000nl
Min dot diameter	210μm(3)	200μm
		(this is material dependent)
Nozzle sizes	N/A	50 – 400μm
Syringe size	30 cc	5, 10, 30 cc
OPTIONAL FEATURES	MY700JX
	MY700JP	MY700JD
Hermes communication	•	•
2D inspect and repair — paste present detection	•
High speed — 1,080,000dph	•
SMD adhesive — jet printing of SMA	•	•
Fine pitch — jet printing for fine pitch components	•
Shared databases	•	•
PCB ID — board traceability	•	•
Serial start — automatic start	•	•
Dual layout	•	•
Dual heads	•	•
Board indexing	•	•
Cleaning station for ejector	•
Cleaning station for applicator		•
Internal buffering 200 mm	•	•
Internal buffering 250 mm	•	•
Extended Internal Conveyor — For boards up to 915 mm in length	•	•
Foot SMEMA — spacer for SMEMA height	•	•
Vacuum clamping	•	•
Fiducial recognition on-the-fly	•	•
Stop pin	•	•
Weigh station	•	•
AI2 — active inspection interface, repair loop	•
E-mapping — external information; “bad board” and “fiducial”	•	•
Board thickness range(4)	0.4 – 6 .0 (0.016”– 0.24”)
Overboard clearance	35 mm (1 3/8”)
Underboard clearance	25 mm (1”)
Board edge clearance, top	3 mm (1/8”)
Board edge clearance, bottom	4 mm (5/32”)
Board warp / bow / twist, max(5)	± 2 mm (± 0.08”)
Board weight, max	5 kg (11lbs)
Board transport height	880 – 930 mm (34 .6”–36 .6”)
Board transport height (SMEMA)	930 – 975 mm (36 .6”–38 .4”)
Transport direction	R->L, L->R, R->R, L->L, Pass
Lane configuration	Dual lane with optional dual layout
Machine weight	1,600kg (3,530lbs)
System Footprint	843 x 1,550 mm
Power requirements	4kW (peak)
Power consumption	3kVA
Voltage	3 phase AC 200/ 220/ 240/ 380/ 400/ 420V ± 10 %
Air pressure	5 –10 bar (70 –140PSI)(9)
Air quality	ISO 8573-1 4 4 4
Air consumption, max	250 l/min (9CFM)
Ambient temperature	+ 18°C to + 32°C, 30 – 80 % RH
Clean room	Fulfills class 10,000
Altitude	Lower than 1,000 m above sea level
Sound level	68dB(A)
