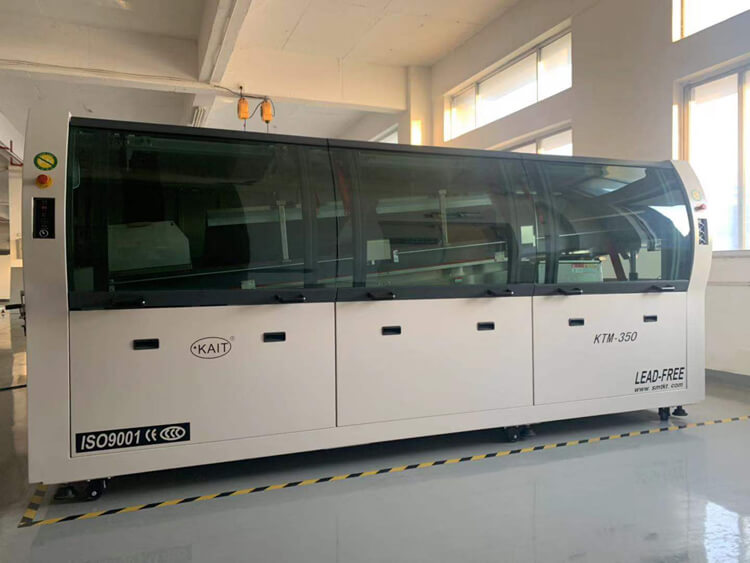

Wave Soldering Machine KTM-350

Wave Soldering Machine KTM-350

Wave Soldering Machine KTM-350

Machine cover

StructureStreamline cover design, the frame is made of thick square tube, the cover is made of 2mm steel plate. There are totally 6 wheels to move the machine easily.
Front door structureFully enclosed glass door, transparent，pneumatic holder to support, ensure the operating and repairing space.
Machine topAnti-explosion lamp
Surface treatmentPainted with white color
Flux spraying
Spray nozzleSpray range:20~65mm,adjustable，nozzle height: 50~80mm adjustable，max. flow rate:100ml／min
Air circuitAcid and alkali resistant air pipe, the brand is SMC from Japan.
Nozzle moving systemStep motor to drive, Mitsubishi PLC, with proximity switch and entrance sensor to control, according to the coming PCB’s speed and width, the spraying system can detect and starts to work.
Flux recycle systemTray to hold the waste water and flux, can be draw out easily, make maintenance very convenient.
Flux exhaust systemExhaust system：stainless steel mesh frame+ double layers filter，recycle the flux to maximum.
Isolated air curtainAir pressure type knife, blow the redundant flux into the recycling box, to avoid the flux to enter into the preheating zones, ensures the safety.
Spraying box structureMade of full stainless steel, easy to clean and repair. Anti-corrosion, very durable.
Preheating
Preheating zone quan.Preheating length is 1800mm, divided into 4 sections, supply abundant adjusting space, very good for big PCB and complicated PCB. Reduce the heat impact on PCB, improve the production efficiency.
Temp. control methodMitsubishi temp. collecting module, PID is very precise and stable.
Heating partsThe heaters are imported from Taiwan, heat up very fast, with long life, small thermo lag; The heat is even in the zones.
Preheating power20kw
Install modeThe heating module adopts drawer design, easy to replace and repair, make the maintenance very convenient.
Transmission
RailMade of aluminum, wear resistant and without distortion.
Rail parallelismWidth adjusting accuracy less than 0.2mm
Width adjustManually/motorized
C/V speed setting unitMin.1mm／min 0-1800mm／min
C/V speed variation rangeElectric closed-loop control, within 0-10mm／min
Conveying motorTCG motor from Taiwan，90w, with over-loaded protection function.
Solder pot
Low oxidization designHigh quality solder pot, the heat is very steady. Adopts liquid solder flow design, reduce the impact oxidization, especially for small PCB.
Economical runningReduce the power consumption
Moving methodMotorized
Wave adjustable height0-18mm
Wave motorTCG motor from Taiwan，adjust the wave height with frequency conversion.
Preheating partsAdopts the stainless steel heaters from Taiwan, with long life and power saving up to 40% daily.
Cooling
Cooling methodAdopts high power centrifugal fan, reduce the air bubble and solder pad stripping
Automatic finger cleaning
Imported premium pump, can wash the fingers from both sides. Propyl alcohol to clean and can be recycled.
Control software
★Automatic alarm function for failure:：thermocouple abnormal，temp. too high or too low；if preheating system or solder pot is abnormal, the heating stops.
★Preheating temp., solder pot temp., conveyor speed, spraying and cooling can be controlled separately.
★One week automatic power on/off setting （three times one day）
★The emergency stops are in front, rear of the machine, press them in case of any emergency.
