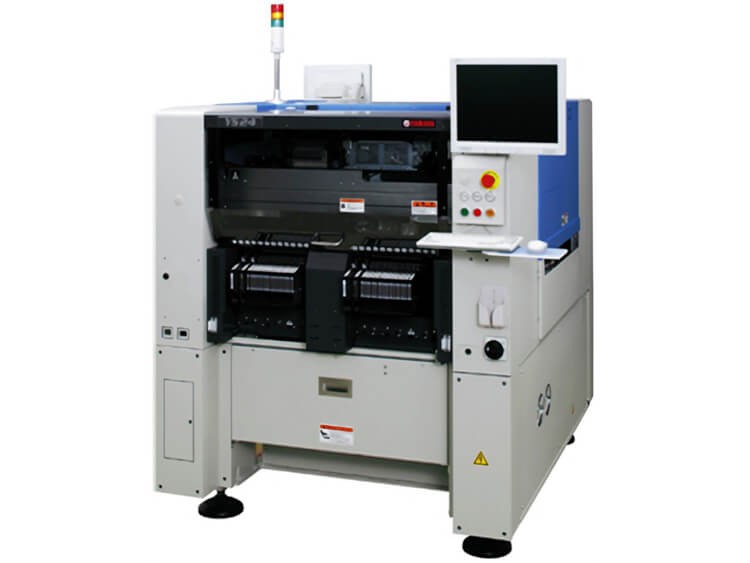

YAMAHA YS24 SMD Mounting Equipment

Mounting Capability: 72,000 CPH
Board size: L50xW50mm to L700xW460mm
Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less)
Weight: Approx. 1,700KG
Product description: YAMAHA YS24 SMD Mounting Equipment Mounting Capability: 72,000 CPH, Board size: L50xW50mm to L700xW460mm, Applicable Components: 0402 to 32x32mm MAX (Height 6.5mm or less), Weight: Approx. 1,700KG

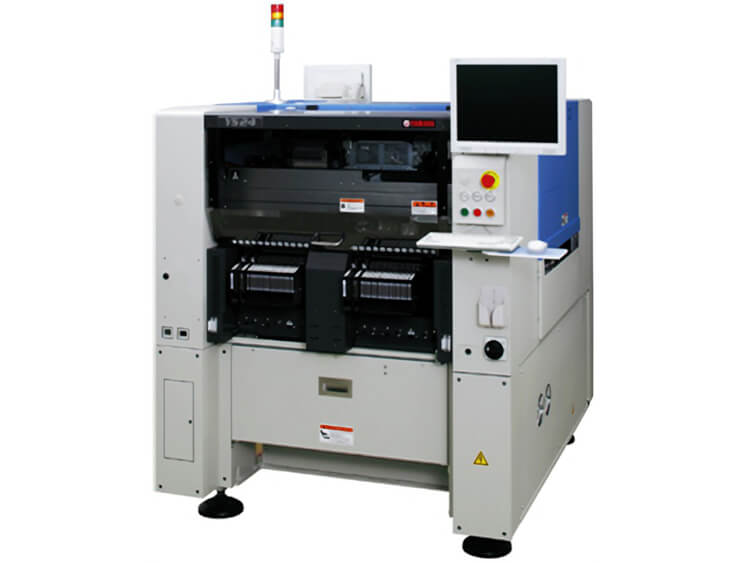

YAMAHA YS24 SMD Mounting Equipment

Compact -Super-High -Speed Modular

Features:

72,000CPH (0.05sec/CHIP)
34kCPH/(Area-productivity, top class in the world)
L700 x W460mm (Super large PCB applicable)
YAMAHA Dual Lane System applicable

120 Max feeder capacity

0402 to 32 x 32mm(Components applicable)

Specifications

Model	YAMAHA YS24
Applicable PCB	L50xW50mm –to L700xW460mm
Mounting accuracy	+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)
Speed	72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Applicable components	0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types	120 types (Max./8mm wide tape reel conversion)
Power supply	Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source	0.45MPa
External dimension	L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight	Approx. 1,700kg
