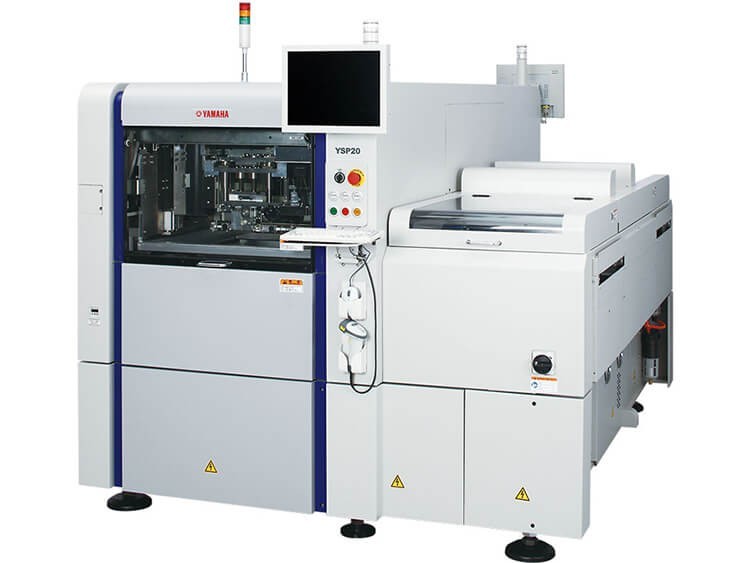

YAMAHA YSP20 SMT Stencil Printer

YAMAHA YSP20 SMT Stencil Printer

YAMAHA YSP20 SMT Stencil Printer

With dual stage & dual stencil

Printing has a line tact time of approximately 5 seconds. More than doubles the YSP productivity.

Non-stop setups & changeovers

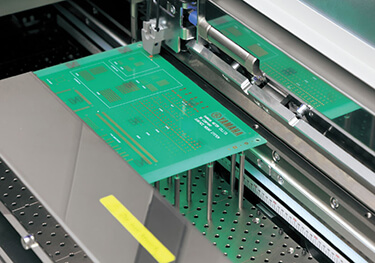

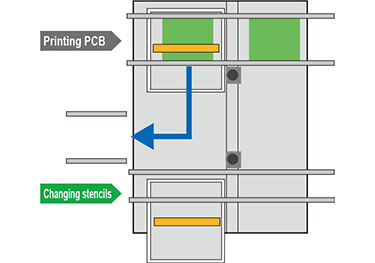

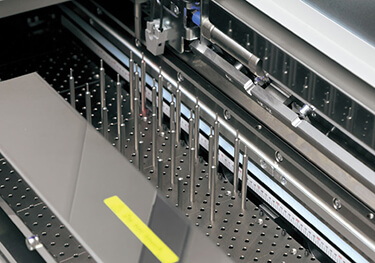

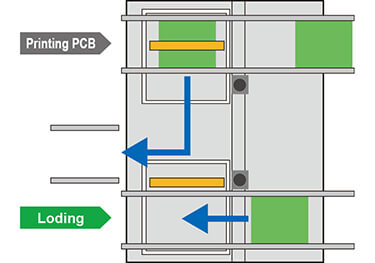

One side sets the stencil backup while other side prints PCBs.

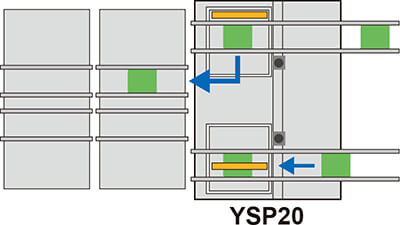

Fully compatible with YAMAHA dual lane system

Internal traverse function handles all dual-lane and single-lane types as a standard feature.

Delivers High-Quality & High-Accuracy Printing

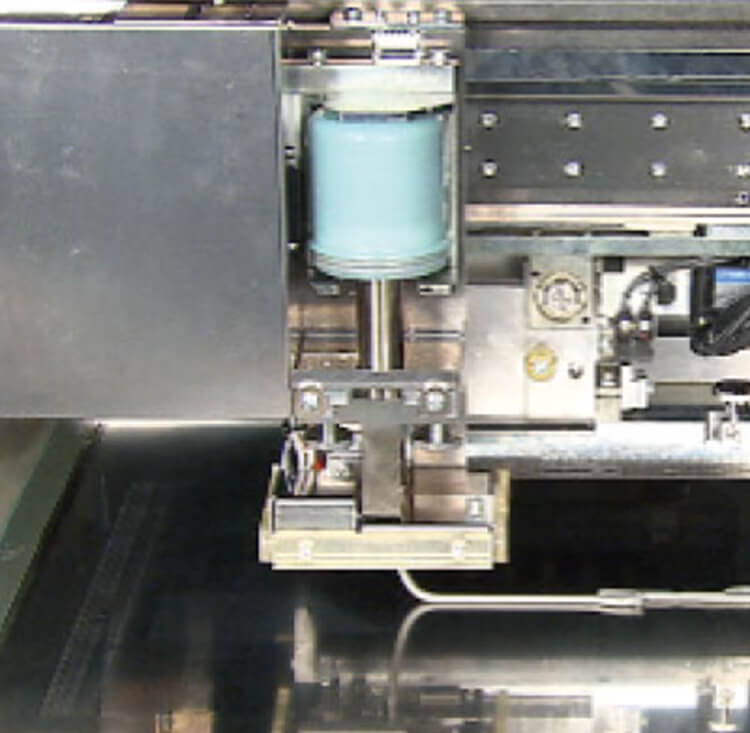

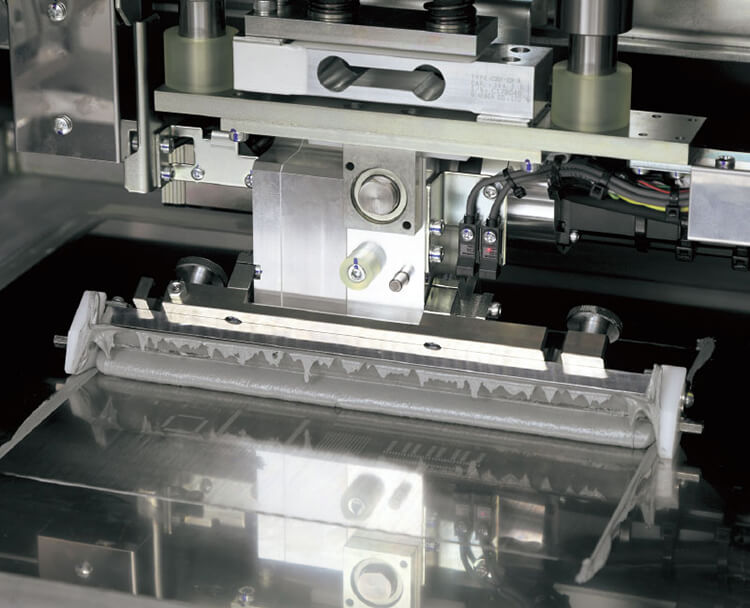

YAMAHA’s original 3S head[3S:Swing Single Squeegee]

Program change squeegee attack angle and speed to an ideal setting to provide optimal printing conditions that match the

solder being used.

Printing inspection function(option)

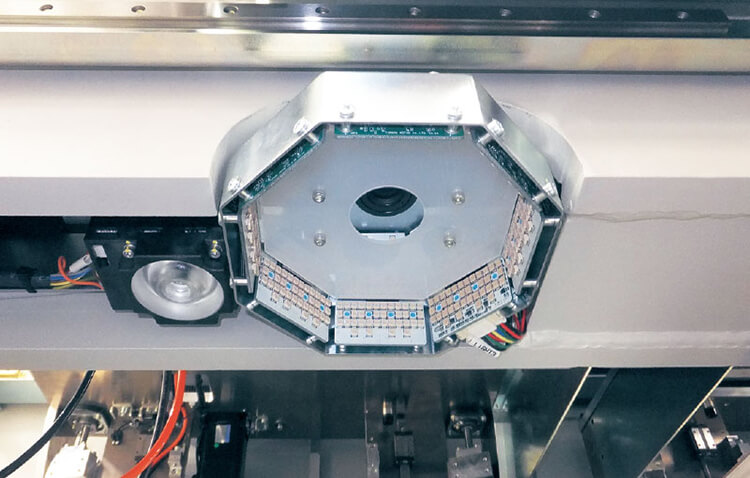

Dedicated camera does full main line inspection. Feedback results are used in automated overlay printing and stencil cleaning.

PSC system (option) for stable printing[PSC:Print Stability Control]

This function stabilizes the cream solder rolling radius that affects print quality. The PSC function shortens the setup time

and cuts solder loss. PSC is also compatible with non-stop production operation.

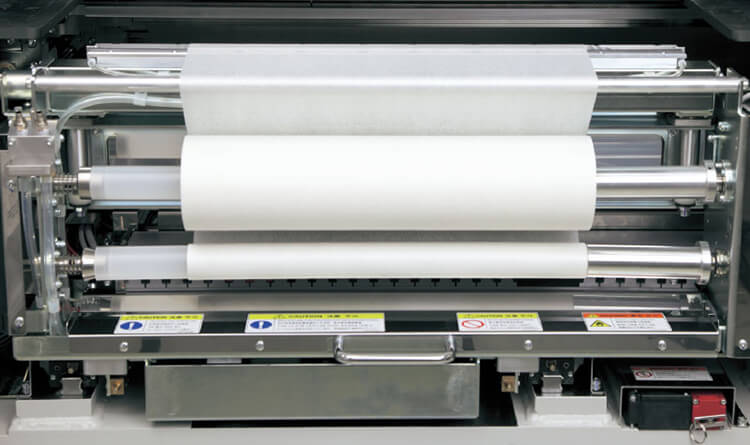

Auto cleaning system

High efficiency cleaning system is a standard feature. New system design makes for quieter operation.

Graphic layer base alignment function

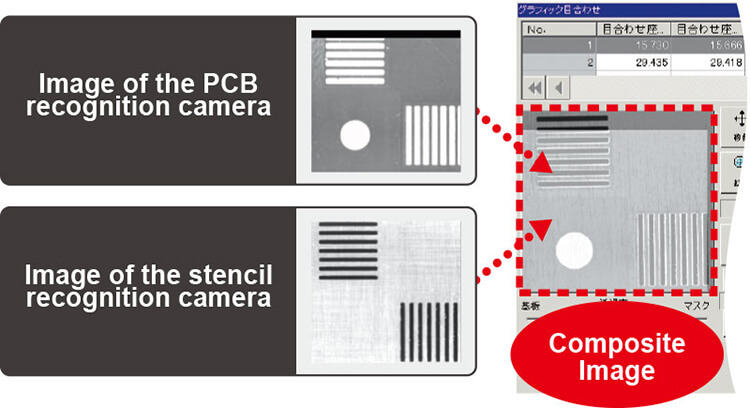

Composite display made from 2 camera images allows easy and precise alignment of PCB and stencil positions.

Handles Large PCB & Stencils

Handles large PCBs

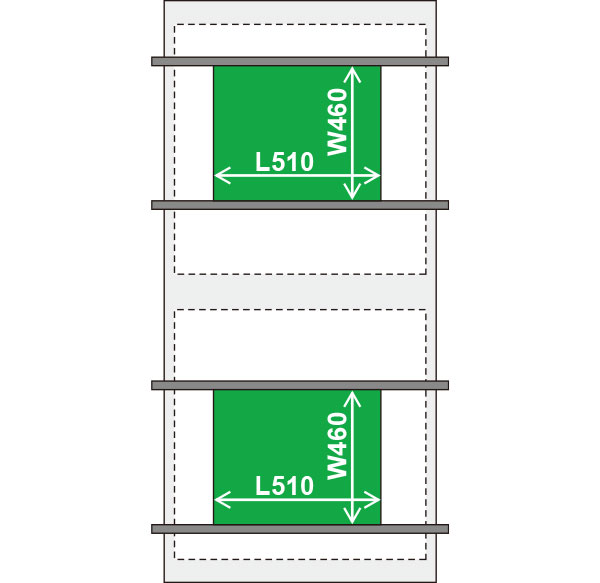

This model is designed to handle larger PCBs up to L510 × W460mm, expanding its capacity to accommodate collective

substrates, LCD PCBs and industrial-use PCBs.

Using the YSP20 in combination with distribution conveyor allows processing PCB width up to 460mm at

both front and rear stages.

Handles large stencil sizes

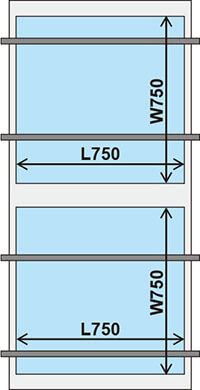

Both front and rear stages handle large stencils to a maximum size of L750 × W750mm. 4 types of stencil sizes can easily

change by a simple operation.

Superb Operability & Full Range of Options

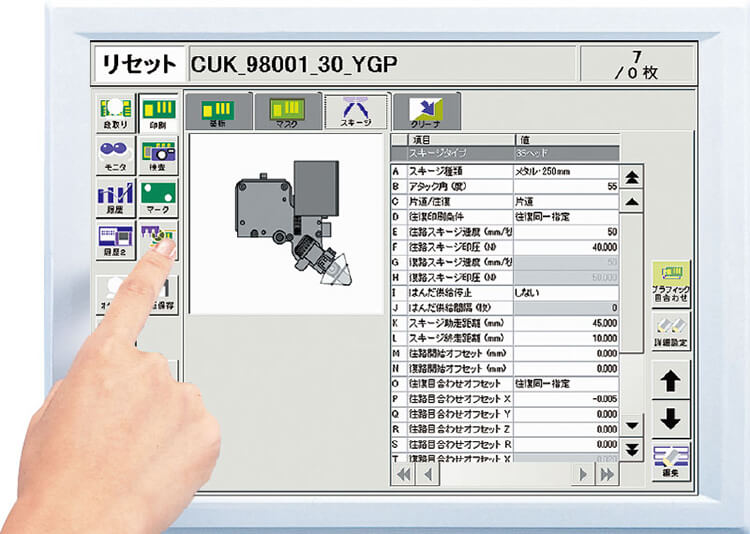

Touch panel

Smooth and simple operation via easy-to-see and easy-to-use interface Displays text in 4 languages: Japanese, English, Chinese, Korean.
