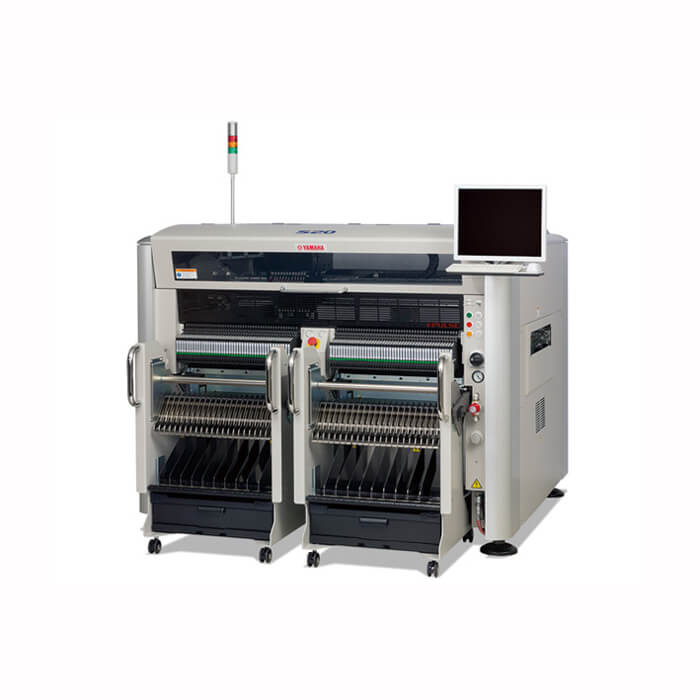

Yamaha S20 Pick and Place Machine

Speed:200,000 CPH
Applicable PCB:L50×W50mm - L700×W460mm
Weight:1700KG
Dimension:L1,254×W1,687×H1,445mm
Product description: Yamaha S20 Pick and Place Machine, Speed: 200,000 CPH, Applicable PCB:L50×W50mm - L700×W460mm, Weight:1700KG, Dimension:L1,254×W1,687×H1,445mm

Yamaha S20 Pick and Place Machine

Ultimate Flexibility to realize 3D MID* Placement

Enhancement to 3D MID

Large board handling capability

Wide ranging component handling capability and high feeder capacity

Ultimate flexibility and fast & easy setup

3D MID: Molded Interconnect Device

Specifications

	S20
Board size(with buffer unused)	Min. L50 x W30mm to Max. L1,830 x W510mm (Standard L1,455)
Board size(with input and output buffers used)	Min. L50 x W30mm to Max. L540 x W510mm
Board thickness	0.4 - 4.8mm
Board flow direction	Left to right (Std)
Board transfer speed	Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond.	0.08sec/CHIP (45,000CPH)
Placement accuracy A (?+3?)	CHIP +/-0.040mm
Placement accuracy B (?+3?)	IC +/-0.025mm
Placement angle	+/-180 degrees
Z axis control / Theta axis control	AC servo motor
Component height	Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components	0201 (mm) – 120x90mm, BGA, CSP, connector, etc. (Standard 01005 -)
Component package	8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check	Vacuum check and vision check
Screen language	English, Chinese, Korean, Japanese
Board positioning	Board grip unit, front reference, auto conveyor width adjustment
Component types	Max 180 types (8mm tape), 45 lanes x 4
Transfer height	900 +/- 20mm
Machine dimensions, weight	L1750xD1750xH1420mm, Approx. 1,500kg

*1 Board thickness + Component height = Max 30mm

Specifications and appearance are subject to change without prior notice.
