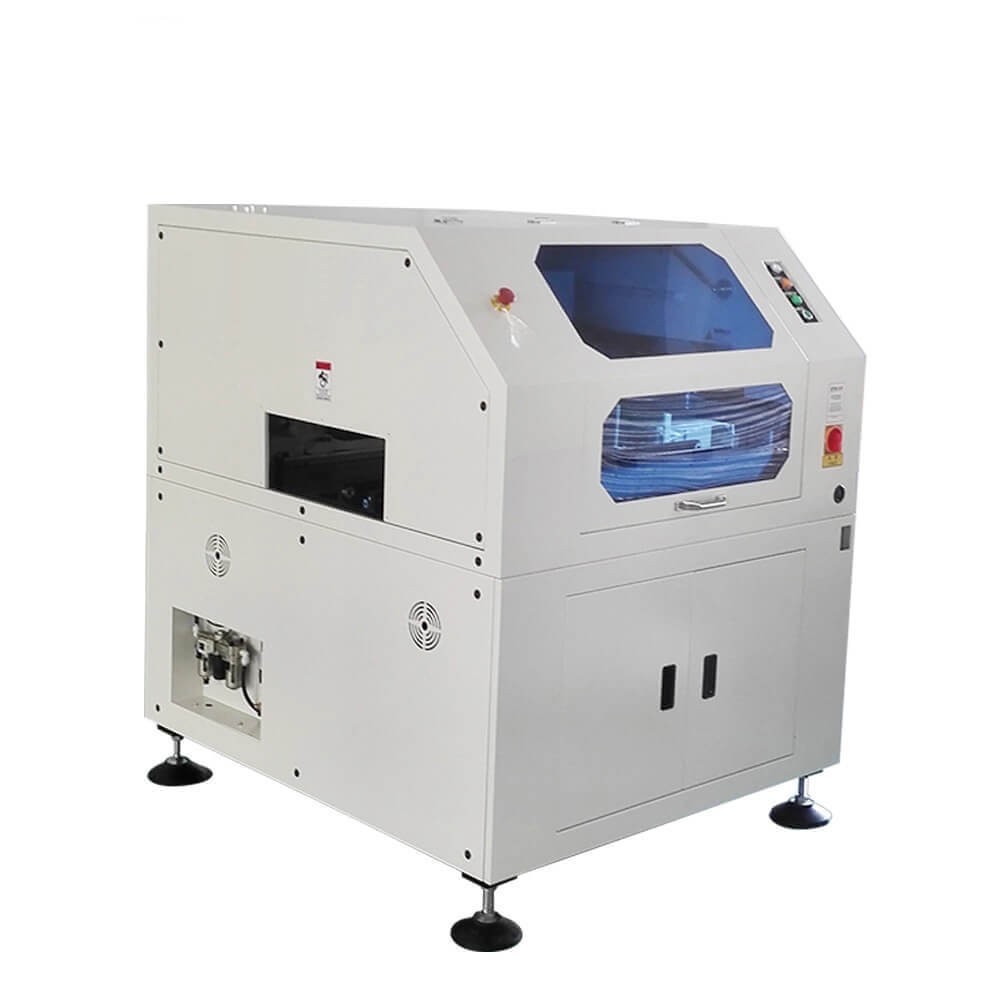

China Automatic Solder paste printer Factory Supplier

Power Supply: AC:220±10%,50/60HZ
Control Method: PC Control
PCB Size/Max: 850*500mm
Weight Approx:1300Kg
Product description: China Automatic Solder paste printer Factory Supplier

China Automatic Solder paste printer Factory Supplier

General Introduction
1. Product Functions
F850 is a high accuracy extra dimension printing robot designed for high precision screen printing or stencil printing in SMT industry.
2. Product Features
i. Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm.
ii. High printing resolution
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing.
iii. Automatic control improves production efficiency, quality control and saves production cost:
1. Automatic stencil positioning
2. Automatic PCB alignment
3. Automatic adjustment of squeegee pressure
4. Automatic printing
5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
iv. Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.
v. Programmable motor controls squeegees separation speed and distance among squeegees, steel mesh and substrate board to realize multi-method separation.
vi. Multi-functional PCB positioning and clamping system for fast, convenient and accurate PCB positioning.
vii. Upward and downward visual positioning.
viii. Built-in image processing system
ix. Support 2D,SPC functions
3. Applicable pitches of Components
i. SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.
ii. IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball diameter of 0.2 mm.
iii. Printing size 100mm x 80mm ~850 mm x 500 mm
iv. PCB Thickness 0.8 mm ~ 6 mm
v. FPC Thickness thickness? 0.8 mm (excluding jig)
4. Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products

Specification

* The following data is obtained under ambient temperature of 25 and humidity of 60%

Items: S850		Parameter
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm(Absolute Guarantees)
Cycle Time		<11s (Excluding Printing & Cleaning)
Products Changeover		<5Min
Screen Stencil Size/Min		737mm*737mm Note: Cleaning Adhesive tape shall be replaced for 737mm stencil
Screen Stencil Size/Max		1100mm*900mm
Screen Stencil Thickness		20mm ~ 40mm
PCB Size/Min		100*80mm
PCB Size/Max		850*500mm
PCB Thickness		0.8~6mm
PCB Warpage Ratio		1% Based on diagonal length
Bottom of Board Size		13mm standard configuration, 25mm optional configuration
Edge of Board Size		3mm
Transport Height		900±40mm
Transport Direction		Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed		100-1500mm/sec Programmable
Board Location	Support System	Magnetic pin/ Side support block/ Flexible automatic pin/optional
	Clamping System	Elastic side clamping/Vacuum nozzle/Elastic Z-direction tabletting optional
Print head		Programmable integrated motor driven and pneumatic control print head
Squeegee Speed		10~200mm/sec
Squeegee Pressure		0~0.5MPa with adjustable pressure reducing meter valve
Squeegee Angle		60°(Standard)/ 55°/ 45°
Squeegee Type		Steel squeegee (standard), rubber squeegee, customizable other types of squeegee.
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning Methods		Dry-type, wet-type, vacuum-type (Programmable combination of Cleaning methods?
Table Adjustment Range		X: ±4mm;Y:±6mm;:±2°
Type of Image Fiducial Mark		Standard geometry shape of fiducial mark, bonding pad / stencil hole
Camera System		Single digital camera with upward/downward vision system
Air Pressure		4~6Kg/cm2
Air Consumption		Approx 0.07m3 /min
Control Method		PC Control
Power Supply		AC:220±10%,50/60HZ 1 1.5KW
Machine Dimensions		1740mm(W)1560mm(D) 1510(H)mm (excluding the height of indicating lighthouse)
Weight		Approx:1300Kg
Operation Temperature		-20°C ~ +45°C
Operation Humidity		30%~60%
