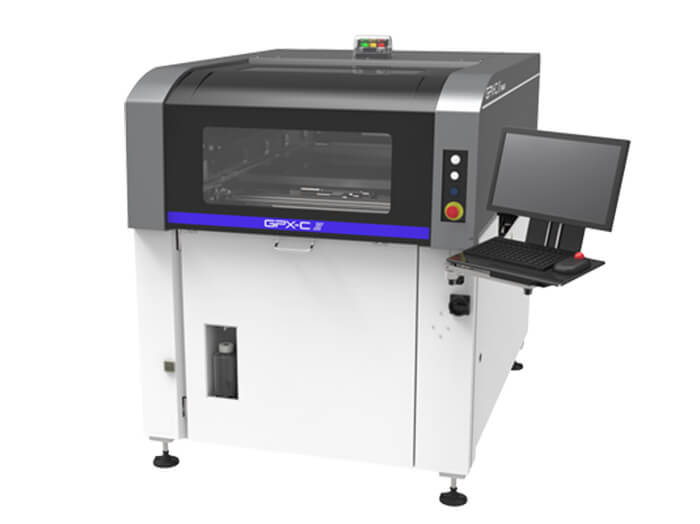

FUJI SMT Screen Printer GPX series

FUJI SMT Screen Printer GPX series

FUJI SMT Screen Printer GPX series

FUJI Screen Printer GPX series machines provide a complete printing solution that combines superb cost performance with excellent printing accuracy, speed, and usability.

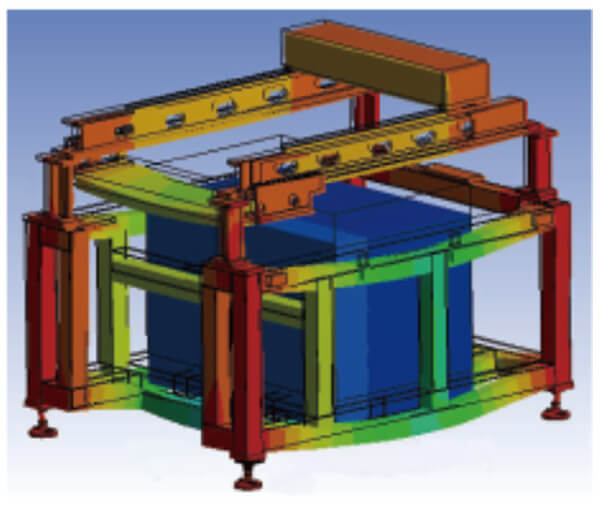

Maintaining alignment accuracy

Consistent highly rigid machine design from the base to printing section enables high accuracy printing for any task - from ultra fine patterns (0201 [008004"] parts) to the printing of large panels - and the durability to maintain printing quality.

High accuracy printing control

By having a load cell ready to use at the machine, printing pressure on the uneven sections of panels and masks can be controlled in real time.

The optimum amount of solder filling is always achieved, even when using heavy or long squeegees with which it is difficult to fill evenly.

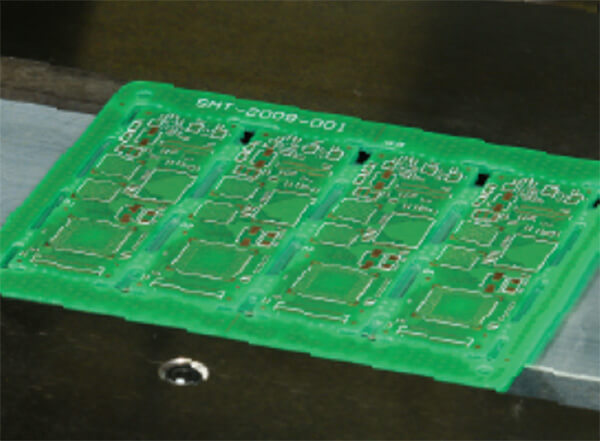

Clamping mechanism supports various types of panels

Stable clamping is achieved by using hybrid clamping, which allows users to select the optimum clamping method (side clamp/top clamp/ edge

clamp) according to the characteristics of the panel.

※This is an option on GPX-C II and GPX-CS II

Clamping mechanism supports various types of panels

Stable clamping is achieved by using hybrid clamping, which allows users to select the optimum clamping method (side clamp/top clamp/ edge

clamp) according to the characteristics of the panel.

※This is an option on GPX-C II and GPX-CS II

Clamping mechanism supports various types of panels

Stable clamping is achieved by using hybrid clamping, which allows users to select the optimum clamping method (side clamp/top clamp/

edge clamp) according to the characteristics of the panel.

※This is an option on GPX-C II and GPX-CS II

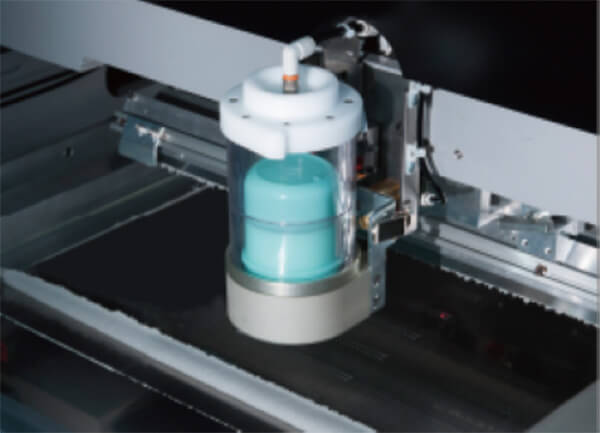

Cup type auto solder supply

The amount of solder is detected, and solder is automatically supplied when necessary. This makes it possible to always print with the appropriate

 amount of solder, for stable print quality. Work can be completed without mistakes in a short time by using a solder cup as is.

※Option

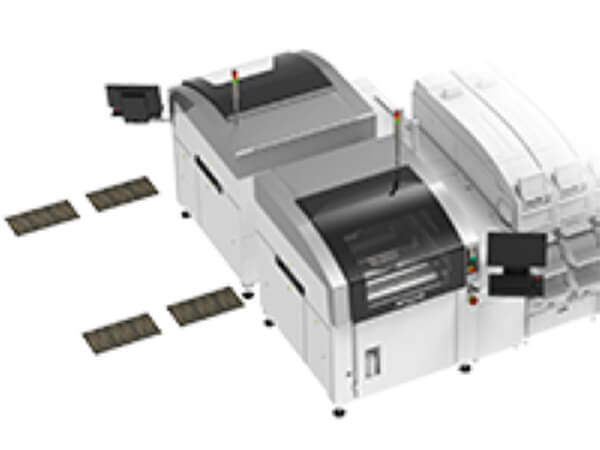

Features: GPX-CSII

• Supports dual lanes in a compact body
GPX-CSII is compact model that maintains the basic features of GPX-CII, and is suitable for dual lane production in smaller space.

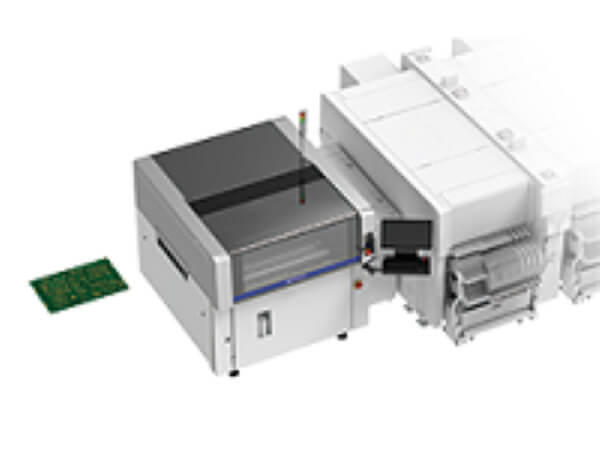

Features: GPX-CL

• Support for extra-large panels
GPX-CL maintains the basic features of GPX-CII while supporting production of even larger panels. With a maximum panel size of 850 x 610 mm,

 this printer is well suited to production of the large panels used for 5G base stations and servers.
