Hanwha Chip mounter Ancillary equipment Tray Feeder STF100S

Hanwha Chip mounter Ancillary equipment Tray Feeder STF100S
Chip Mounter Ancillary equipment
Applicable Hanwha Decan S1 / S2 / F2 /SM482 /481/471 PLUS SM485
External size:938(L)x1552(D)x1344(H)
Weight:About 250kg

Hanwha Chip mounter Ancillary equipment Tray Feeder STF100S

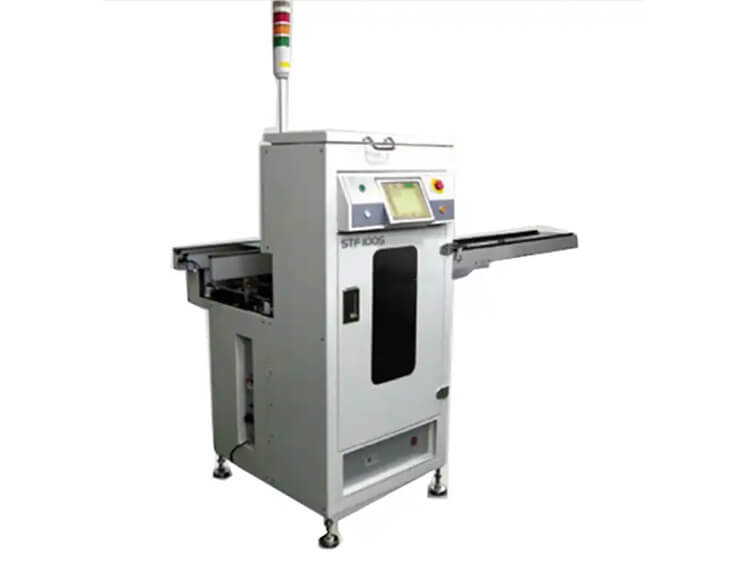

Model: Hanwha STF-100S

Applicable Chip Mounter:Hanwha Decan S1 / S2 / F2 /SM482 /481/471 PLUS SM485

JEDEC tray cassettes are separated into upper & lower magazines, each have 12 pallets & can operate independently
Tray components can be reloaded while machine is running for continual non-stop operation
Improved accuracy with high feeder base stability
New mounting mechanism
Two position-control pins at the front side
Newly designed sprocket
Built-in cylinder
Optimized pressure control within the cylinder
Increased pick-up speeds with the index sensor
Tape guide automatically compensates for changes in tape thickness
Variable tape support (for feeders accommodating tape widths of 12mm and higher)
Swing-type reel hanger
Easy feeder identification by applying a different color for each clamp 8mm, large size 12-88mm
Ergonomic handle design
Manual index switch
Power supply indication lamp illuminates when fixed by the clamp
Tape guide lift prevention through the use of the control pin

Model Name		STF100S	STF100N	STF100D
Applicable Chip Mounter		Hanwha Decan S1 / S2 / F2 /SM482 /481/471 PLUS SM485
Machine Location		Right	Back	Back
Tact Time		3sec
Tape Feeder Slot Occupation		0 Slot	34 Slot
Feeding Accuracy		±0.2mm@3σ
Component Range (Max. Height)		H=9.5mm(H=25.4mm, if pallet are loaded in every other slot)
Pallet Slot Pitch		14mm
Non-Stop Operation		O	O	O
Utility		AC100/110/120/200/220/240V(50/60Hz,1Phase)
Dimension (mm)	Air Consumption	None
	Tray	Min. 200(L) x 100(W)	Min. 200(L) x 100(W)
		Max. 322.6(L) x 136(W)	Max. 340(L) x 272(W)
	PCB	Min. 50(L) x 40(W)	Min. 50(L) x 40(W)
		50(L) x 30(W)(option)	50(L) x 30(W)(option)
		Max. 460(L) x 400(W)	Max. 460(L) x 400(W)/510(L) x 460(W)/610(L) x 510(W)
	External	938(L)x1552(D)x1344(H)	1307(L)x500(D)x1300(H)	1350(L)x503(D)x1442(H)
Weight (kg)		About 250
