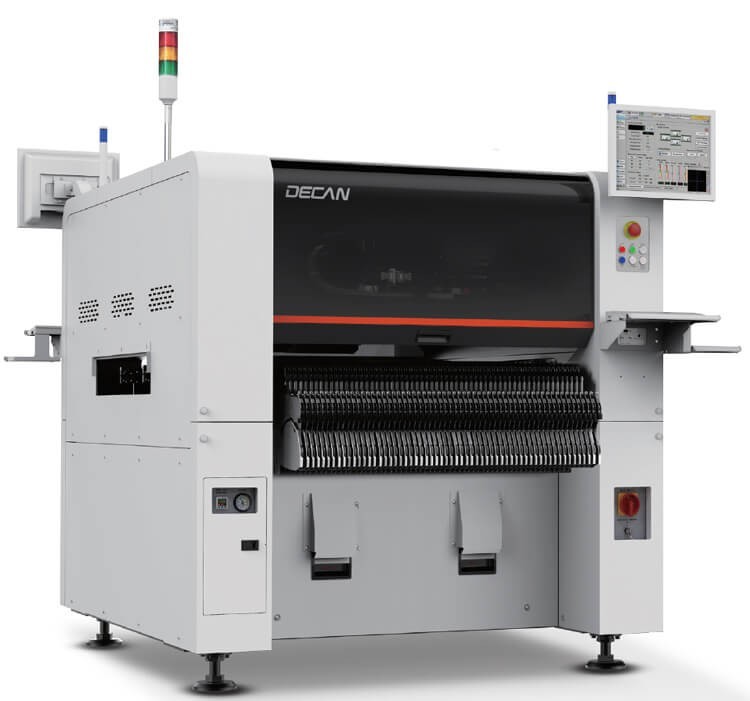

Hanwha DECAN S2 Pick and Place Machine

High Speed:92,000 CPH(HS10 head)
PCB Size : L510xW460mm
Feeder position:120ea
Weight: 1,800kg
Product description: Samsung Hanwha DECAN S2 Pick and Place Machine, High Speed:92,000 CPH(HS10 head), PCB Size : L510xW460mm, Feeder position:120ea, Weight: 1,800kg

Hanwha DECAN S2 Pick and Place Machine

Hanwha Pick and place machine DECAN S2, Samsung Pick and place machine DECAN S2, Hanwha chip mounter DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has better area capacity than competitors' similar equipment, * optimized High-speed placement of small components; The DECAN S2 high-speed chip placement machine is equipped with 10 shafts per head and is suitable for dual cantilever, magnetically levitated high-performance placement machines, which can achieve the highest speed in the world's same-class products. 92,000CPH. Welcome to "Hanwha decan s2, original Samsung high speed placement machine, Hanwha magnetic suspension pick and place machine"

Hanwha DECAN S2 Pick and Place Machine

1 Enhance the convenience of device software management

2 Built-in * optimized software in the device, which can realize simple program creation / editing

3 Provides various job information through a large LCD screen

4 Highly convenient high-precision electric feeder

5 Calibration Free & Maintenance Free Electric Feeder

6 Improved ease of operation with the Single Feeder of Reel Bank's integrated structure

7 Through the automatic arrangement of the component pick-up position between the feeders, the actual production capacity can be improved

8 SMART FEEDER with automatic material receiving

9 The industry's first automatic feeding and automatic receiving function

Manual feed preparation and receiving operation changed to automatic method, which greatly shortened the operation time

Realize zero consumption of consumables for receiving materials

Model	Decan S2	Decan F2	Decan L2
Spindles	2 gantry*10 spidles/head	2 gantry*10 spidles/head	2 gantry*6 spidles/head
Placement Speed	92000 cph (optimum)	80000cph (optimum)	56000 cph(flying vision, optimum)
			-0.14 seconds/component (flying vision, SOIC 0.5P)
			-0.55 seconds/component (Upward vision, SOIC 0.5P)
Vision	Flying vision	Flying vision
		Stage vision(option)
Placement accuracy	±28μm Cpk≥1.0(03015 chip)	±40μm Cpk≥1.0(0402(01005 inch) chip)
	±25μm CPK≥1.0(IC)	±30μm CPK≥1.0(IC,stage vision)
Component range	03015-12mm(H10mm)	0402(01005)-16mm(H10mm)	0402(01005)-21mm(H12mm)
		Max. 42mm( H15mm)(option)	Max. 55mm( H25mm)(option)
PCB size	5040-510460mm(standard)
	-740*460mm(option)
	Max.-1200*460mm(option)
Conveyor configurations	Standard: 1-2-1
	Option: 1-2-2/2-2-2/2-2-1/1-1-1
	Factory Option: single conveyor (Jadec Tray 2ea)
Feeder capacity	120ea(8mm)
Power	Voltage: 3 phase AC200/208/220/240/380/415 V ±10%
Air consumption	50Nl/min
Weight	About 1800kg
External dimension	143017401485mm(LDH)
