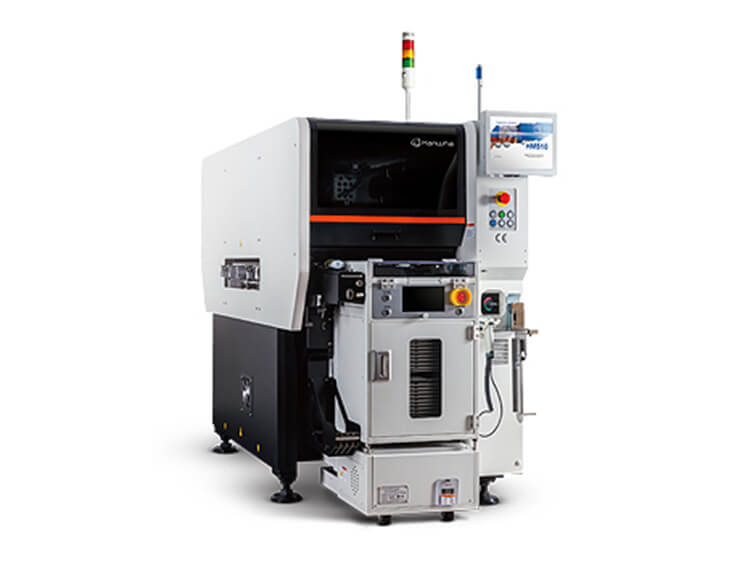

Hanwha HM510 Chip Mounter

Hanwha HM510 Chip Mounter

Hanwha HM510 Chip Mounter

High level of performance:

Flexible PCB Assembly System

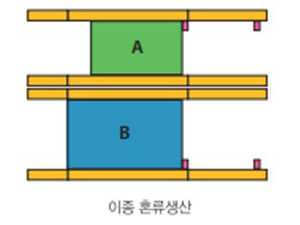

The possibility of using a single or double conveyor depending on the user’s working conditions, as well as mixed production of various models due to the use of two conveyors.

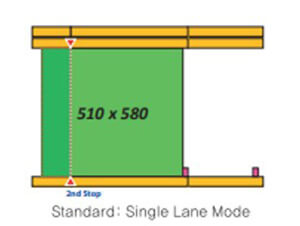

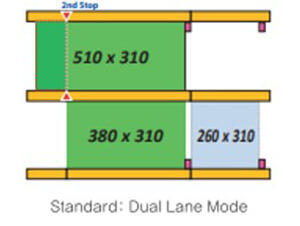

         Single pipeline mode                                          Dual-pipe mode

                     Multi mode

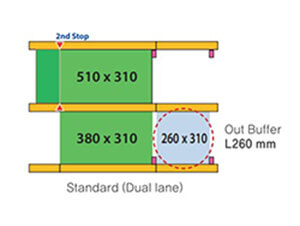

Output buffer

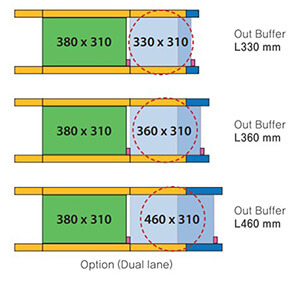

Increase actual productivity by optionally increasing the length of the output conveyor.

Solution for non-standard shaped components:

Bottom Light

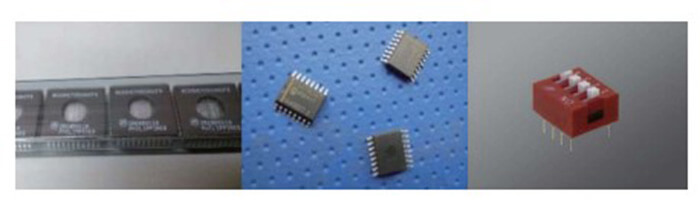

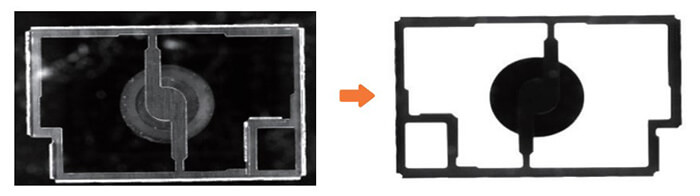

Accurate detection of non-uniformly reflective and translucent components (variation of reflection).

NPE function

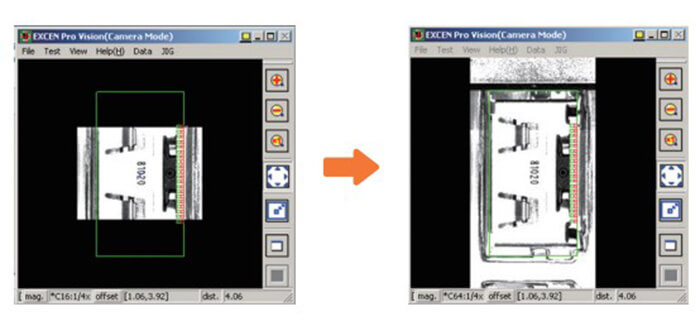

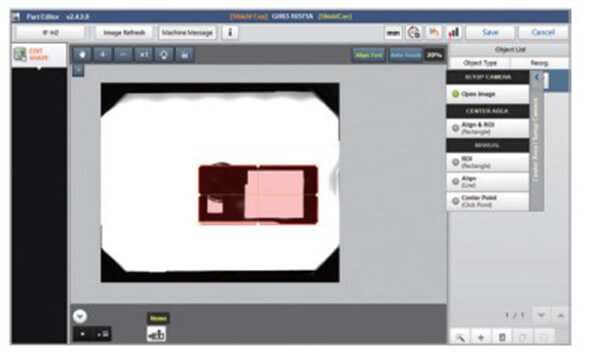

New component registration system based on Drag & Drop technology, allowing you to register component information through automatic recognition with a simple mouse click. Recognition accuracy is improved by using the noise removal function on the component image.

Versatility to solve any problems of modern installation technology

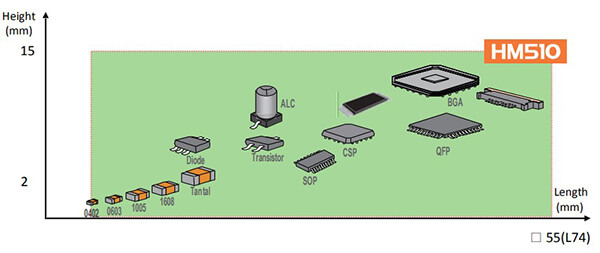

High speed, accuracy and the ability to mount a wide range of components.

High level of reliability:

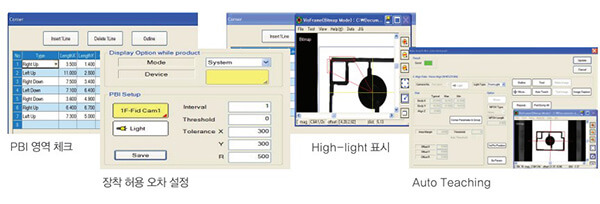

Control of poor-quality installation of components (PBI - post-installation inspection)

Checks the placement status of components in the Shield-Can system to prevent improper installation of components.

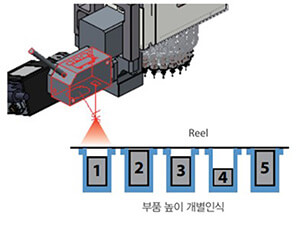

Height sensor

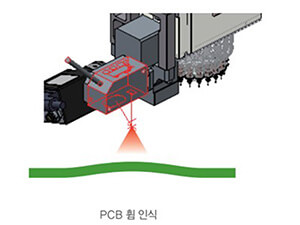

Captures the component using a height sensor and automatically corrects differences in installation height due to PCB warpage.

Easy to operate:

Panoramic View Function

Since large components are not displayed on the same screen, it is difficult to adjust their pick-up or placement position on the PCB. To eliminate such inconveniences, a panoramic viewing function has been added, allowing you to view large components in several stages.

Trolleys for group change of feeders and automatic pallet change system

To the left of the automatic pallet changing system,   you can additionally install a fluxing unit or 7 8 mm feeders. In addition, the automatic pallet changing system can be replaced very quickly with a trolley for group changing of feeders.

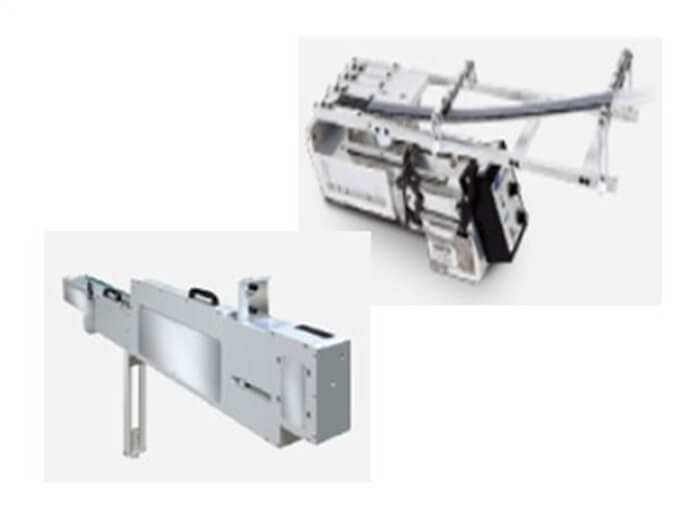

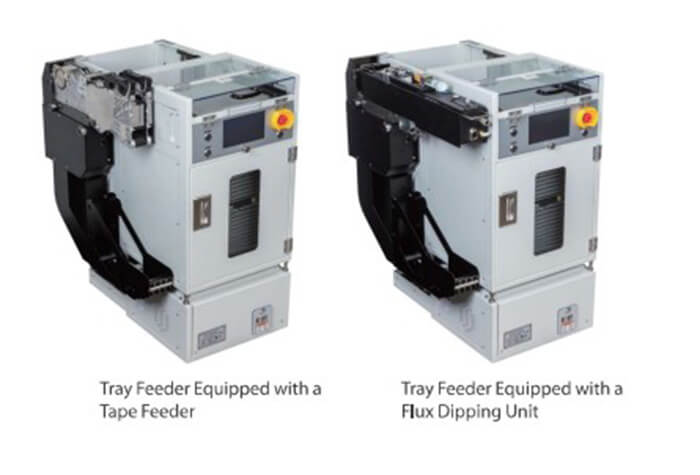

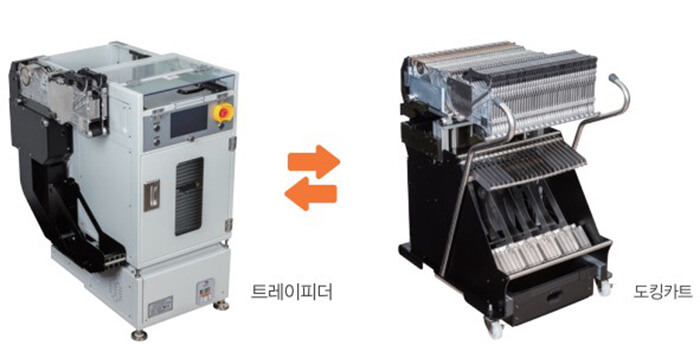

 Tray feeder Docking trolley

BELT FEEDERS

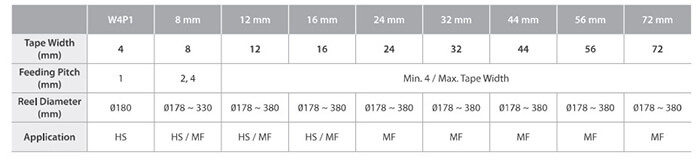

Tape width (mm) — Tape width (mm)

Feeding pitch (mm) - Feed pitch (mm)

Reel diameter (mm) — Reel diameter (mm)

TYPES OF FEEDERS

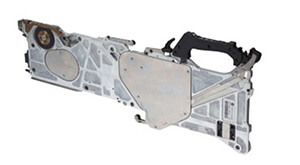

HM Feeder (new 8mm HM feeder reduces feed time by approximately 24% compared to existing feeders).

Feeder for pencil cases

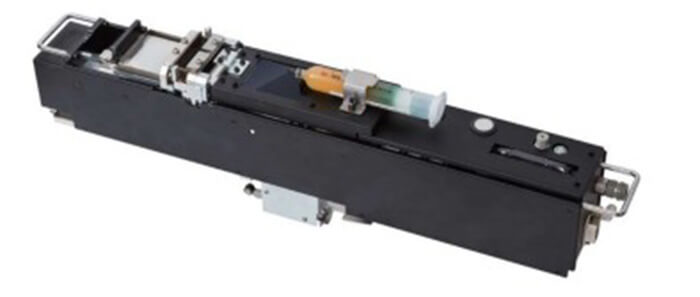

Device for applying flux (Fluxer)

Distributes flux using a sliding method, providing high speed and high accuracy.

Pallet feeder
