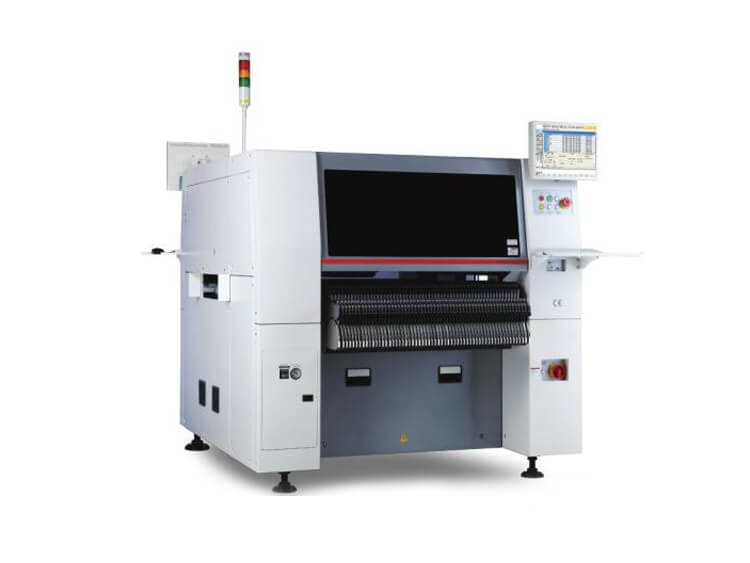

Hanwha SM471 Plus pick and place machine

Component Range:0402(01005
Patch speed 78,000 CPH
2 Gantry x 10 Spindles/Head
weight 1820KG
Product description: Hanwha SM471 Plus Pick and Place Machine,Component Range:0402 above, Patch speed 78,000 CPH,2 Gantry x 10 Spindles/Head, weight 1820KG

Hanwha SM471 Plus Pick and Place Machine

Hanwha SM471 Plus pick and place machine

The Hanwha SM471 Plus pick and place machine is a high-speed mounting mahcine equipped with 10 axes for each mount head and dual-boom.

high-performance newer flying camera placement machine that delivers world-class top speeds of 78,000 CPH.

0402(01005")~14mm(h12mm) can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

Dual Lane System

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement modes according to production characteristics.

Electrically Driven High Speed and High Accuracy

Specifications	SAMSUNG SMT pick and place machine
Model Name	SM471plus	SM481plus	SM482plus
Alignment	Flying Vision	Flying Vision+stage vision	Flying Vision+stage vision
Spindles	10 Spindles × 2 Gantries	10 Spindles × 1 Gantry	6 Spindles × 1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)	Max. 510 × 460(Standard)	Max. 460 × 400(Standard)	Max. 460 × 400(Standard)
Applicable PCB(L × W)	Max. 610 × 460(Option)	Max. 1500 × 460(Option)	Max. 1200 × 510(Option)
Dimension(L.D.H)	1650×1690×1458	1650×1680×1530	1650×1680×1458
Mass(Kg)	Approx. 1820	Approx. 1655	Approx. 1600

Keyword:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
