Hanwha SM481 PLUS Chip Mounter

10 Spindles × 1 Gantry
Component available: 0402 ~ 42mm(H 15mm)
Max PCB: 460 × 400mm
Speed:40,000CPH
Product description: Hanwha SM481 PLUS Pick and Place Machine 10 Spindles × 1 Gantry, Component available: 0402 ~ 42mm(H 15mm), MaxPCB: 460 × 400mm, Speed:40,000CPH

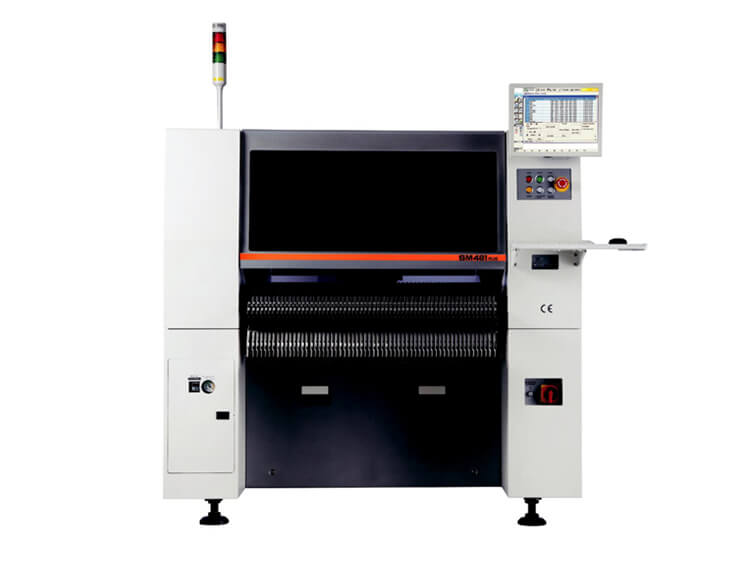

Hanwha SM481 PLUS Chip Mounter

SM481 Plus pick and place machine realizes the highest-speed placement of the TECHWIN patented identification method of the medium-speed machine, namely the on the Fly identification method, which can achieve 40,000CPH of Chip components and unit mounting time of QFP components of 1.1 seconds (each is Optimum ) High-speed placement. The One-Gantry structure uses a 10 Nozzle high-speed keyboard head, which can be operated with the least manpower using one side of the device. It can support 1,500mm long board, and it has the strongest PCB correspondence ability in SM series.

Specifications	SAMSUNG SMT pick and place machine
Model Name	SM471plus	SM481plus	SM482plus
Alignment	Flying Vision	Flying Vision+stage vision	Flying Vision+stage vision
Spindles	10 Spindles × 2 Gantries	10 Spindles × 1 Gantry	6 Spindles × 1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ

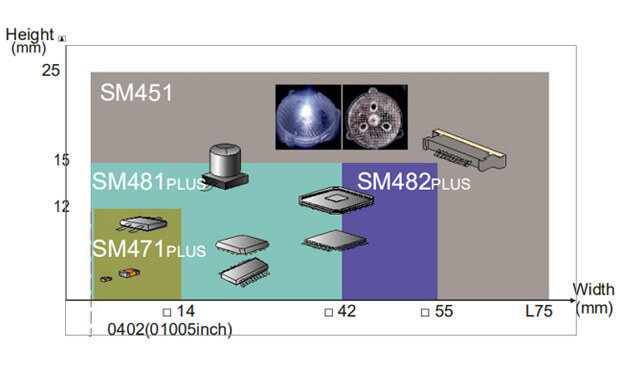

Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)	Max. 510 × 460(Standard)	Max. 460 × 400(Standard)	Max. 460 × 400(Standard)
Applicable PCB(L × W)	Max. 610 × 460(Option)	Max. 1500 × 460(Option)	Max. 1200 × 510(Option)
Dimension(L.D.H)	1650×1690×1458	1650×1680×1530	1650×1680×1458
Mass(Kg)	Approx. 1820	Approx. 1655	Approx. 1600
