Heating Zones: Top 13 / Bottom 13
PCB Width:50 - 560 mm
Cool Zones: 3 Top
length: 590cm
Product description: Heller 1913 MK7 SMT Reflow Oven, Heating Zones: Top 13 / Bottom 13, PCB Width:50 - 560 mm, Cool Zones: 3 Top, length: 590cm

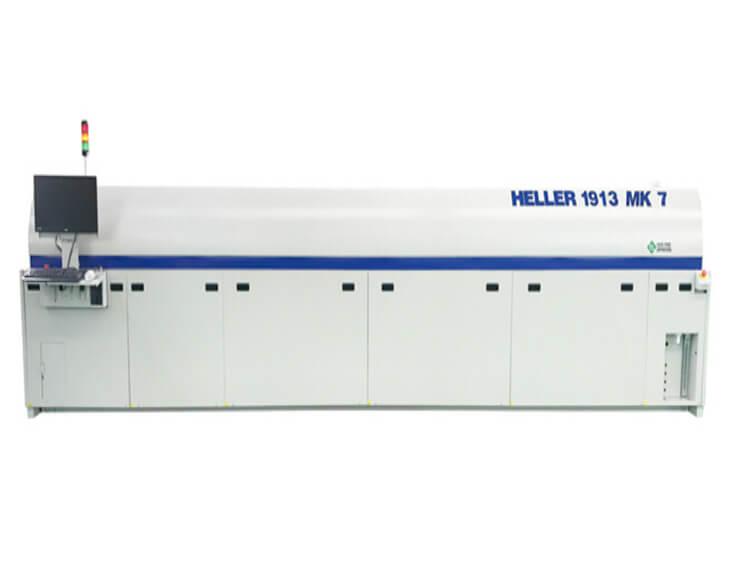

Heller 1913 MK7 SMT Reflow Oven
Heller 1913 MK7 SMT Reflow Oven
The 1913 MK7 is a high volume reflow oven with 13 heated zones and belt speeds up to 1.88m/min. The 1913MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options.
Built-in Thermal Monitoring
Nitrogen Capable to < 100 ppm
Energy Management System
Virtually No Maintenance
10” Wide Heater Modules
Model | 1913MK7 (Air) | 1913MK7 (Nitrogen) |
Electric Supply | ||
Power Input (3 Phase) Standard | 480 volts | 480 volts |
Breaker Size | 100 amps @ 480v | 100 amps @ 480v |
kW | 9 - 15 Continuous | 9 - 15 Continuous |
Typical Run Current | 25 - 35 amps @ 480v | 25 - 35 amps @ 480v |
Optional Power Inputs Available | 208/240/380/400/415/440/480 VAC | 208/240/380/400/415/440/480 VAC |
Frequency | 50/60 Hz | 50/60 Hz |
Sequential Zone Turn On | S | S |
Dimensions | ||
Overall Oven Dimensions | <span font-size:9.5pt;"="" style="box-sizing: border-box;color: rgb(0, 0, 0);font-family: Arial">232" (590cm) L x 60” (152cm) W x57” (144cm) H | <span font-size:9.5pt;"="" style="box-sizing: border-box;color: rgb(0, 0, 0);font-family: Arial">232" (590cm) L x 60” (152cm) W x57” (144cm) H |
Typical Net Weight | 4898 lbs. (2220 kg) | 5560 lbs. (2520 kg) |
Typical Shipping Weight | 6266 lbs. (2840 kg) | 6928 lbs. (3140 kg) |
Typical Shipping Dimension | 620 x 185 x 185 cm | 620 x 185 x 185 cm |
Computer Control | ||
AMD or Intel Based Computer | S | S |
Flat Screen Monitor w/Mount | S | S |
Windows Operating System | Windows 10 Home | Windows 10 Home |
Auto Start Software | S | S |
Data Logging | S | S |
Password Protection | S | S |
Inert Atmosphere | ||
Minimum PPM Oxygen | - | 10-25 PPM* |
Waterless Cooling w/ Flux | ||
Typical Nitrogen Consumption | - | 500 - 700 SCFH ** |
Additional Features | ||
KIC Profiling Software | S | S |
Signal Light Tower | S | S |
Powered Hood Lift | S | S |
Five (5)Thermocouple Profiling | S | S |
Mesh Belt Conveyor | ||
Height From Floor | 36.6" + 2.4" (93 cm + 6 cm) | 36.6" + 2.4" (93 cm + 6 cm) |
Maximum PCB Width | 22" (56 cm) | 22" (56 cm) |
Space Required Between PCB's | 0.0" (0.0 cm) | 0.0" (0.0 cm) |
Conveyor Length On-Load | 18" (46 cm) * | 3" (7.5 cm) * |
Conveyor Length Off-Load | 18" (46 cm) * | 3" (7.5 cm) * |
Heated Tunnel Length | 140" (355 cm) | 140" (355 cm) |
Process Clearance Above Mesh Belt | 2.3" (5.8 cm) | 2.3" (5.8 cm) |
Mesh Belt Pitch | 0.5" (1.27 cm) | 0.5" (1.27 cm) |
Maximum Conveyor Speed | 74"/Min (188 cm/min.) | 74"/Min (188 cm/min.) |
Conveyor Direction Left to Right | S | S |
Conveyor Direction Right to Left | O | O |
Conveyor Speed Control | Closed Loop | Closed Loop |
Edge Hold Conveyor System Option | ||
Height from Floor – Standard | 37.8" ±2.4" (96 cm ± 6 cm) | 37.8" ±2.4" (96 cm ± 6 cm) |
Height from Floor – Optional | 35.4" ± 2.4" | 35.4" ± 2.4" |
Clearance Above & Below Conveyor Pins | 1.15" (2.9 cm) | 1.15" (2.9 cm) |
Length of PCB Support Pins | .187" (4.75 mm) | .187" (4.75 mm) |
3 mm long support pins | O | O |
Minimum/Maximum Board Width | 2" – 22" (5 – 56 cm) | 2" – 22" (5 – 56 cm) |
Power Width Adjustment | S | S |
