Theoretical speed 23000PCS / H
Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM
weight 1600KG
Size: 1700mm × 1300mm × 1600mm
Product description: High-speed vertical Inserter plug-in machine RGS, Theoretical speed 23000PCS / H, Lead span Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM, weight 1600KG, Size: 1700mm × 1300mm × 1600mm

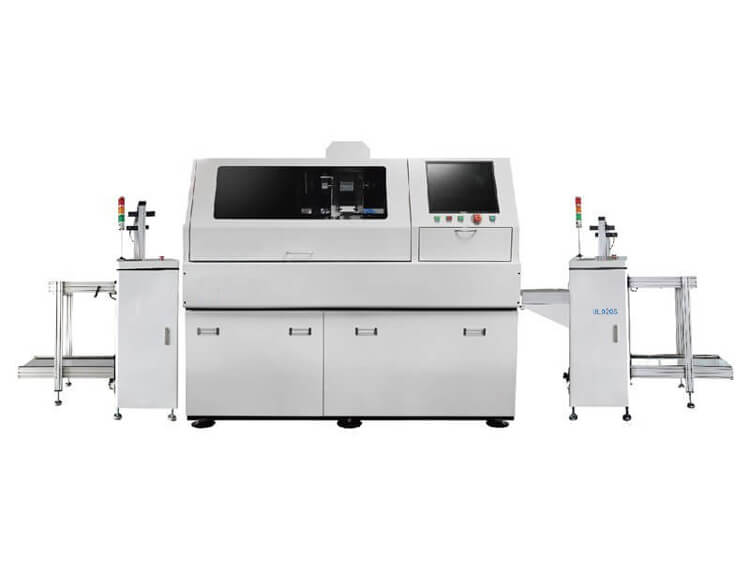

High-speed vertical Inserter plug-in machine RGS
Hig High-speed vertical Inserter plug-in machine RGS
Computerized,Chinese&English interface,Convenient & user friendly
Intensive insertion mode,0-360°with 1°increment
Imported precision ball screw and AC servo motor drive,Positioning
accuracy＜0.001mm
Machine vision system,improve position alignment,Muti fiducials ,
maintain accuracy of insertion
USB port for data transmission
High speed up to 22000 cph,greatly increased 20% compared with last
generation machine
Maximum of 4 lead span capability
In-line production capability
Component pressing by connecting rod (High Stability)
Component feeding by AC servo motor
Cutting & clinching by servo motor (Adjustable)
Theoretical speed | 23000PCS / H |
Insertion direction | 360 in 1 increments |
Lead span | Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM (optional) |
Substrate size | Minimum 50MM * 50MM, maximum 350MM * 280MM |
Substrate thickness | 0.79 ~ 2.36MM |
Component specifications | The maximum height is 23MM and the maximum diameter is 13MM |
Component types | Capacitors, transistors, triodes, LED lights, key switches, resistors, connectors, coils, potentiometers, fuse holders, fuses and other vertical taping packaging materials. |
Component Lead Shear Angle Length | 1.2 ~ 2.2MM (adjustable) |
Component lead angle | 10-35 (adjustable) |
Machine size (length * width * height) | Host 1700mm × 1300mm × 1600mm + (10 stations) 1200mm × 1450mm × 1200mm |
Machine weight | 1600KG |
Use power / power | 220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.6KW (energy-saving) |
System protection | Uninterruptible power supply (UPS) configuration, can run for 15 minutes after power failure |
Air pressure / gas consumption | 0.6MPA / 0.3m3 / min |
Machine noise | Less than 65 dB |
Hole position correction method | Image vision system, multi-point MARK vision correction |
Drive System | AC servo, AC motor |
Data entry method | USB interface input (EXCEL file format) |
Control System | Chinese operation interface (WINDOWS system control platform) Dell LCD monitor |
Circuit board conveying method | Fully automatic (optional transport direction) |
h-speed vertical Inserter plug-in machine RGS
Computerized,Chinese&English interface,Convenient & user friendly
Intensive insertion mode,0-360°with 1°increment
Imported precision ball screw and AC servo motor drive,Positioning
accuracy＜0.001mm
Machine vision system,improve position alignment,Muti fiducials ,
maintain accuracy of insertion
USB port for data transmission
High speed up to 22000 cph,greatly increased 20% compared with last
generation machine
Maximum of 4 lead span capability
In-line production capability
Component pressing by connecting rod (High Stability)
Component feeding by AC servo motor
Cutting & clinching by servo motor (Adjustable)
Theoretical speed | 23000PCS / H |
Insertion direction | 360 in 1 increments |
Lead span | Double pitch 2.5 / 3.5 / 5.0 / 7.5 / 10.0MM (optional) |
Substrate size | Minimum 50MM * 50MM, maximum 350MM * 280MM |
Substrate thickness | 0.79 ~ 2.36MM |
Component specifications | The maximum height is 23MM and the maximum diameter is 13MM |
Component types | Capacitors, transistors, triodes, LED lights, key switches, resistors, connectors, coils, potentiometers, fuse holders, fuses and other vertical taping packaging materials. |
Component Lead Shear Angle Length | 1.2 ~ 2.2MM (adjustable) |
Component lead angle | 10-35 (adjustable) |
Machine size (length * width * height) | Host 1700mm × 1300mm × 1600mm + (10 stations) 1200mm × 1450mm × 1200mm |
Machine weight | 1600KG |
Use power / power | 220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.6KW (energy-saving) |
System protection | Uninterruptible power supply (UPS) configuration, can run for 15 minutes after power failure |
Air pressure / gas consumption | 0.6MPA / 0.3m3 / min |
Machine noise | Less than 65 dB |
Hole position correction method | Image vision system, multi-point MARK vision correction |
Drive System | AC servo, AC motor |
Data entry method | USB interface input (EXCEL file format) |
Control System | Chinese operation interface (WINDOWS system control platform) Dell LCD monitor |
Circuit board conveying method | Fully automatic (optional transport direction) |
