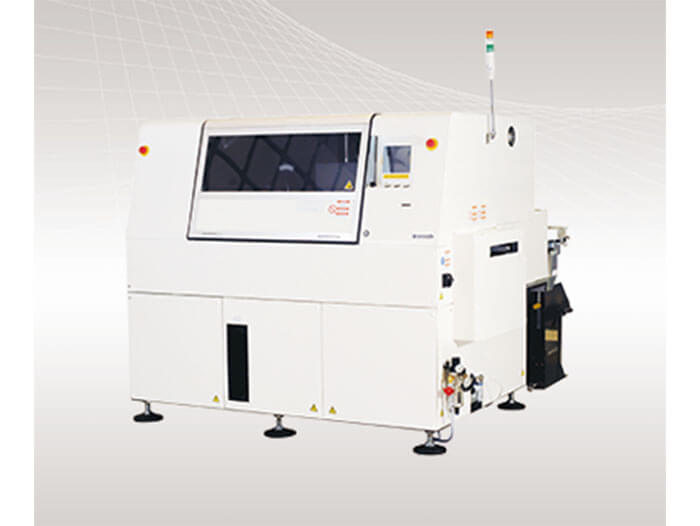

Panasonic Insert Plug-in machine RL132

Panasonic Insert Plug-in machine RL132
max. speed 0.14 s/component
Theoretical speed: 25,700 CPH
weight: about 1750kg
Body size: W2104 * D2183 * H1575mm

Panasonic Insert Plug-in machine RL132

Panasonic Insert Plug-in machine RL132 high-speed radial lead component insertion machine offers generation-ahead technology in a spatially-efficient footprint.

The RL132's combination of 25,700 CPH (.14s/component) insertion rates, board processing sizes up to 650 x 381mm, a 33% reduction in PCB transfer time, up to 18% reduction in electrical and air consumption per insertion and an improved perishable parts lifespan results in a very low cost of ownership.

This through-hole machine features a 4 pitch span and is configurable with 40 or 80 components inputs. Meanwhile, its dual split carriage enables machine function at exchange mode and parts replenishment during production. Plus exhaust detection and full auto-recovery allow for non-stop productivity.

High-speed radial insertion at 25,700 CPH with 40 or 80 inputs.
Wide pitch range encompassing 2.5/5.0/7.5 and 10mm pitch in a common platform- eliminating the need for post insertion manual placements of 10 mm pitch components
Auto-recovery and part exhaust detection
Enhanced programmable T-Clinch technology ensures interference-free insertions by eliminating shorts on underside layout
Wide component range up to 23mm in height with 0° to 359° insertion angles

Model ID	RL132
Model No.	NM-EJR5A
PCB Dimensions (mm)	L 50 mm x W 50 mm to L 508 mm x W 381 mm
Maximum Speed	0.14 s/component
No. of Component Inputs	40
Applicable Components	Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	360° direction by 1° increment
Electric Source *	3-phase AC 200 V, 3.5 kVA [*1]
Pneumatic Source	0.5 MPa, 80 L /min (A.N.R.)
Dimensions (mm) *	W 2,104 x D 2,183 x H 1,575 [*2]
Mass *	1,750 kg [*3]
Model No.	NM-EJR6A
PCB Dimensions (mm)	L 50 x W 50 to L 508 x W 381
Maximum Speed	0.14 s/component
No. of Component Inputs	80 (Connection mode), 40 + 40 (Exchange mode)
Applicable Components	Pitch 2.5/ 5.0 mm (standard), 7.5 mm and 10 mm (option), Resistor, Electrolytic capacitor, Ceramic capacitor
PCB Exchange Time	~2s to about 4s (Room temperature 20℃)
Insertion Direction	360° direction by 1° increment
Electric Source *	3-phase AC 200 V, 3.5 kVA [*1]
Pneumatic Source	0.5 MPa, 80 L /min (A.N.R.)
Dimensions (mm) *	W 3,200 x D 2,417 x H 1,575 [*2]
Mass *	2,350 kg [*3]

*Values such as maximum speed may vary depending on operating conditions.
*Please refer to the ‘‘Specification’’ booklet for details.
[*1]: Compatible with 3-phase 220 / 380 / 400 / 420 / 480 V
[*2]: Excluding signal tower
[*3]: Only for main body
