Horizontal Plug-in machine

Theoretical speed 22000PCS / H
Component span Double hole distance 5MM ~ 20MM
weight 1600KG
Dimension: 1700mm × 1300mm × 1600mm
Product description: Horizontal Plug-in machine, Theoretical speed 22000PCS / H, Component span Double hole distance 5MM ~ 20MM, weight 1600KG, Dimension: 1700mm × 1300mm × 1600mm

Horizontal Plug-in machine

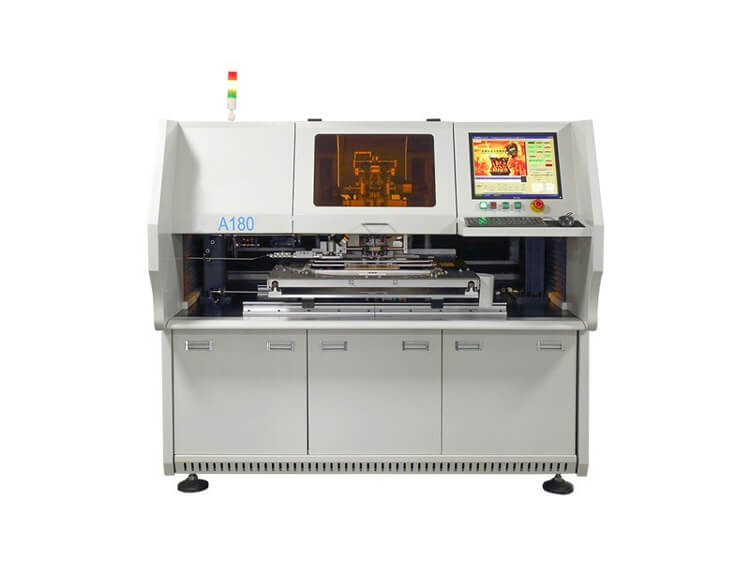

Offline horizontal Inserter plug-in machine A180 is a new generation of horizontal interconnect interpolator independently developed and produced by our company.The essence of horizontal interpolation machine is integrated into one, high speed, high precision, high performance to achieve non-stop refueling, unique servo control system, can Greatly reduce the amount of jumper, easy to understand the operation platform, the realization of the man-machine interface dialogue. The union of practical experience and scientific theory, bigGreatly improved product quality and production efficiency.

Theoretical speed	22000PCS / H
Poor insertion rate	Less than 200PPM
Insertion direction	Parallel 0 , 90 , 180 , 270
Component span	Double hole distance 5MM ~ 20MM (specially inserted jumper 5MM ~ 30MM)
Substrate size	Minimum 50MM * 50MM, maximum 450MM * 450MM
Substrate thickness	0.79 ~ 2.36MM
Component types	Capacitor, transistor, diode, resistor, fuse, etc.
Jumper (JW)	Independent delivery method.0.5mm ~ 08MM tinned copper wire
Component Lead Shear Angle Length	1.0 ~ 2.2MM (adjustable)
Component lead angle	5-30 (adjustable)
Machine size (length * width * height)	Host 1700mm × 1300mm × 1600mm + (10 stations) 1200mm × 1450mm × 1200mm
Machine weight	1600KG
Use power / power	220V, AC (single-phase) 50 / 60HZ, 2.0KVA / 1.5KW (energy-saving)
System protection	Uninterruptible power supply (UPS) configuration, can run for 15 minutes after power failure
Air pressure / gas consumption	0.6MPA / 0.3m3 / min
Machine noise	Less than 65 dB
Hole position correction method	Machine vision system, multi-point MARK vision correction
Drive System	AC servo, AC motor
Data entry method	USB interface input (EXCEL file format)
Control System	Chinese and English interface, window platform, LCD display
Operation mode	Full / Semi-Auto / Manual
Worktable operation mode	Clockwise and counterclockwise
Circuit board conveying method	Offline / Online (optional)
