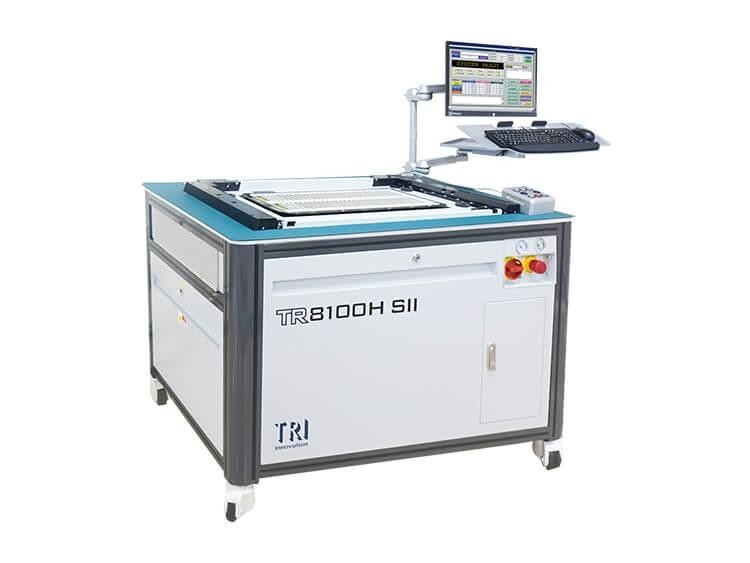

In-Circuit Tester TRI ICT TR8100H SII

Weight: 390 kg
Dimension: 1150 x 850 x 800 mm
Product description: In-Circuit Tester TRI ICT TR8100H SII, Weight: 390 kg, Dimension: 1150 x 850 x 800 mm

In-Circuit Tester TRI ICT TR8100H SII

The TR8100H SII is the latest ICT with High Throughput and High Accuracy for large and complex PCBAs. The TR8100H SII is the top-of-the-line board test system targeting the low-voltage testing market. TR8100H SII's vacuum fixture system ensures full pin contact, and with up to 11,088 pins digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. The ICT has built-in self-diagnostics to ensure long-term testing reliability.

• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Built-in Self Diagnostics function
• High-Accuracy Measurement and Testing
• Friendly UI, easy program development

Tester Specifications
Analog test points	TR8100H SII: 7056
Analog test points	TR8100HL SII: 11088
Operating System	Microsoft® Windows compatible PC, Windows 10
Fixture Type	Vacuum type
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement, frequency
	Component R/L/C measurement
	Synthesized Arbitrary Waveform Generator
	TestJet vectorless open circuit detection
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
	On-board Flash, EEPROM, MAC programming
Optional Components
Analog Hardware	Fixture Conversion Kits for Teradyne, GenRad
Digital Testing	APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	Serial Test Controller (STC) Programming
	DPS Programmable DUT Power supply:
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	ToggleScan Test
Yield Management System	YMS 4.0
Dimensions
WxDxH	TR8100H SII: 1150 x 850 x 800 mm
WxDxH	TR8100HL SII: 1400 x 850 x 800 mm
Weight	TR8100H SII: 390 kg
Weight	TR8100HL SII: 450 kg
