In-Circuit Tester TRI ICT TR8100LV

Weight: 390 kg
Dimension: 1150 x 850 x 800 mm
Product description: In-Circuit Tester TRI ICT TR8100LV, Weight: 390 kg, Dimension: 1150 x 850 x 800 mm

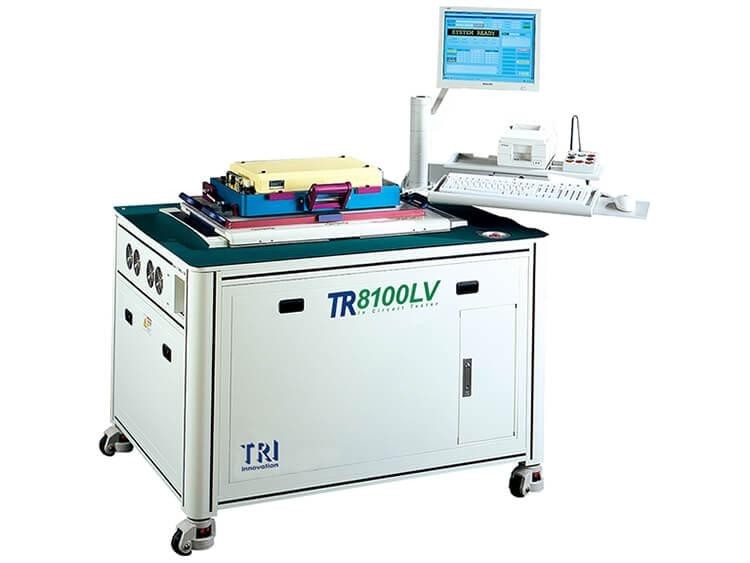

In-Circuit Tester TRI ICT TR8100LV

Designed for testing large and complex PCBAs, the TR8100LV is TRI's top-of-the-line board test system targeting the low-voltage testing market. TR8100LV's vacuum system ensures full pin contact and with up to 3,584 pin digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development.

• Digital 1:1 driver/receiver per pin architecture design
• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Friendly UI with fast and easy program development

Tester Specifications
Analog/hybrid test points	TR8100LV: 3584
Analog/hybrid test points	TR8100LLV: 5632
Operating System	Microsoft® Windows compatible PC, Windows 10
Fixture Type	Offline press or vacuum type fixture
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement, frequency
	Component R/L/C measurement
	Synthesized Arbitrary Waveform Generator
	TestJet vectorless open circuit detection
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
	On-board Flash, EEPROM, MAC programming
Optional Components
Analog Hardware	Fixture Conversion Kits for Teradyne, GenRad
Digital Testing	Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
Digital Testing	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Yield Management System	YMS 4.0
Dimensions
WxDxH	TR8100LV: 1150 x 850 x 800 mm
WxDxH	TR8100LLV: 1550 x 850 x 800 mm
Weight	TR8100LV: 390 kg
Weight	TR8100LLV: 450 kg
