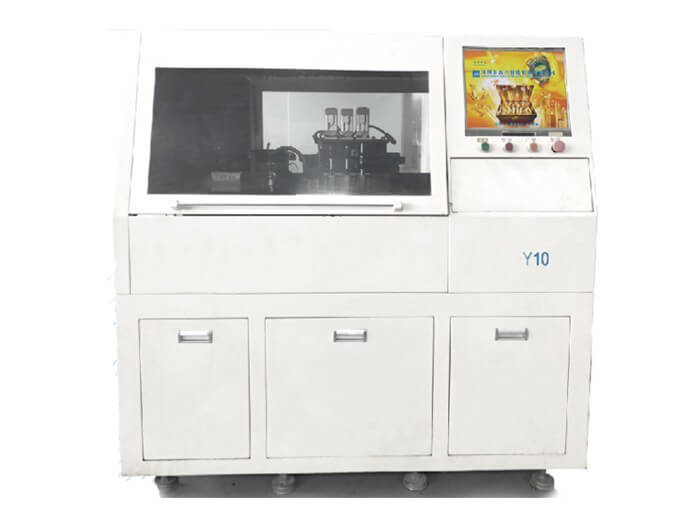

Inline key switch Inserter plug-in machine Y10

Theoretical speed: 12,000cph
Power requirements: AC220V
weight: about 750kg
Body size: L1800 * W1450 * H1500mm
Product description: Inline key switch Inserter plug-in machine Y10, Theoretical speed: 12,000cph, Power requirements: AC220V, weight: about 750kg, Body size: L1800 * W1450 * H1500mm

Inline key switch Inserter plug-in machine Y10

Y10 Inserter machine is a new generation of horizontal interconnect interpolator independently developed and produced by our company.The essence of horizontal interpolation machine is integrated into one, high speed, high precision, high performance to achieve non-stop refueling, unique servo control system, can Greatly reduce the amount of jumper, easy to understand the operation platform, the realization of the man-machine interface dialogue. The union of practical experience and scientific theory, bigGreatly improved product quality and production efficiency.

Theoretical speed	12,000cph
Plug-in angle	0 -360 , 1 increments
Component foot span	W4.5mmwide; L6.5mm long
Plate height	900mm
Substrate height	0.79 ~ 2.36mm
Rail width	50 ~ 300mm (adjustable)
Type of parts	6 * 6 * H5 four-pin button
Angle of bending feet	45 bending
Body size	Host:L1800 * W1450 * H1500mm
weight	Host:about 750kg
Power requirements	AC220V
Power protection	UPS, 15minutes
Pressure requirements	0.6Mpa
Air consumption	0.3m / min
Ambient temperature	5 ℃ -25 ℃
Noise level	60db
Hole position correction method	Vision system;l Multi-location correction
Drive System	Servo motor
Data entry method	USB Port
Control System	Chinese and English interface
Operation mode	Chinese and English interface, window platform, LCD display
Board way	Fully automatic/ semi-automatic
Programming style	Automatic feed from left to right (optional)
