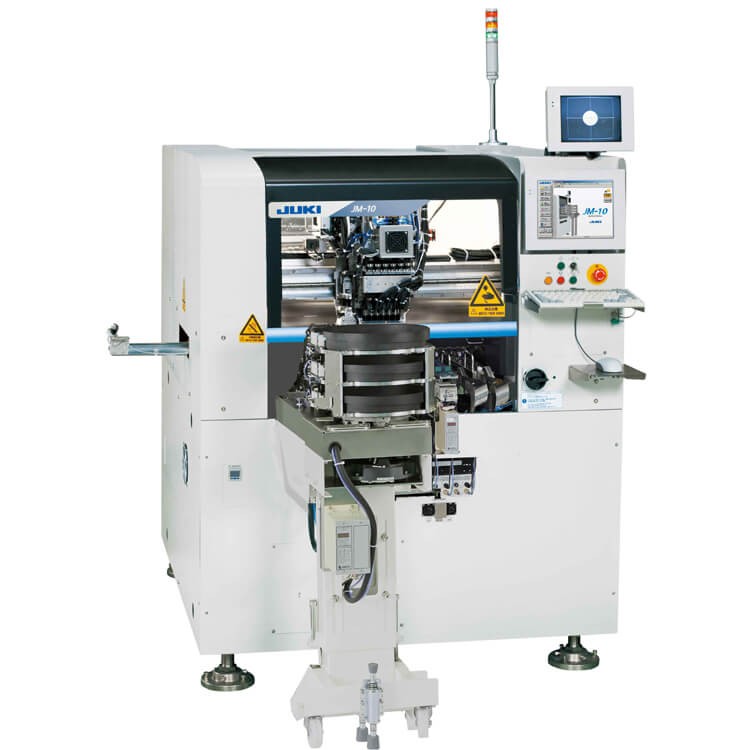

JUKI JM-10 Hybrid Placement Machine

Place Speed: 17,500CPH
Max PCB:410×360mm
Component Size: 0603～33.5mm
weight: 1800KG
Product description: JUKI JM-10 Multi Task Platform Hybrid Placement Machine, Place Speed: 17,500CPH, Max PCB:410×360mm, Component Size: 0603～33.5mm, weight: 1800KG, Dimension:1500*1500mm

JUKI JM-10 Hybrid Placement Machine

Laser sensor for lead detection
Wide variety of feeder types
( Feeders can be customized for specific components )
Lead 90 degree bend function
Lead Correction Unit

Multi Task Platform JM-10
			Ｍ-size board	L-size board
Board Size	Single Clamp		410×250mm	410×360mm
	Double Clamp		-
PCB Weight			max.2kg
Component Height	28mm		○
	55mm		-
Component Size	Laser recognition		0603～33.5mm
	Vision recognition*1	54mm view camera	3mm～33.5mm
		27mm view camera	1005～24mm
Insertion Speed	Vacuum (JUKI Condition）*2		０.８ sec/parts*3
Placement Speed(SMT)	Chip (Optimal）		17,500CPH*3
	IC		4,100CPH*3
Placement Accuracy(SMT)	Laser recognition		±0.05mm（3σ）
	Vision recognition*1		±0.04mm
