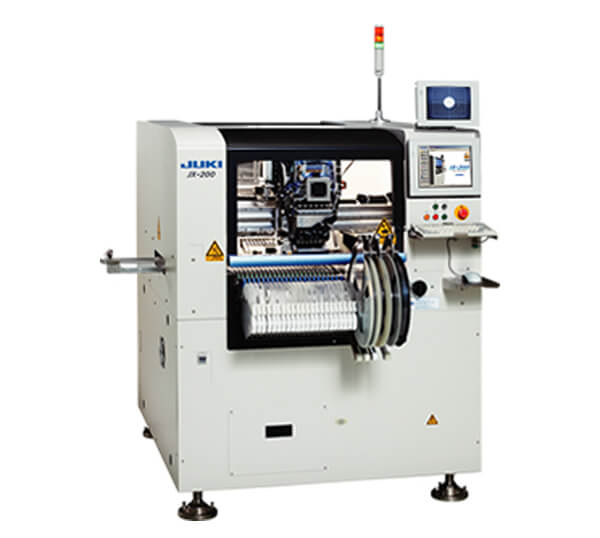

JUKI JX-200 Pick and Place Machine

Max PCB:410mm× 250 mm
Mounting Speed: 18,050CPH
components ranging:0603～33.5mm
Product description: JUKI JX-200 Pick and Place Machine,Max PCB:410mm× 250 mm,Mounting Speed: 18,050CPH, components ranging:0603～33.5mm

JUKI JX-200 Pick and Place Machine

Chip : 18,050CPH(0.199Sec./chip/Optimum）/13,900CPH(IPC9850)
■ IC : 4,400CPH
■ Component size
Laser recognition : 0603 ※2 ～□33.5mm
Vision recognition Standard camera : □3mm～□33.5mm
High-resolution camera (option) : 1.0×0.5mm～□24.0mm
■ Placement accuracy
Laser recognition : ±0.05mm (±3σ)
Vision recognition : ±0.04mm
■ high-speed and high precision placement technology
■ Superior Versatility
■ High Quality Placement Technology
■ Easy and Compact
■ Longer sized PWB in X axis (up to 800 mm × 250 mm) (option)
※2 HMS is required when a 0603 component is placed. (option)

Board size			Min.50 × 50 ～ Max.800*1 × 250mm
Component height	12mm		○
	20mm		○
Component size	Laser recognition		0603*2 ～ □33.5mm
	Visionrecognition	Standard camera	□3mm ～ □33.5mm
		High-resolution camera (option)	1.0 × 0.5mm ～ □24.0mm
Placement speed	Chip	Optimum	0.199Sec./chip (18,050 CPH)
		IPC9850	13,900CPH
	IC		4,400CPH
Placement accuracy	Laser recognition		±0.05mm (±3σ)
	Vision recognition		±0.04mm
Feeder inputs			Max.60 on 8mmT/F

When using Longer sized PWB(800mm) option. (standard specification is Max.410mm)

HMS is required when a 0603 component is placed. (option)
