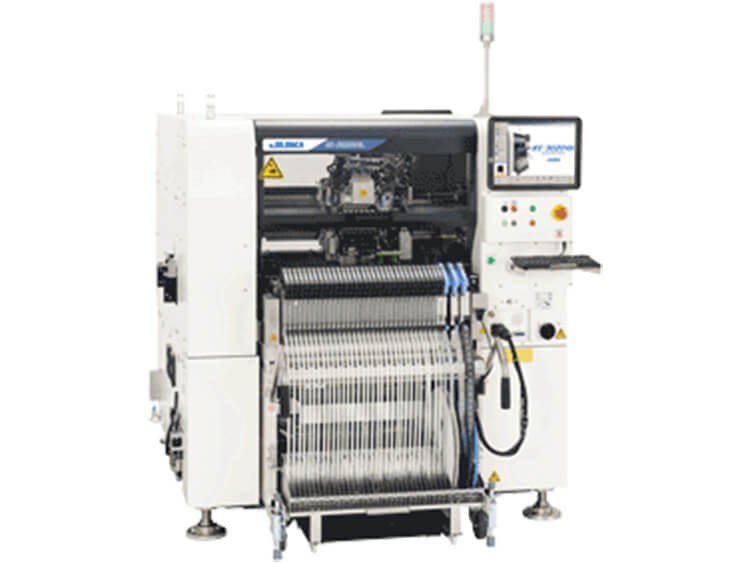

JUKI KE-3020VA Pick and Place Machine

Applicable Components: 0402（01005）
Board size:330×250mm
Feeder inputs:160
placement capacity:20,900CPH
Product description: JUKI KE-3020VA Pick and Place Machine,Board size:330×250mm,Feeder inputs:160,placement capacity:20,900CPH

JUKI KE-3020VA Pick and Place Machine

From 0402(01005) to 74mm square components or 50×150mm

KE-3020VA
One multi-nozzle laser head (6 nozzles) plus
one IC head with CDS sensor (1 nozzle)

The use of electronic double tape feeders enables mounting of a maximum of 160 component types.

MNVC is standard

High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC)

High speed feeding of tray components (Option)

Longer sized PWB in X axis(option)

PoP placement(option)

Board size	M size (330×250mm)		yes
	L size (410×360mm)		yes
	L-Wide size (510×360mm) *1		yes
	XL size (610×560mm)		yes
	Applicability to long PWB (L size)*2		800×360mm
	Applicability to long PWB (L-Wide size)*2		1,010×360mm
	Applicability to long PWB (XL size)*2		1,210×560mm
Component height	12mm		yes
	20mm		yes
	25mm(XL size)		yes
Component size	Laser recognition		0402(01005) ~ 33.5mm×33.5mm
	Vision recognition	Standard camera	3mm ~ 74mm×74mm or 50×150mm
		High-resolution camera	1.0×0.5mm*3 ~ 48mm×48mm or 24×72mm
Placement speed	Chip	Optimum	20,900CPH
		IPC9850	17,100CPH
	IC *4		9,470CPH*5
Placement accuracy	Laser recognition		±0.05 mm (±3σ)
	Vision recognition		±0.03mm(MNVC ±0.04mm)
Feeder inputs			Max.160 in case of 8mm tape (on a Electric double tape feeder)*6

*1 L-Wide size is optional
*2 Applicability to long PWB is optional.
*3 KE-3020VA ： When using high-resolution camera. (option)
*4 Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*5 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
.MNVC is standard in the KE-3020VA.
*6 When using Electric double tape feeder EF08HD.
* PWB size XL will be KE-3020V.
