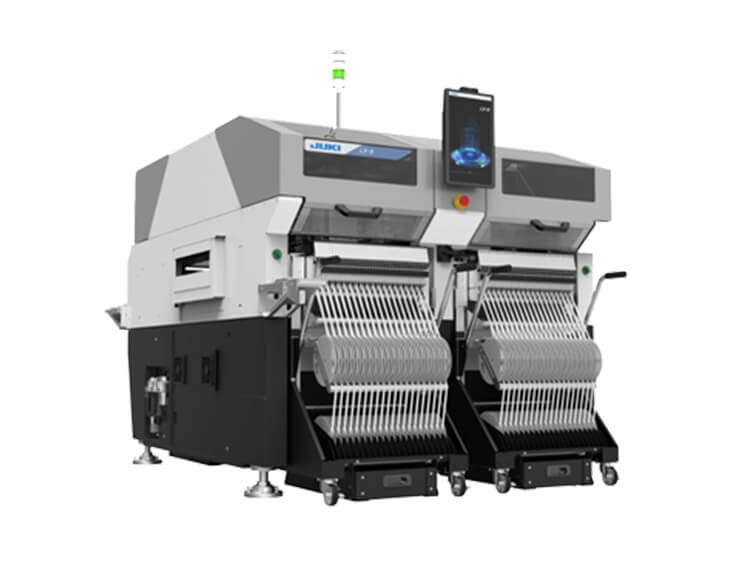

JUKI LX-8 Chip mounter

Applicable Components: 0201
Board size:410×400mm
Feeder inputs:136
placement capacity:105,000CPH
Product description: JUKI LX-8 Chip mounter,Applicable Components: 0201
,Board size:410×400mm,placement capacity:105,000CPH.

JUKI LX-8 Chip mounter

Realization of highly efficient production through high area productivity

New User Interface pursuing ease of use

The number of feeder slots is 160 or more*, which is the largest in its class. Significantly shortens changeover time.

LX-8 allows front-side banks to operate without loss of productivity.

Independent head configuration with minimized tact loss

Components from 0.3mm×0.15mm up to 65 mm square, 10mm×90 mm, or50 mm x 75 mm and up to 25mm tall.

New high accuracy camera for inspection and centering

Reduction of VCS image-recognition times(compare with our equipment)

Integrates seamlessly with the production environment

Advanced Flexible Mounter LX-8
		P20S¹×P20S¹	P20S*¹xTakumi		TakumixTakumi
Board size	Minimum	50×50mm
	Single clamping	410×400mm
	Double clamping*¹	810×400mm*²
Component height		3mm	25mm
Component size	Minimum	0201*¹			03015
	Maximum	□5 ㎜	□65 ㎜ /10 ㎜ ×90 ㎜ /50 ㎜ ×75 ㎜
Placement speed (optimum)		105,000CPH	99,500CPH		94,000CPH
Placement accuracy		±40μm（25μm*³）(Cpk ≧1)		±35μm (Cpk ≧1)*⁴
Feeder capacity	Tape	Max. 136	Max. 148		Max. 160
	Tray*⁵	_	Max. 30		Max. 60
Power		3-phase AC200V (standard) AC200V ～ AC415V (when optional transformer is selected)
Apparent power		2.49kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		50L/min(ANR)
Machine dimensions (WxDxH)⁶		1,600 ㎜ ×1,924 ㎜ ×1,440 ㎜
Mass (approximately)		2,400kg or less

*1 Please contact for detail
*2 Factory default
*3 Image recognition, high-precision mode
*4 For laser recognition
*5 For TR8SR
*6 D dimension does not include the front operation monitor. H dimension does not include signal tower.
