KIC X5 start Thermal Profiler with 7 /9 /12 Channels for Reflow Oven

KIC X5 start Thermal Profiler with 7 /9 /12 Channels for Reflow Oven

KIC X5 start Thermal Profiler with 7 /9 /12 Channels for Reflow Oven

Robust and Compact Hardware with 2 Year Warranty

This new and improved thermal profiler hardware is designed to withstand the roughest and toughest daily handling. In addition, the electronic

circuitry has been changed to tolerate a higher level of voltage spikes
that occur occasionally in some ovens and wave solder machines. KIC is putting its money where its mouth is by offering a standard two year warranty on

this durable profiler.

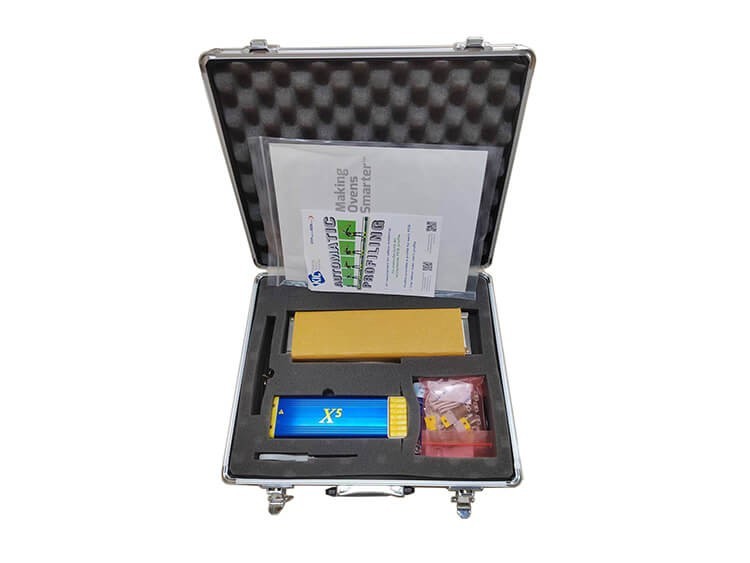

The X⁵™ thermal profiler is available in 7, 9, and 12 channel versions using standard type K thermocouple connectors. Acquiring more data in a small unit is

only the beginning. The X⁵’s industry leading performance provides better data acquisition to precisely identify what is going on with each thermal profile and

process in the factory. Thermal profile data are conveniently transferred to your computer via a USB connection. The X⁵’s RF version transfers the profile data in

 real time to the PC via wireless radio frequency transmitters. Standard AAA batteries power the X⁵ and you have the option of using rechargeable batteries if you

prefer. The X⁵ is also powered via the USB cable when connected to a computer, bypassing the batteries, thus extending the duration of their use.

Data Intelligence Software

The X⁵’s thermal profiling software uses a modern, graphical interface that quickly and intuitively guides you through the task of profiling. All your critical profile

 and process data are measured including slope, peak temperature, time above liquidous, etc. In addition, the software measures the Process Window Index™ (PWI)

statistic. The PWI mathematically and objectively identifies your profile’s ‘fit’ to the established process window. A PWI less than 100 indicates an in-spec profile.

The PWI is lower as your process is centered within the process window. Therefore, the lower your PWI, the deeper in the sweet spot of the process window. The PWI

also instantly reveals where your process or the oven needs to be adjusted. Manual prediction capability comes standard with the X⁵ allowing you to instantly view the

expected change in the profile to changes in the oven setpoints. The X⁵ dual mode includes the passive profiling recording functionality and the active oven setup and

process optimization capability. The Navigator Power™ software feature automates process improvement and equipment/machine optimization for you and ships

 standard with the X⁵. Within seconds, the Navigator Power will identify the single best oven setup based on your choice of 3 optimization criteria:

The X⁵ thermal profiler also comes standard with SPC charting software that helps reveal changes in the profile over time. The X⁵ hardware and software establish a new generation of profiler to improve your equipment’s production quality, productivity, and documentation.

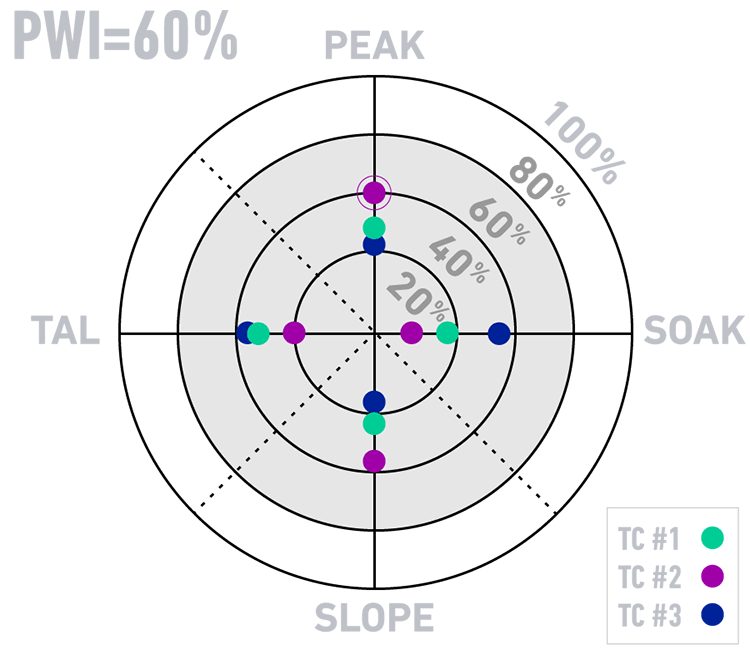

Profiling Reduced to a Single Number

The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the

process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the

process! (See the PWI data sheet for a detailed explanation)
