Demensions:500 x 800 x 1160mm
PCB size: 50x50 - 400x350mm
SMEMA compliant
Width adjustment manually

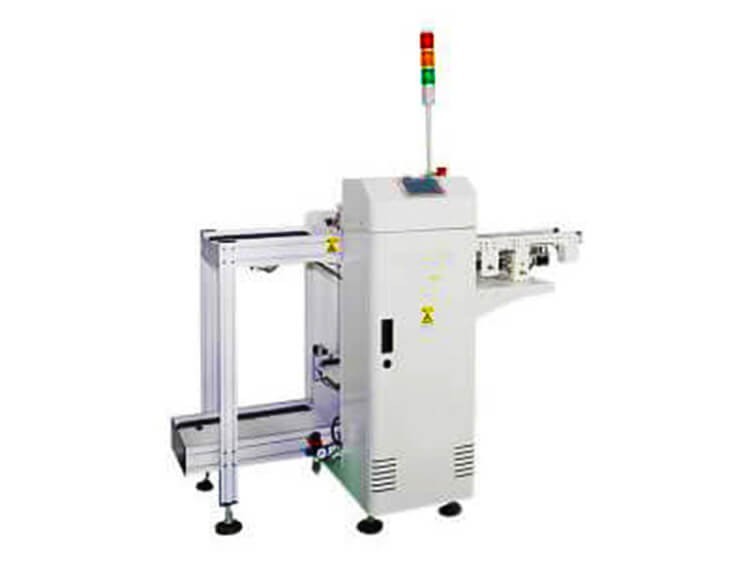

Product description: Automatic PCB Unloader Right → Left Demensions:500 x 800 x 1160mm, PCB size: 50x50 - 400x350mm, SMEMA compliant, Width adjustment manually
PCB loader
PCB loader
Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.
Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.
Main functions and Parameter | ||
Model# | Automatic PCB Unloader Right → Left | |
Item | Name | Description |
1 | Automatic Loader | Dimensions: 1450(L)×680(W)×1650(H)mm |
Special Aluminum alloy guide rails and rubber belt | ||
3 Magazine lifting with screw rod by 90WSPG electric-brake motor | ||
4 Pneumatic PCB clamping structure | ||
5 Magazine dimensions: 300(W)×340(L)×570(H)mm | ||
6 PCB size: 60(W)×60(L)mm--250(W)×300(L)mm | ||
7 Direction: L-R/ R-L | ||
8 Adjustable Lifting distance:10,20,30,40 and 50mm | ||
9 Programmable Siemens PLC and controller | ||
10 PCB Automatic loading to conveyor | ||
11 Touch Panel controlled interface/Buttons interface | ||
12 Working power 0.25KW | ||
13 Power Source: 220v 50HZ | ||
14 Air Source: 4-6MPa | ||
Keyword:
JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.
Shenzhen Qituo electronic Co., Ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Email: sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
